Accu-Chek Compact Plus User Manual

152
Blood glucose testing in a multi-patient setting
Farbe: P 249 – Prüfmittelnummer: 203

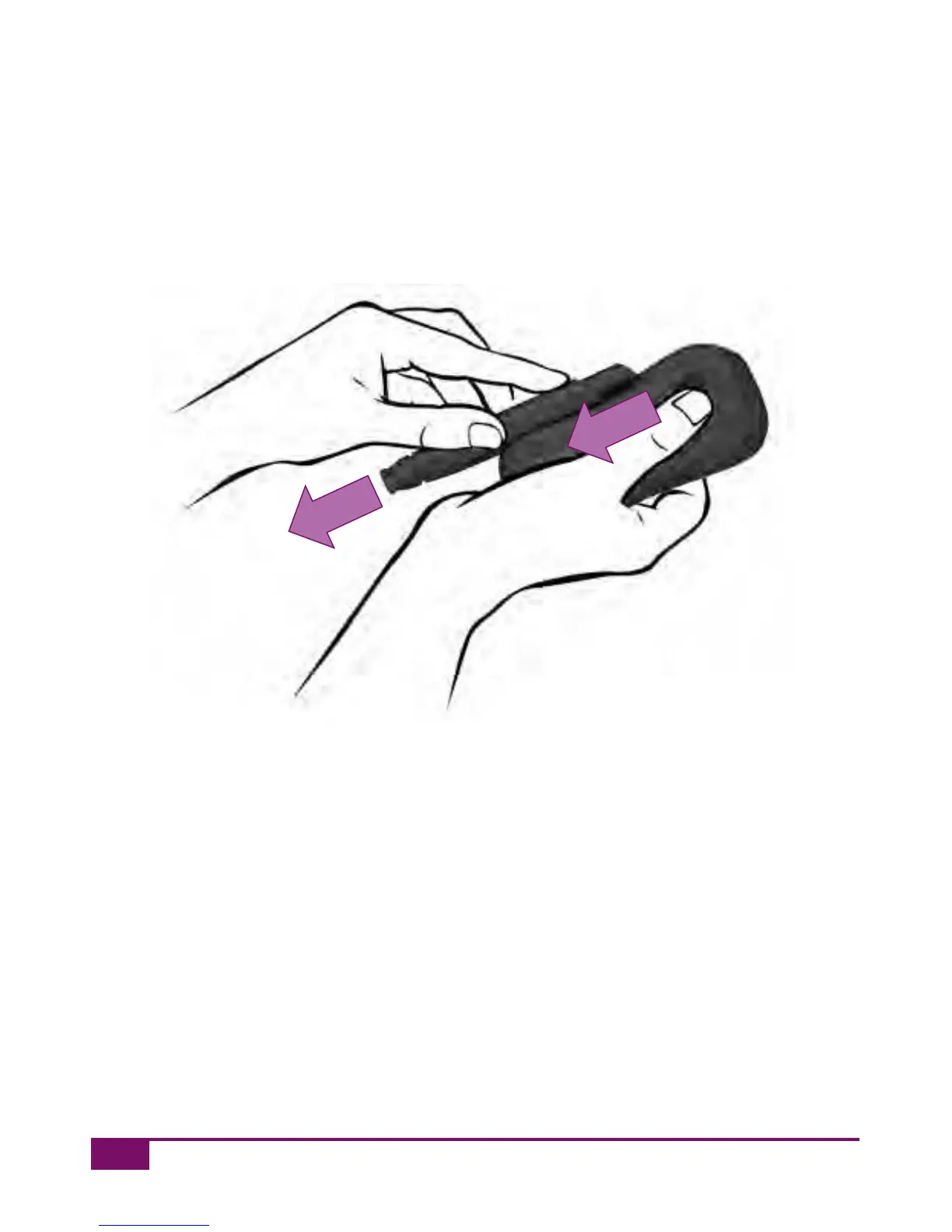

10.1 Replacing the lancing device with a blanking plate
Undock the lancing device from the meter as follows.
 Push the slide button in the direction indicated by the arrow (1) and
hold it there.
 Slide the lancing device out in the direction indicated by the
arrow (2).


man_06919570001_01_EnCan.indd 152 18.01.2013 18:38:53

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
