Accu-Chek Compact Plus User Manual

159
Blood glucose testing in a multi-patient setting
10

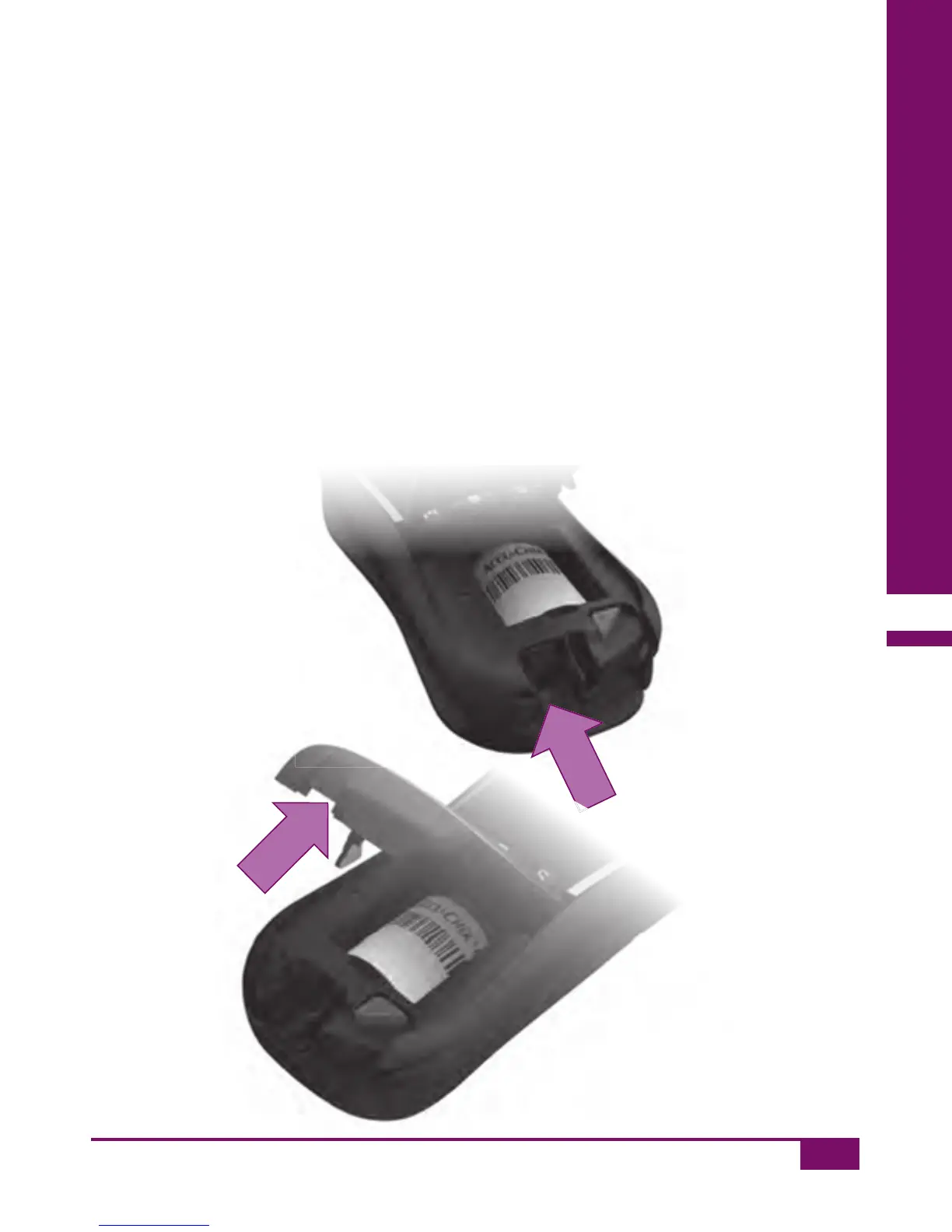

 Hold the meter in your right hand and place the thumb of your left
hand into the recess below the drum compartment cover. Then pull
the drum compartment cover with your fingers slightly to the front
and lift it up.
Once you have opened the drum compartment cover, you will see
beneath it the small measuring window  and have access to the
lower edge of the drum compartment cover .


man_06919570001_01_EnCan.indd 159 18.01.2013 18:38:58

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
