Accu-Chek Compact Plus User Manual

76
Testing blood glucose
Farbe: P 249 – Prüfmittelnummer: 203

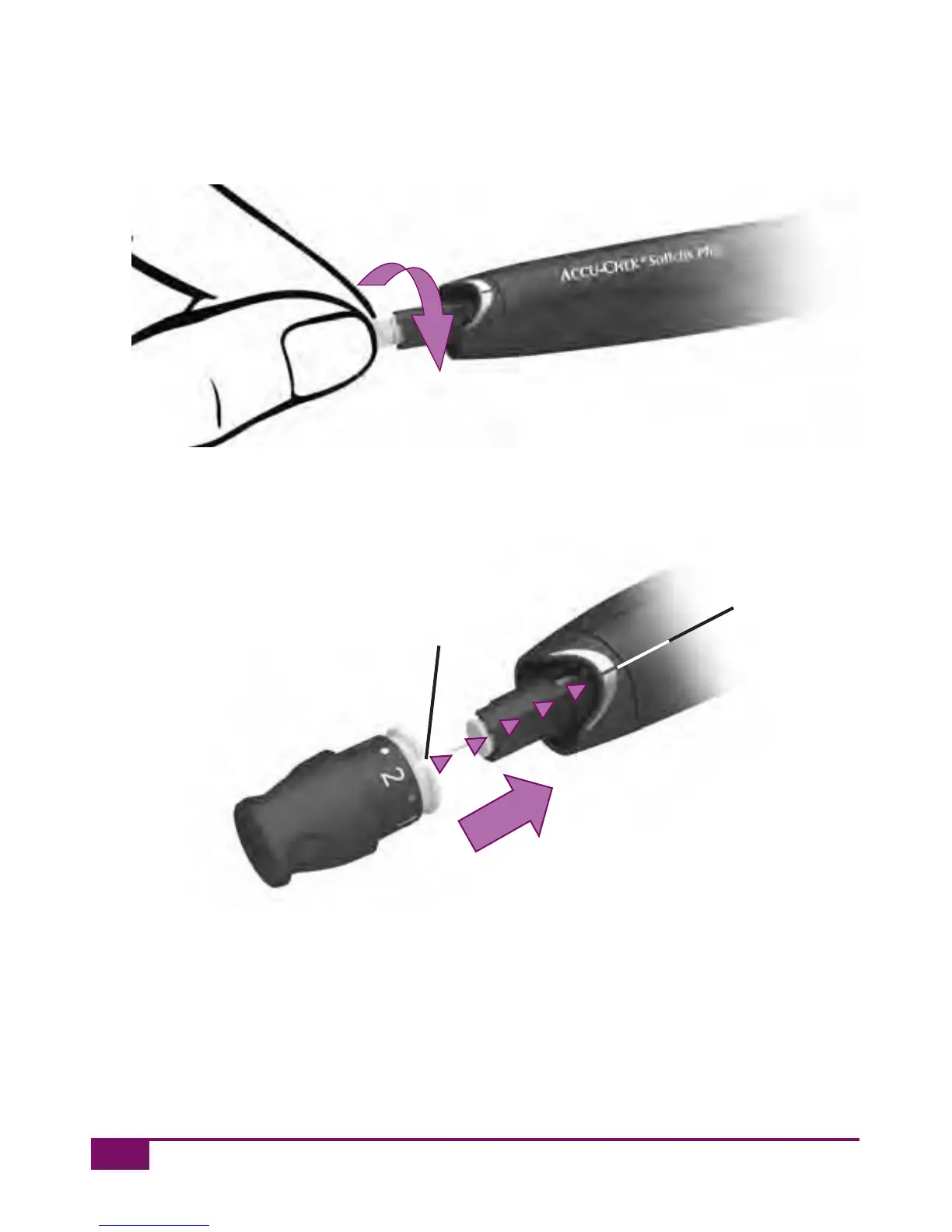

 Remove the protective cap from the lancet with a twisting motion.
 Press the cap back on the lancing device.
The locating notch in the cap (1) must be directly aligned with the
locating line on the lancing device (2). The cap snaps into place with
an audible CLICK.


man_06919570001_01_EnCan.indd 76 18.01.2013 18:38:22

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
