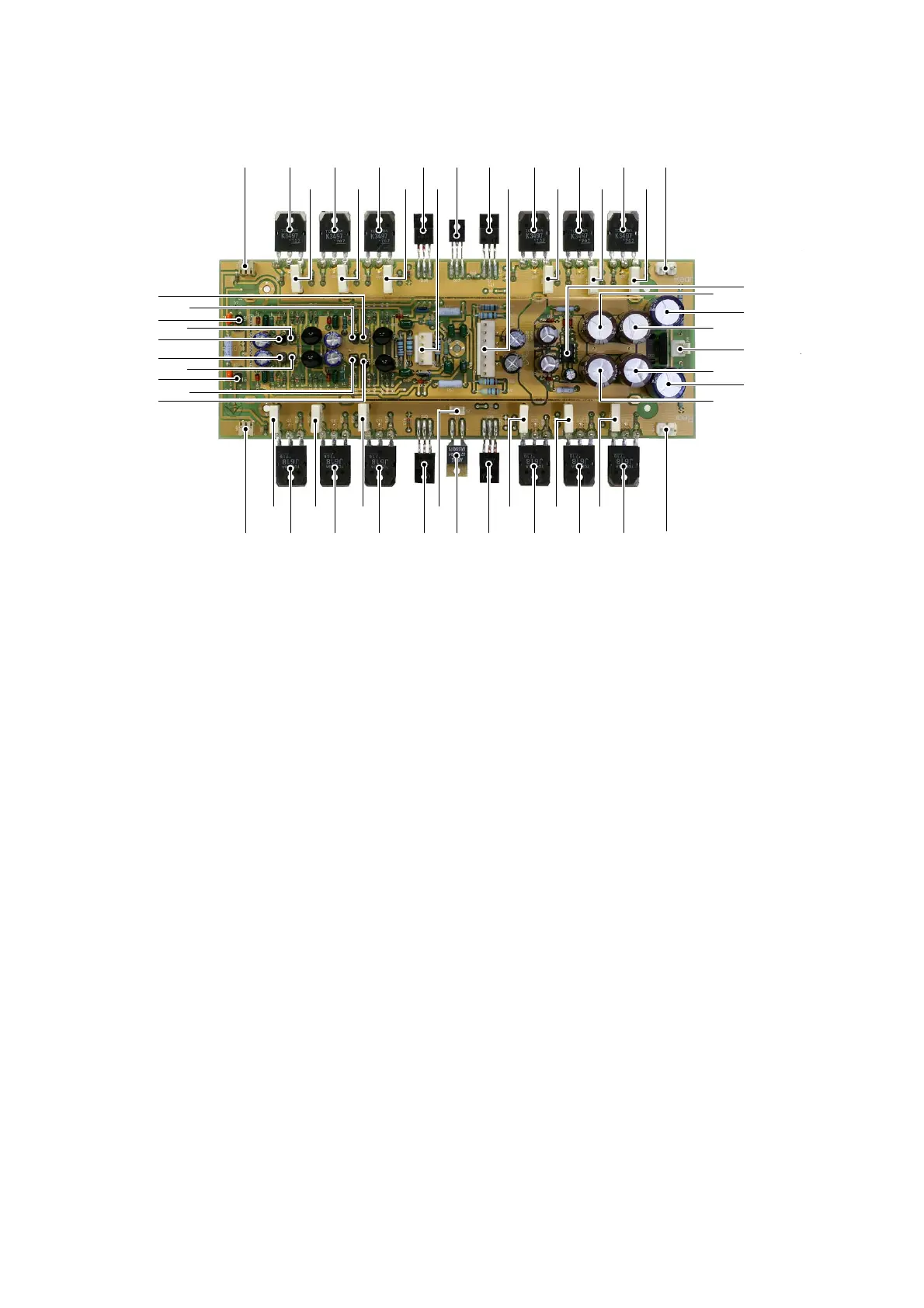

Accuphase A-45 - page09 Power Amp Assy

Po
w
er
A
mp
A
ssembly (717-0090-00)
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y
－９－
Polypropylen C1,2 CQ922N2A562JAPSF 5,600pF/100V
Capacitor
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
Polyester Capacitor C4,7,10,11 CF922MF2E472KDAZ 4,200pF/250V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ C12,13,16, CF922MF2E104KDAZ 0.1uF / 250V
C17,18 CF922MF2E473KDAZ 0.047uF/250V
C19 CF922MF2E223KDAZ 0.022uF/250V
Ceramic Capacitor C14,15 CC92CH2H471J 4,700pF/500V
磁器ｺﾝﾃﾞﾝｻ
Carbon Film Resistor R2,3 RD142EA241JFS 240Ω 1/4W
炭素皮膜抵抗器 R4,9,16,27,30,42,47 RD142EA331JFS 330Ω 1/4W
67,68,77,78,83,85
R5,20,21,35,36,53,60 RD142EA202JFS 2kΩ 1/4W
65,72,73,80,81,86
R10,11,33,34 RD142CA562J 5.6kΩ1/4W
R12,13,37,38 RD142EA102JFS 1kΩ 1/4W
R14,15,40,41 RD142EA242JFS 2.4kΩ1/4W
R18,19,25,26 RD142EA220JFS 22Ω 1/4W
43,44,48,49
R22,23,45,46 RD142EA153JFS 15kΩ 1/4W
R28,51 RD142EA101JFS 100Ω 1/4W
R55 RD142HA563JFS 56kΩ 1/4W
R59 RD142EA6R8JF 6.8Ω 1/4W
R74,75 RD142EA333JFS 33kΩ 1/4W
Fuse Resistor R6,7,31,32 RF142EA101G-P 100Ω 1/2W
ﾌｭｰｽﾞ抵抗器 R87,88,89,90 RF142EAR47J 0.47Ω1/4W
Metal Film Resistorr R52 RN142HK2211FF 2.21Ω 1/4W
金属皮膜抵抗器 R54,58 RN142HK3090FF 309Ω 1/4W
R61,62 RN142HK4421FF 4.42kΩ1/2W
R63,64 RN142HK3831FF 3.83kΩ1/2W
Oxide Metal Film R1 RS143DA161JS-P 160Ω 3W
Resistor R56,57 RS143DA101JS-P 100Ω 3W
金属酸化物皮膜抵抗器 R70,71 RS143AA332JS-P 33kΩ 3W
Metal Plate R8,17,24,29,39,50,66,69,76 RW993DJR22K-H 0.22Ω 2W
Resistor 79,82,84
金属板抵抗器
Transistor Insulator 250-1252-04
絶縁ｽﾍﾟｰｻ
Connector Plug K1 308-0416-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0207-00
K3 308-0705-00
K4 308-0212-00
TP1,2 (Test Point) 308-0221-00
Potentiometer VR1,2 583-0226-00
半固定抵抗器
IC IC1 NJM4580D-D
Thermal Switch TS1 369-0033-00
ｻｰﾏﾙｽｲｯﾁ
Diode D1,2 MA167
ﾀﾞｲｵｰﾄﾞ D5,6,9,10 MA165
D12,14 1SS83
D19,20 1SR139-400
D21 LN1VB60
Zener Diode D3,4,7,8,15,16 HZ153L
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ D11,13 HZ6A1L
D17,18 HZ9A2L
Tarnsistor Q1,9,13,21,24 2SA1376-K/U
ﾄﾗﾝｼﾞｽﾀ Q2,10,12,22,23 2SC3478-K/U
Q5,7,15,18 2SC2705-Y
Q6,8,16,19 2SA1145-Y
Q25,29 2SC4793
Q26,28 2SA1837
Q27 2SC4685
FET Q3,11,17,30,32,34 2SJ618
Q4,14,20,31,33,35 2SK3497
Electorlytic C5,6,8,9 CE04W2A330RE3E 33uF /100V
Capacitor C23,24 CE04W2D220PBE 22uF /200V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C26,27 CE04W2A680LXVE 68uF /100V
C28 CE04W1H100VPE 10uF / 50V
C29,30,31,32 CE04W1J102KMG 1000uF/63V
C33,34 CE04W1H102LXZE 1000uF/50V
Q28
Q2
Q20
Q8
Q33
Q26
Q19
Q11
Q17
Q1
Q3
R17
K3
VR1
K2
VR2
Q18
Q4
Q6
R39
TS1
TP1
TP2
Q25
R79
Q15
R84
R66
R82
R24
R8
Q30 Q34
Q31
R76
Q32
R29
R50
R69
Q14
C
46
C45
Q5
Q16
Q7
IC1
Q27
Q29
Q35
K1
K4
C34
C33
C31
C29
C32
C30
