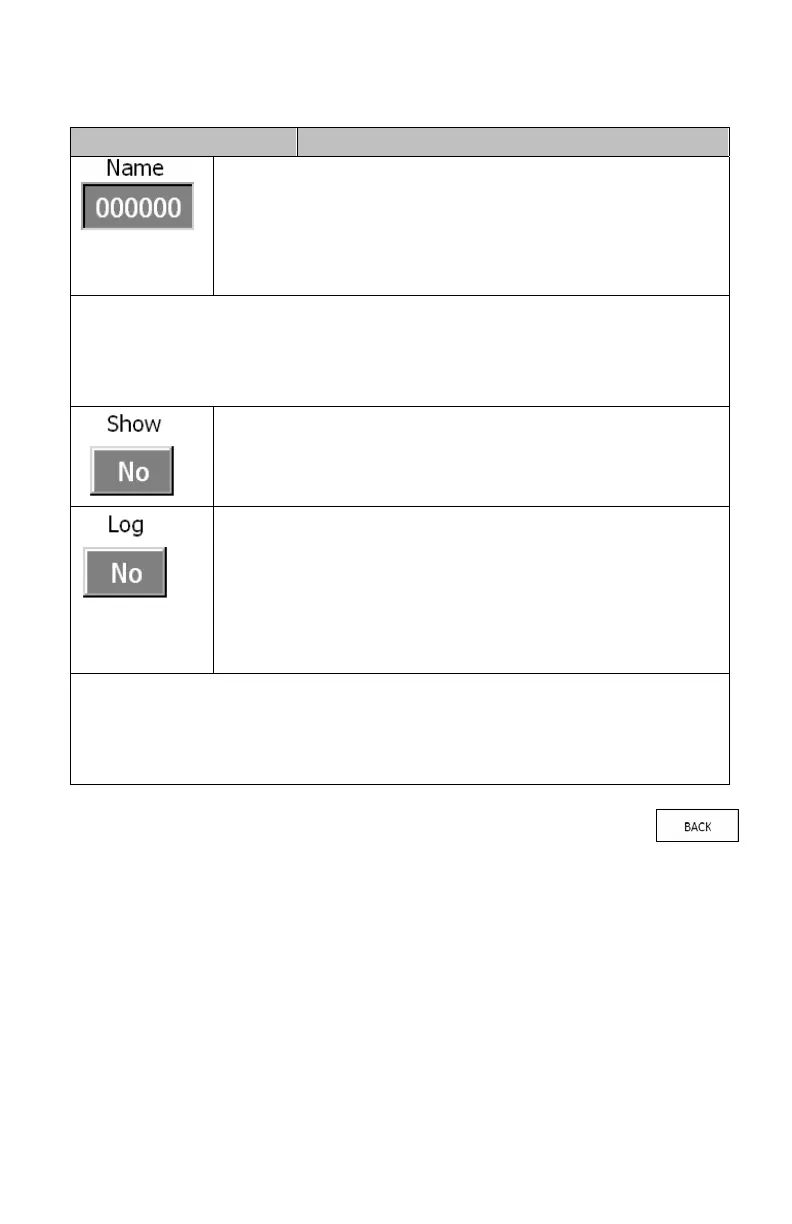

FIELD DESCRIPTION

Pressing the “Name” field allows you to name the

sensor. The sensor name can be up to six (6)

characters long. Press the “Name” field and use

the keypad keys to enter the name and press the

return button when finished.

Note: If you enter more than six (6) characters and press the

enter key, the name will not be saved.

If you would like the counts to be shown on the

Pulse Unit, toggle the “Show” option to “Yes”.

If you would like hourly counts to be permanently

logged to a log file, the “Log” button needs to be

toggled to “Yes”. This data can be viewed using

Siemens S7-200 Explorer and Microsoft Excel.

You should set this to “Yes” for every sensor that

you have connected.

Note: This feature will be discussed in greater detail in the

“Viewing Log Files” section.

When finished entering in the Sensor information, press the

button to return you to the Main Configuration Screen.
