Kitchen Hoods • Type I and Type II 13
Installing Enclosure Panels
Before installing the enclosure panels, make sure the hood is hung in position with all the ductwork attached and all
fire system and electrical connections completed.
1. Position the end enclosure panels on the hood, and clamp into place with clamps provided or tack-weld the
panels into place.
2. Fasten the end enclosure panels to the wall; method depends on wall construction. (Fasteners provided
by others).
If the hood is a double island, bolt the end enclosure panels together. (Fasteners provided by others).
3. Position the front enclosure panel(s) on the hood, and bolt to the end enclosure panels with the 5/16 in. bolts
provided in the hardware package.
4. Tack-weld or clamp the front enclosure panel(s) to the hood. If clamps are used, they must be positioned 4in.
(10.16 cm) from the ends and in the center of the front enclosure panel.
If hood is provided with supply plenums, the front enclosure panel should be tack welded or use self-tapping
screws on the inside of the front panel to secure the panel in place to the ASP.
5. To allow for ease of cleaning, caulk the external
seams with NSF Approved silicone caulk
(GE SCS1009, or its equivalent). The caulk is
not provided.

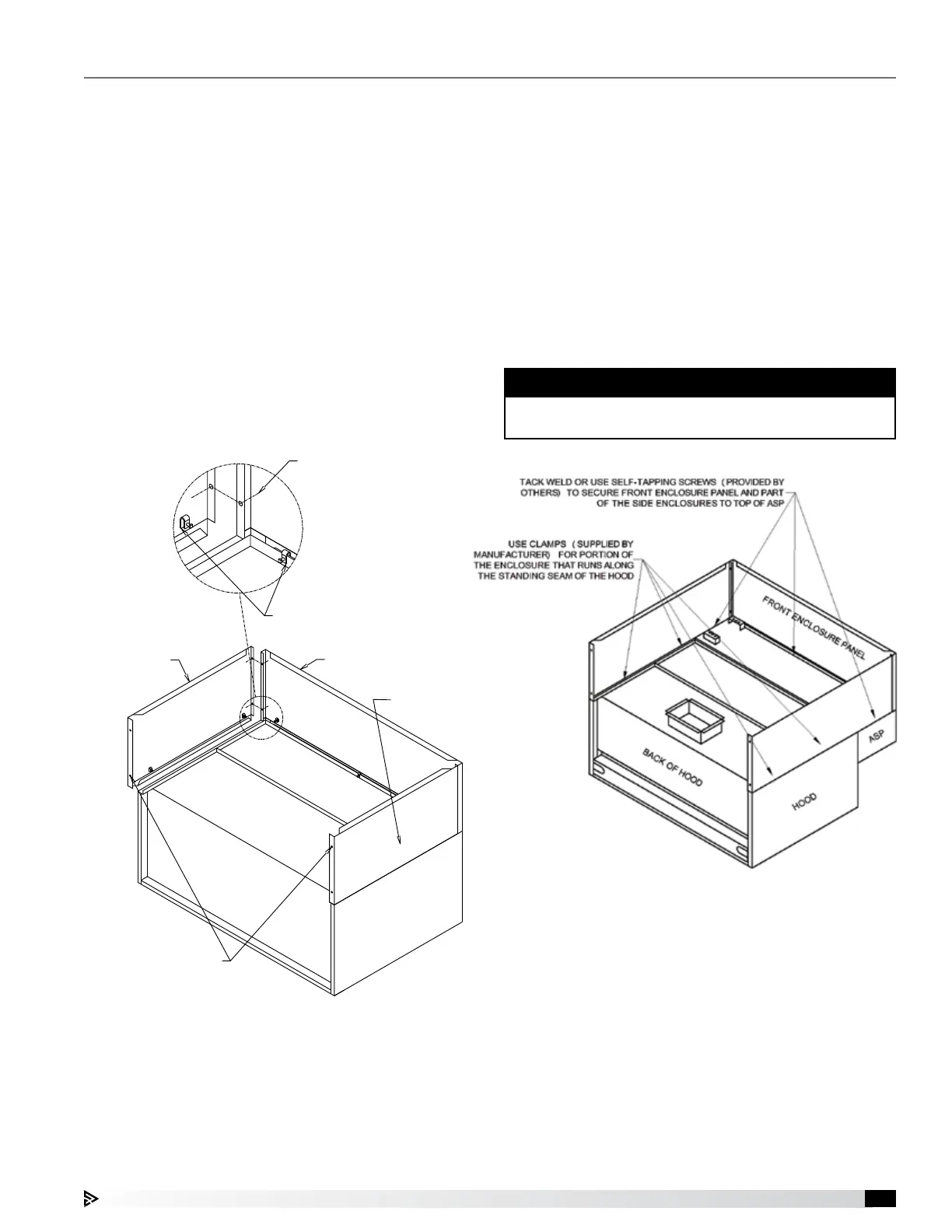

BOLT PANELS TOGETHER
WITH 5/16 INCH BOLTS
SUPPLIED BY MANUFACTURER
CLAMP PANELS TO HOOD
STANDING SEAM WITH HARDWARE
SUPPLIED BY MANUFACTURER
FRONT ENCLOSURE PANEL
END ENSLOSURE
PANEL
ATTACH TO WALL
FASTENERS BY OTHERS
END ENSLOSURE
PANEL
HOOD TOP
HOOD BACK
NOTE
Installation instructions may not be applicable for
concrete ceilings.
