Acer Aspire 4560 - Replacing the CPU

3-66 Machine Maintenance
Replacing the CPU 0

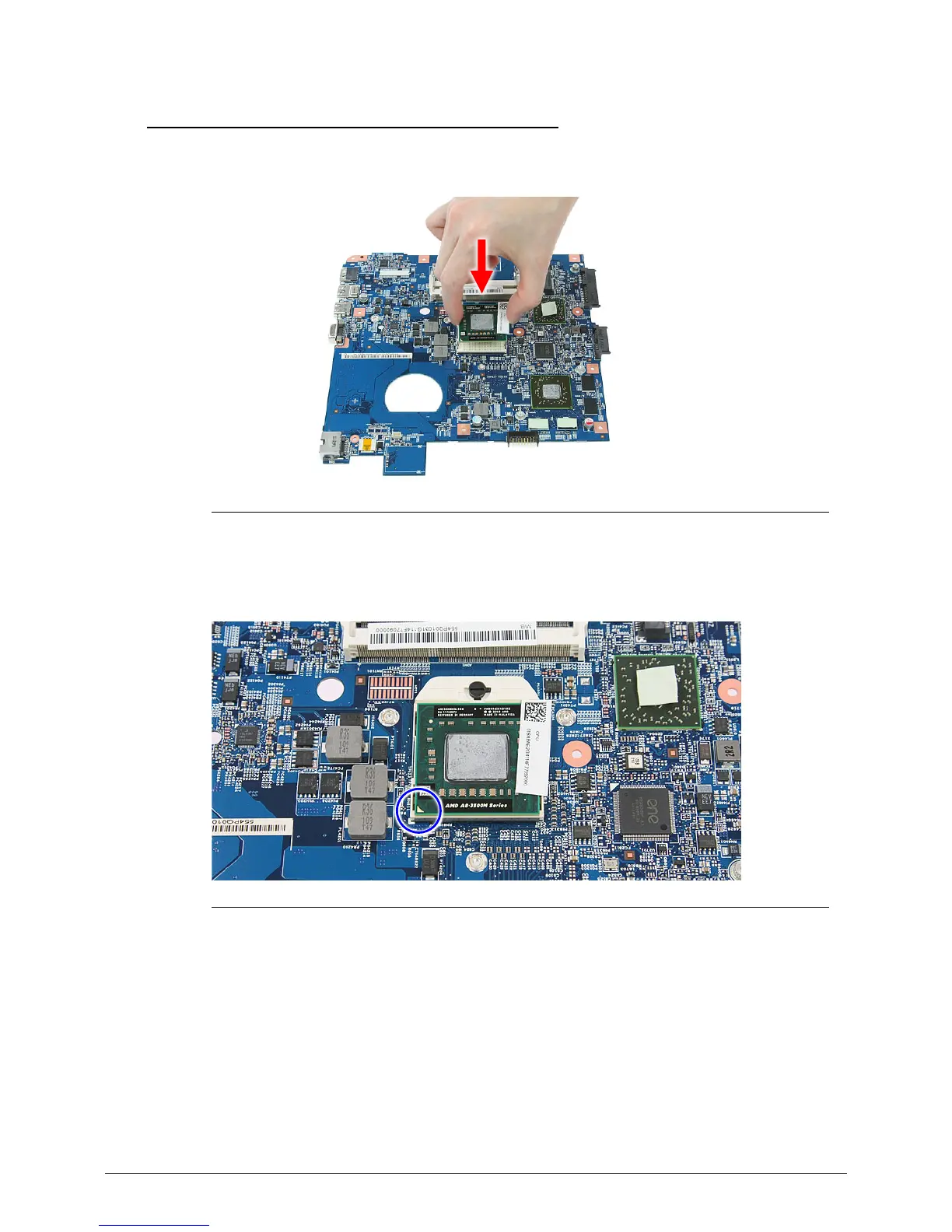

1. Place the CPU in the socket.
Figure 3-97. CPU
2. Make sure the gold arrow on the corner of the CPU is aligned with the beveled corner of
the socket. The CPU will easily fit into the socket if you orient it properly.
Figure 3-98. CPU Orientation Marker
