3. Remove the thermal module from the mainboard as shown in Figure 3-26.

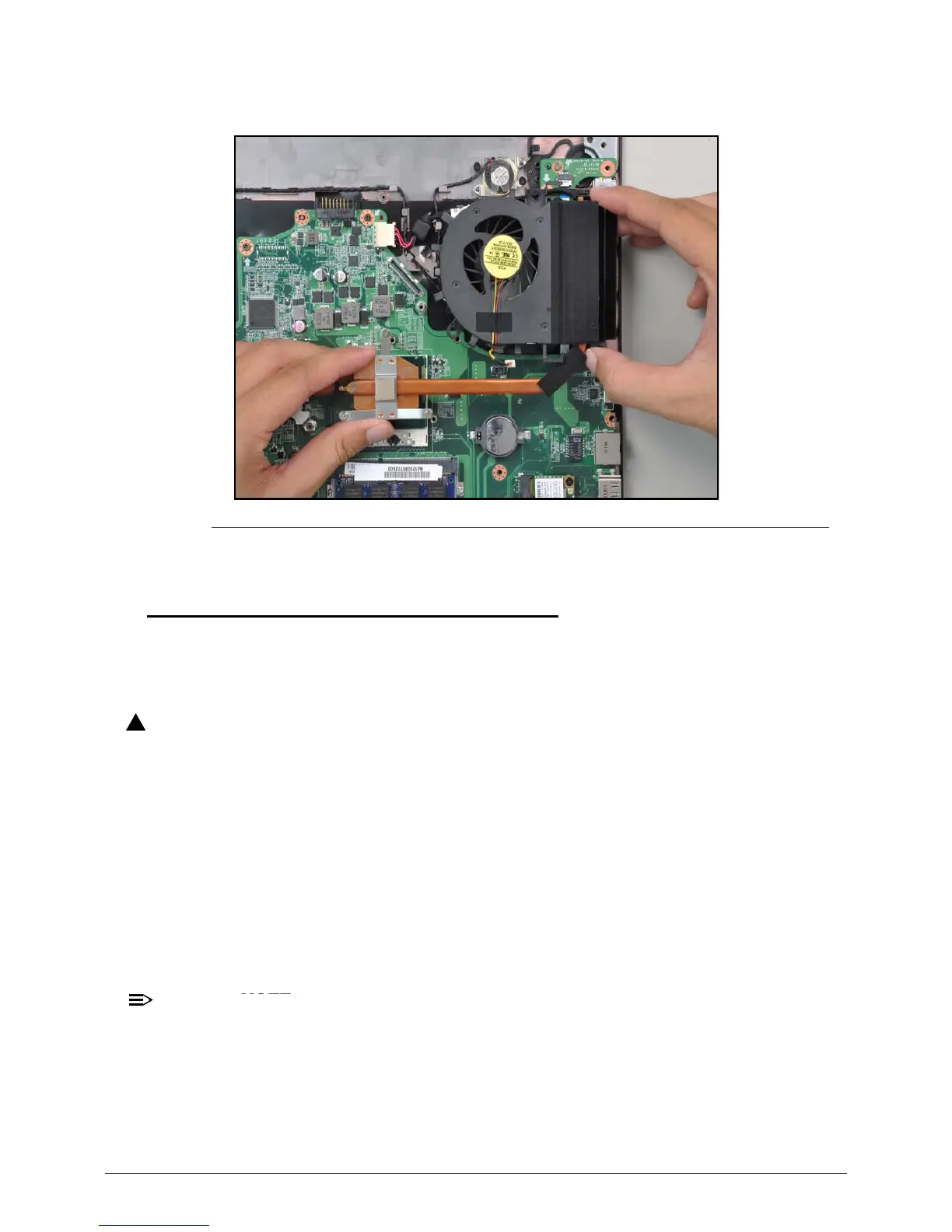

Figure 3-26. Thermal Module Removal
Thermal Module Installation 0
IMPORTANT:
+
Apply approved thermal grease and ensure all heat pads are in position
before replacing
module.
CAUTION:
!
Use caution when applying thermal grease. Thermal grease may cause
damage to the mainboard.
The following thermal grease types are approved for use:
Silmore GP50
Honeywell
Jet Motor 7762
The following thermal pads are approved for use:
Eapus XR-PE
1. Remove all traces of thermal grease from CPU using a lint-free cloth or cotton swab
and Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2. Apply small amount of thermal grease to center of CPU.
NOTE:
NOTE:
Force used during installation of thermal module is sufficient to spread grease
evenly over CPU top.
3. Install and secure four (4) non-captive screws to mainboard. (Figure 3-25).
4. Connect thermal module cable (A) to mainboard connector (B). (Figure 3-25).
5. Install the base cover.

Acer Aspire 5349 Specifications

General

RAM	2 GB DDR3
Storage	320 GB HDD
Graphics	Intel HD Graphics
Processor	Intel Pentium B960
Display	15.6-inch, 1366 x 768 pixels
Battery	6-cell Li-ion
Weight	2.6 kg
Dimensions	381 x 253 x 34 mm
Operating System	Windows 7 Home Basic / Home Premium
