Removing the Battery Connector 0
1. Perform the “Removing the Mainboard” procedure described on the preceding on
page 3-29.
2. Remove the two screws securing the battery connector to the lower case assembly.

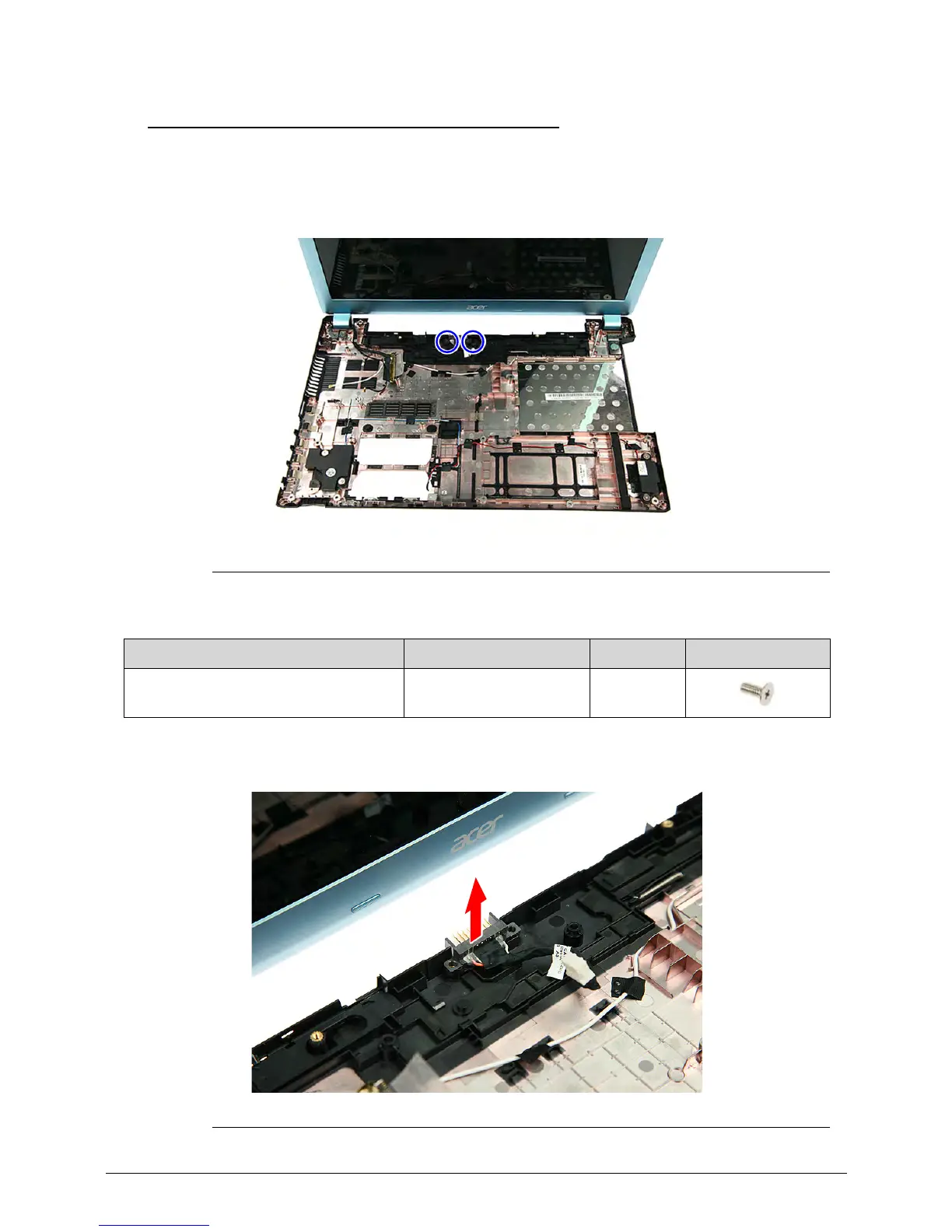

Figure 3-43. Battery Connector Screws
3. Detach the battery connector from the lower case assembly.
Figure 3-44. Battery Connector
Table 3-43. Screws
Step Screw Quantity Screw Type
Battery Connector Disassembly M2.5 × L5 2
