3-50 Machine Maintenance
Reinstalling the LCD Panel 0

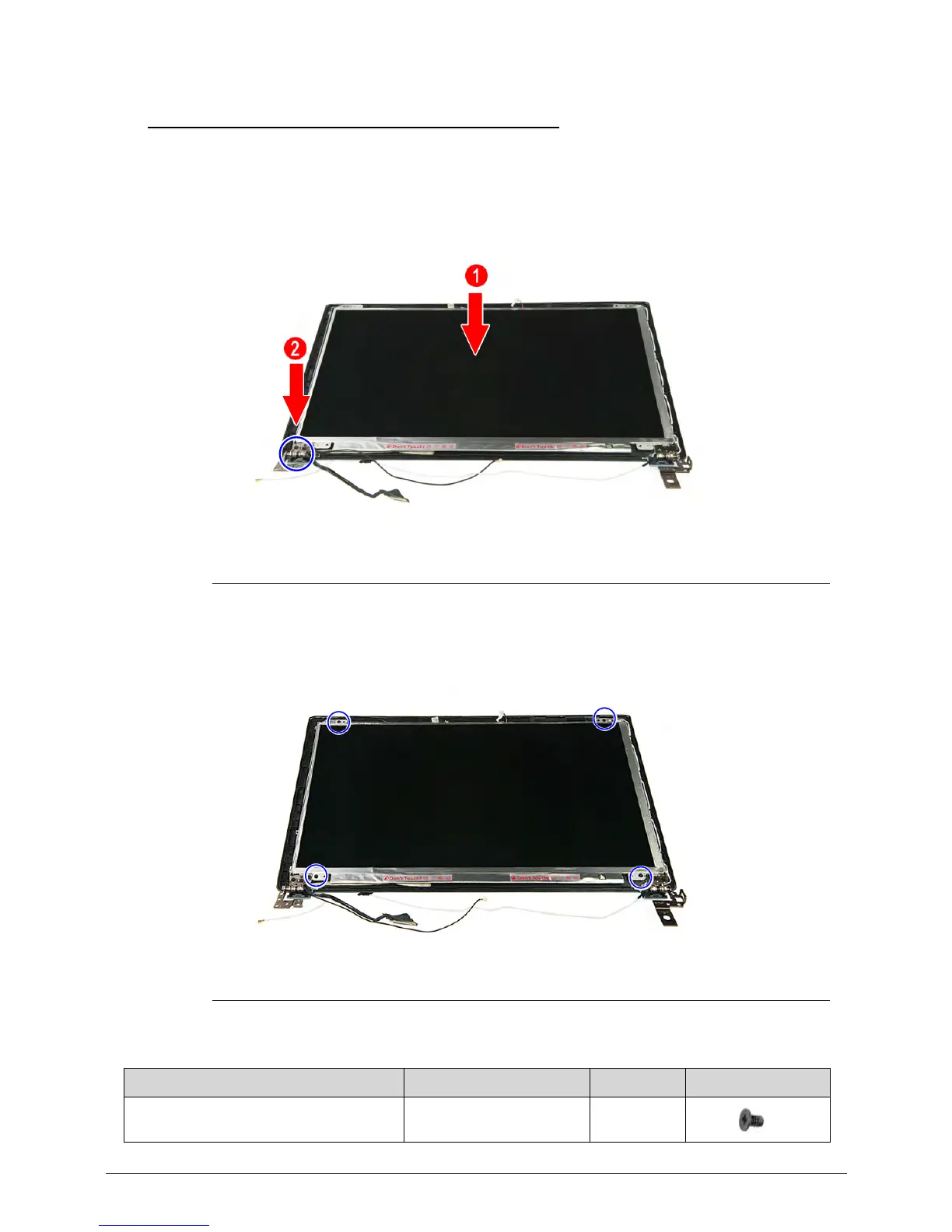

1. Gently place the LCD panel into the LCD back cover (1), then insert the LCD cable into the
latch located near the hinge (2).
Figure 3-69. LCD Cable
2. Secure the LCD panel to the LCD back cover using four screws.
Figure 3-70. LCD Panel Screws
Table 3-70. Screws
Step Screw Quantity Screw Type
LCD Panel Reassembly M2 × L3 4
