3-70 Machine Maintenance
Reinstalling the Touchpad Board 0
1. Place the touchpad board into the upper case assembly.

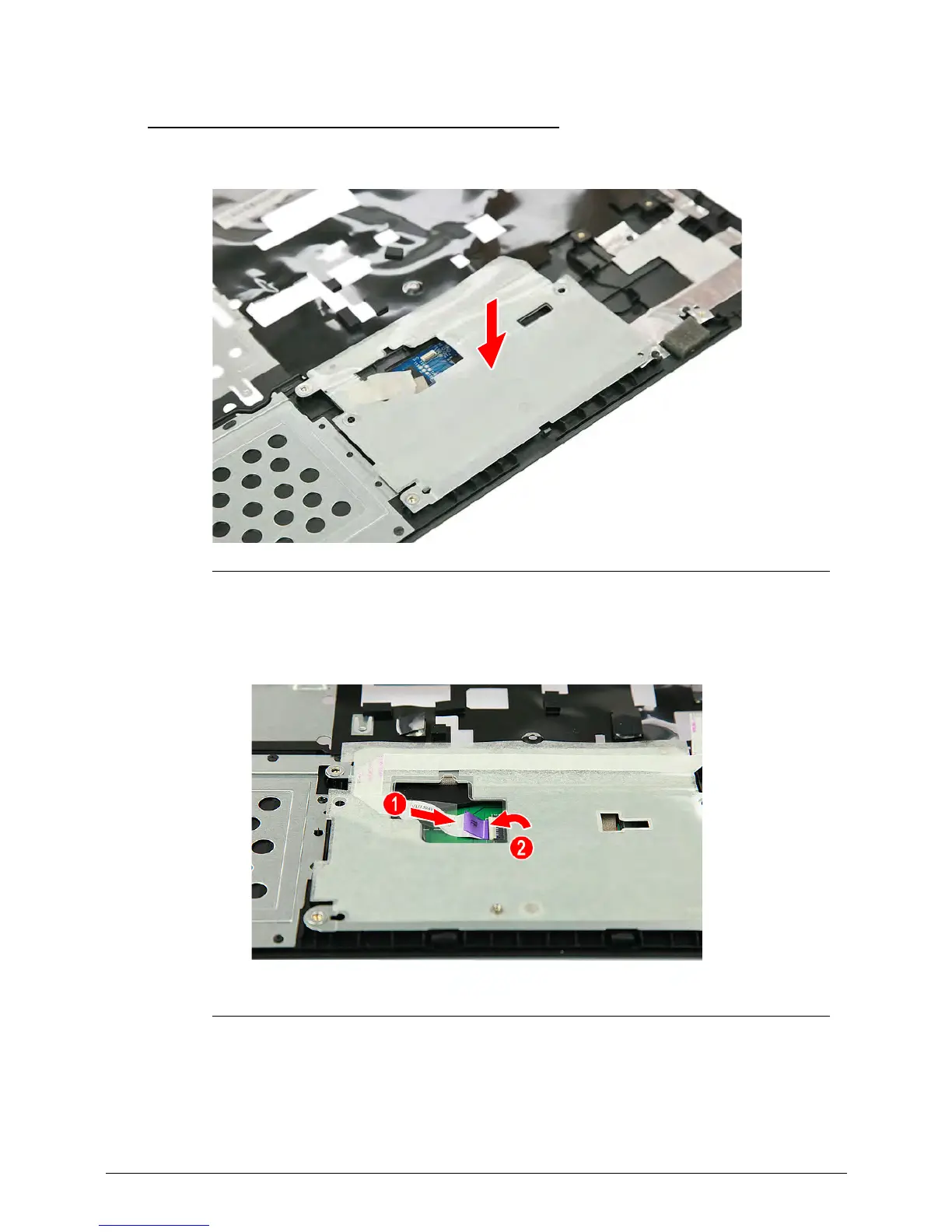

Figure 3-101. Touchpad Board
2. Connect the touchpad cable to the touchpad board (1), then press the connector latch (2)
until it locks into place.
Figure 3-102. Touchpad Cable
