3-42 Machine Maintenance
Removing the Camera Board 0
1. Perform the “Removing the LCD Bezel” procedure described on page 3-41.
2. Disconnect the camera cable from the camera board.

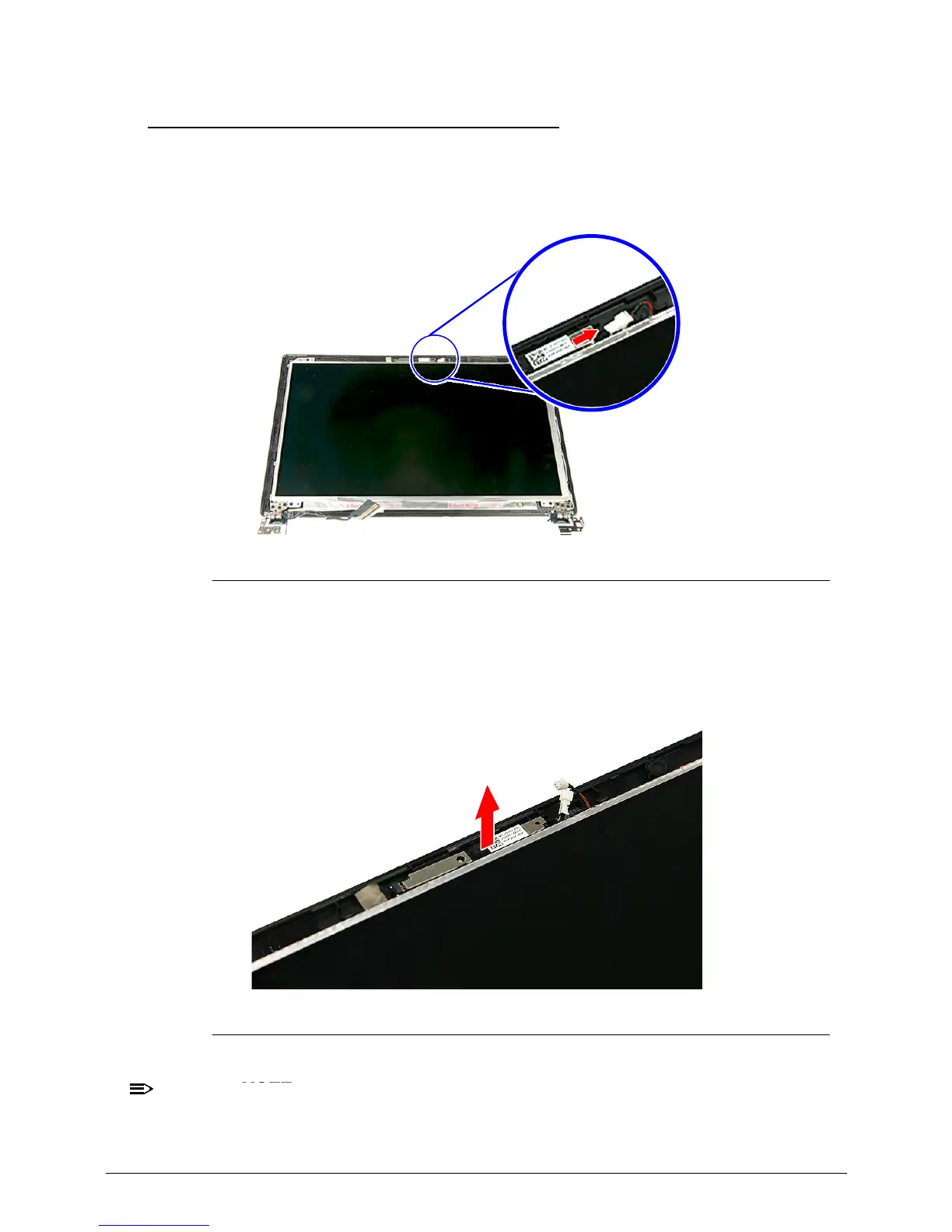

Figure 3-53. Camera Cable
3. Gently pry the camera board off the LCD back cover.
Figure 3-54. Camera Board
A circuit board that is >10 cm2 has been highlighted with a yellow rectangle in
Figure 3-54. Follow the local regulations for disposing this type of circuit board.
