Reinstalling the LCD Brackets 0

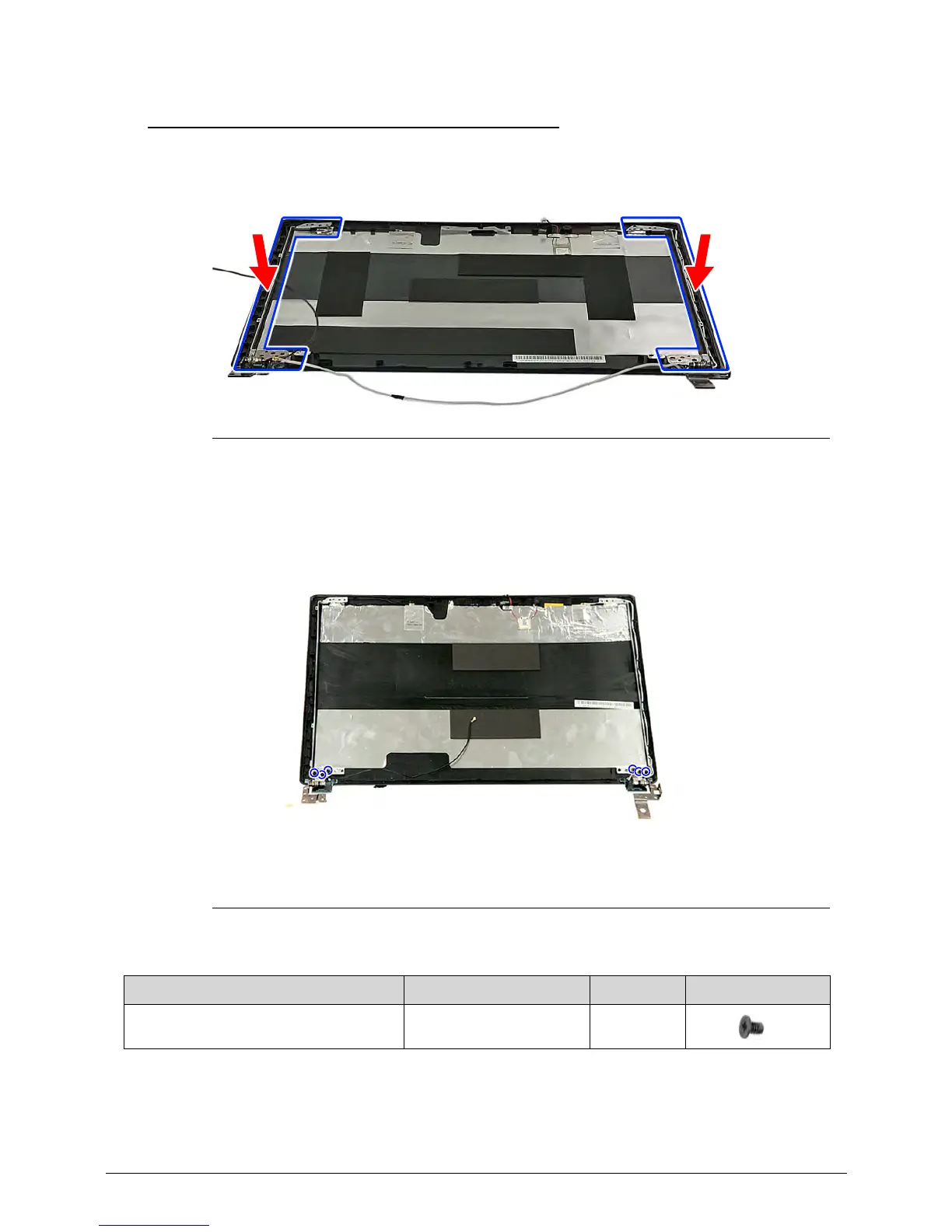

1. Place the LCD bracket into the LCD back cover.
Figure 3-65. LCD Bracket
2. Secure the left and right LCD brackets to the LCD back cover using six screws.
Figure 3-66. LCD Bracket Screws
Table 3-66. Screws
Step Screw Quantity Screw Type
LCD Bracket Reassembly M2 × L3 6
