Removing the Speaker Module 0
1. Perform the “Removing the Mainboard” procedure described on page 3-29.
2. Detach the speaker cables from lower case assembly.

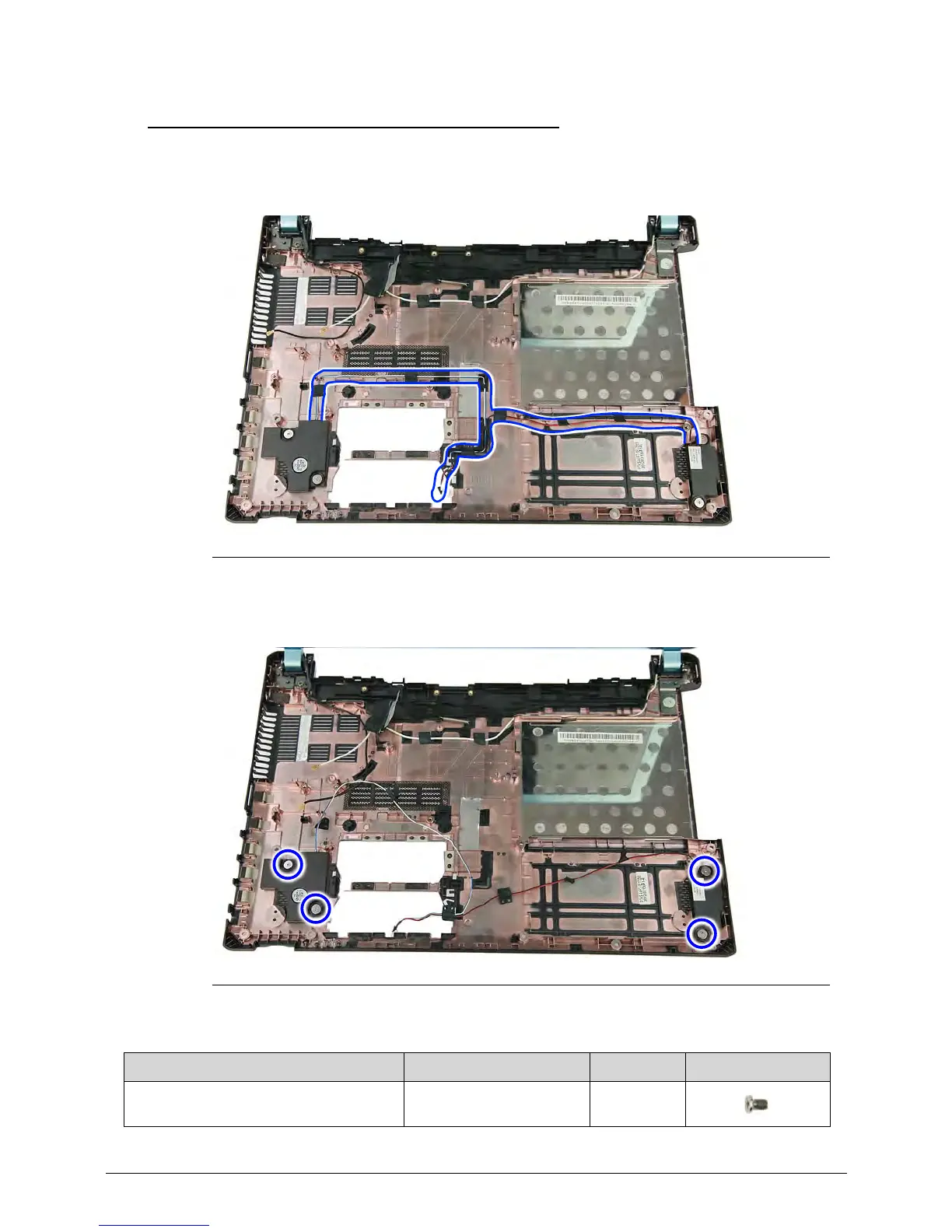

Figure 3-45. Speaker Cable
3. Remove the four screws securing the Speaker Module to the lower case assembly.
Figure 3-46. Speaker Screws
Table 3-46. Screws
Step Screw Quantity Screw Type
Speakers Disassembly M2 × L3 4
