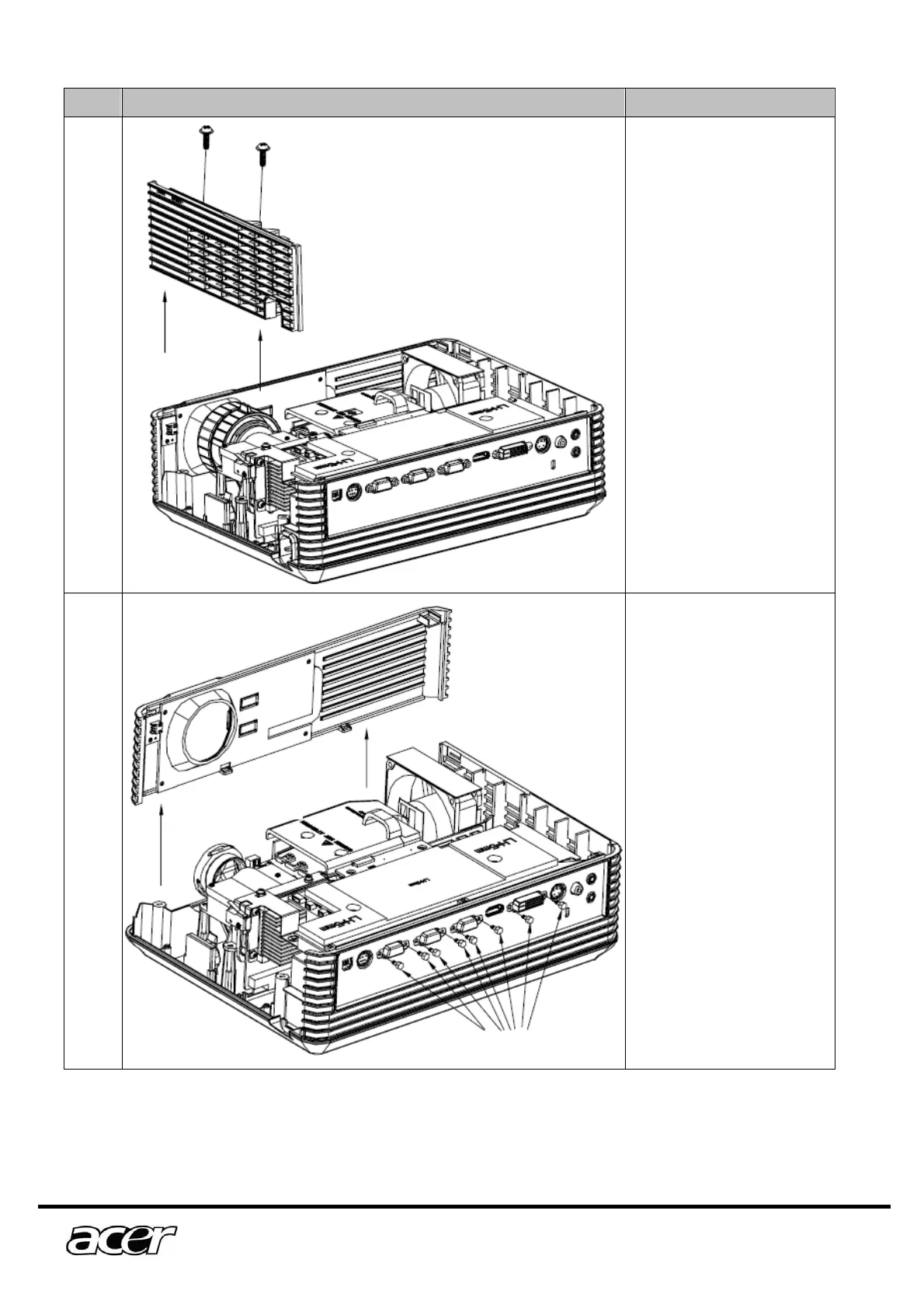

Step Figure Description
2
Loosen the screws (2ea) as
shown to disassemble the
side cover.
3
Pull the front cover up to
disassemble it (as photo
showing).Then loosen the
screws of the I/O board on
back cover as shown.
Note: there are 8ea screws
for P5260E but 6ea for
P1166, because of one more
VGA connector.
S2*2
S3
Left side cover
C3
Front cover
C4
