Step Figure Description
4

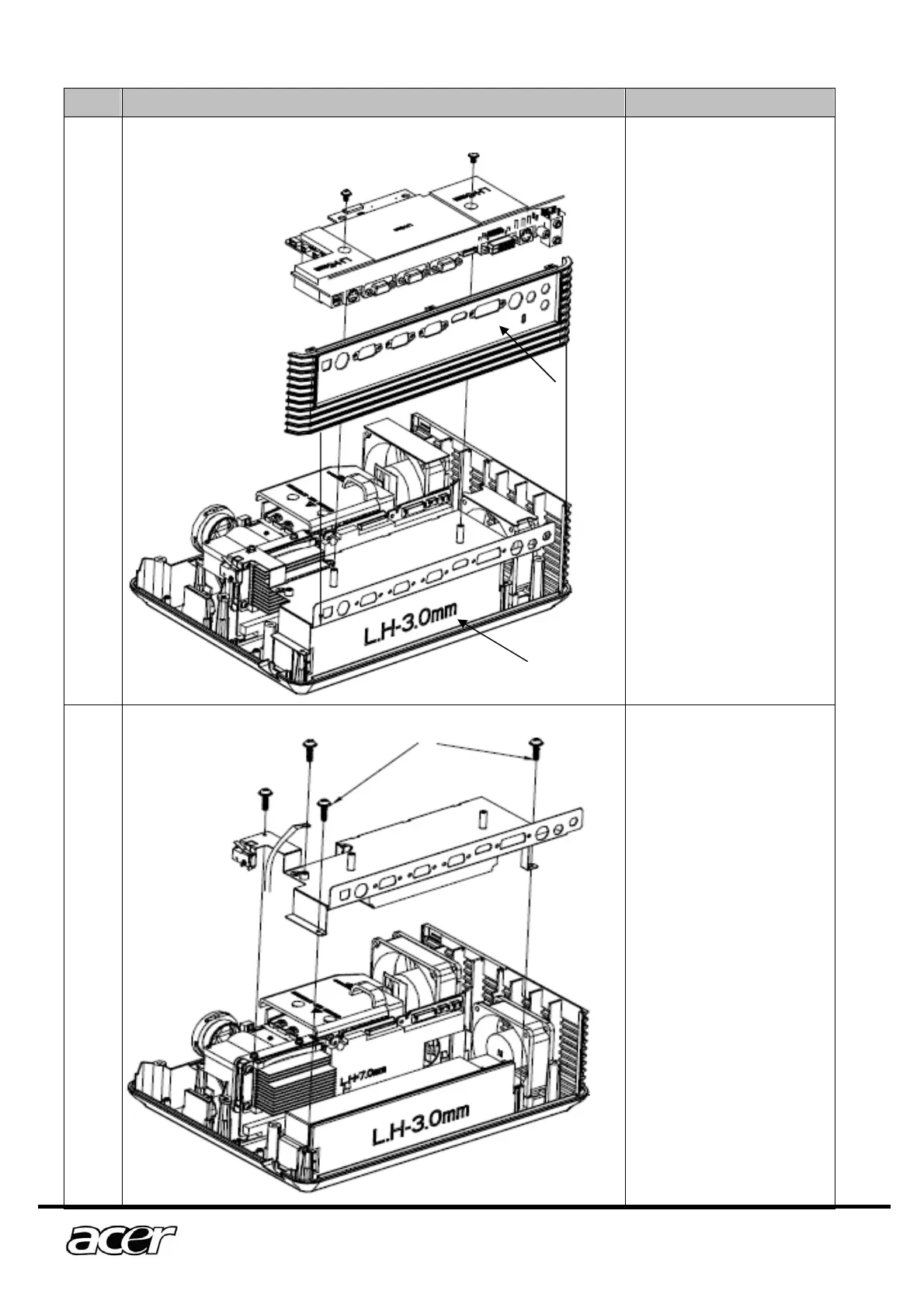

Loosen the screws of the I/O
board (as photo shown) then
take off the board and back
cover.
Note: before removing the
boards, make sure the wires
are all disconnecting. Or you
may destroy the wire or
connector.
5
Remove the ballast module.
As photo showing, loosen the
screws (3ea for the metal
dome and 1ea for the ground
wire), then take off the
module.
Note: the metal has a hook for
tightening the module, be
careful when taking it off.
S4*2
S2*2
S5*1
S4*1
I/O Board
B1
S2*1
Back cover
C6
Ballast
B2
I/O name plate
C7
To Next Page
