SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

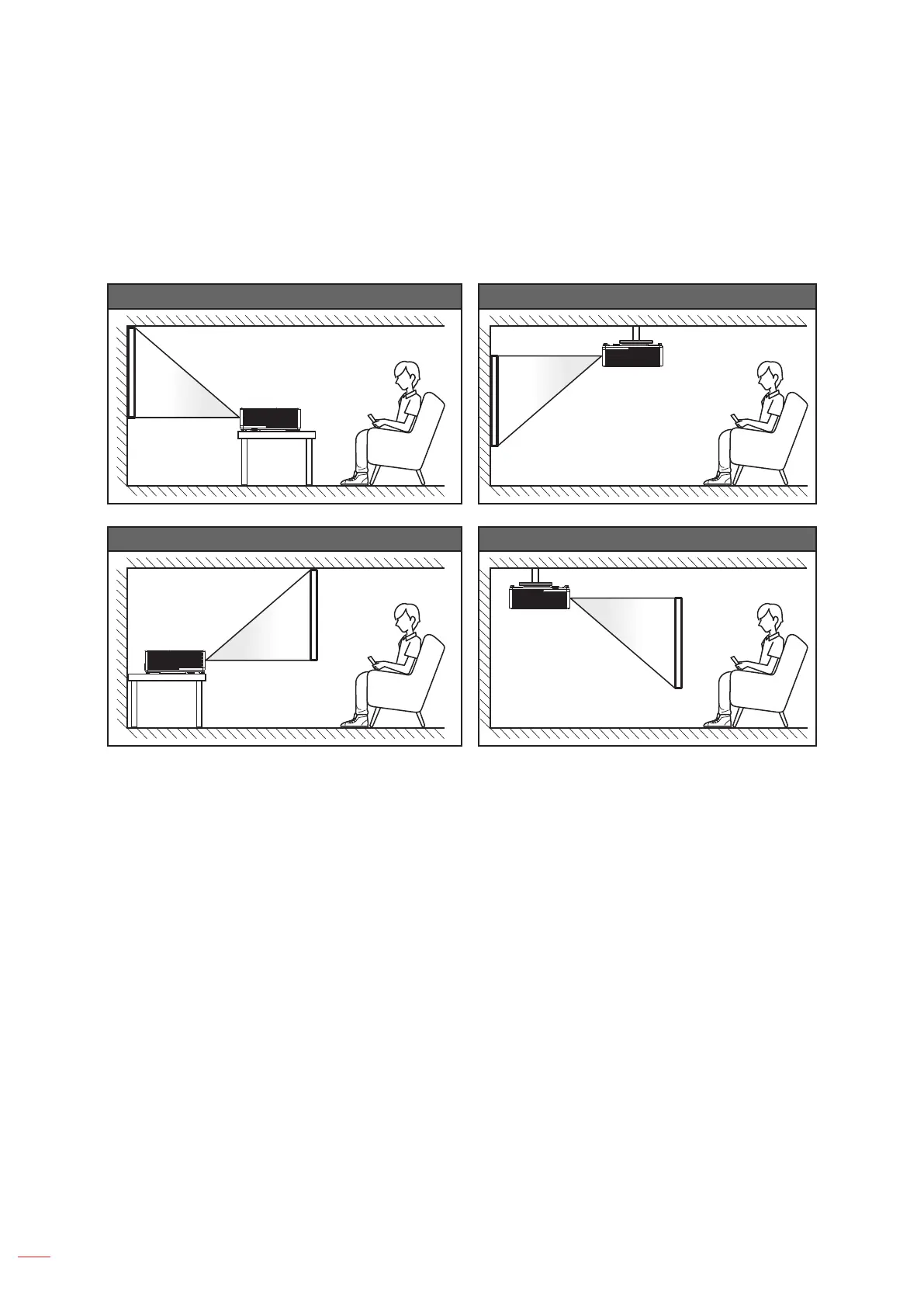

Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
 How to determine projector location for a given screen size, please refer to distance table on pages
52-54.
 How to determine screen size for a given distance, please refer to distance table on pages 52-54.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
IMPORTANT
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the
warranty and may shorten the lifetime of the projector light source or the projector itself. For none standard
installation advise please contact Acer.

Acer PL6610T Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1 - 9 m
Projection technology	DLP
Supported aspect ratios	4:3, 16:10, 16:9
Contrast ratio (typical)	2000000:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.023 kHz
Keystone correction, horizontal	-30 - 30 °
Horizontal synchronization (max)	102 kHz
Horizontal synchronization (min)	15 kHz
Lamps quantity	1 lamp(s)
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Built-in display	No
Focus	-
Throw ratio	1.4 to 2.24 (1676.40 mm@2000 mm)
Zoom capability	Yes
Focal length range	20.91 - 32.62 mm
Aperture range (F-F)	2.5 - 3.26
Analog signal format system	NTSC, PAL, SECAM
Composite video in	1
Serial interface type	RJ-45
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Noise level	- dB
Projection modes	Ceiling, Front, Rear
Compatible operating systems	Mac Windows
RMS rated power	10 W
Placement	Ceiling
Product type	Ceiling-mounted projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	120 - 230 V
Power consumption (standby)	- W
Power consumption (typical)	321 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	6000 g
