SETUP AND INSTALLATION
Adjusting the projector image
Image height

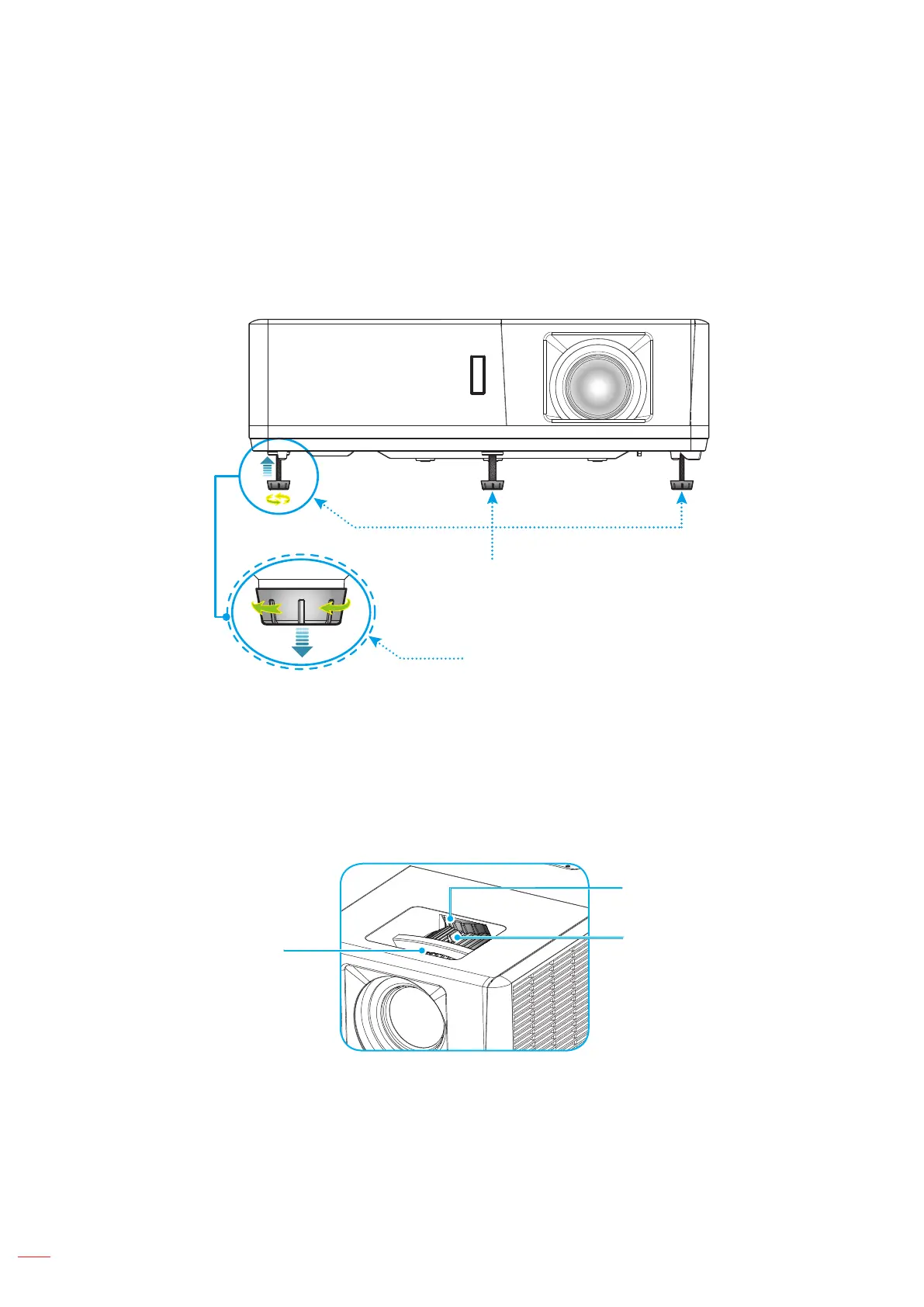

The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
 To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
 To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
 To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
Zoom Lever
Lens Shift Dial
Focus Ring
Note: Ensure that the projection screen is within the required distance from the projector. Please refer
to “Image size and projection distance” for more information.

Acer PL6610T Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1 - 9 m
Projection technology	DLP
Supported aspect ratios	4:3, 16:10, 16:9
Contrast ratio (typical)	2000000:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.023 kHz
Keystone correction, horizontal	-30 - 30 °
Horizontal synchronization (max)	102 kHz
Horizontal synchronization (min)	15 kHz
Lamps quantity	1 lamp(s)
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Built-in display	No
Focus	-
Throw ratio	1.4 to 2.24 (1676.40 mm@2000 mm)
Zoom capability	Yes
Focal length range	20.91 - 32.62 mm
Aperture range (F-F)	2.5 - 3.26
Analog signal format system	NTSC, PAL, SECAM
Composite video in	1
Serial interface type	RJ-45
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Noise level	- dB
Projection modes	Ceiling, Front, Rear
Compatible operating systems	Mac Windows
RMS rated power	10 W
Placement	Ceiling
Product type	Ceiling-mounted projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	120 - 230 V
Power consumption (standby)	- W
Power consumption (typical)	321 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	6000 g
