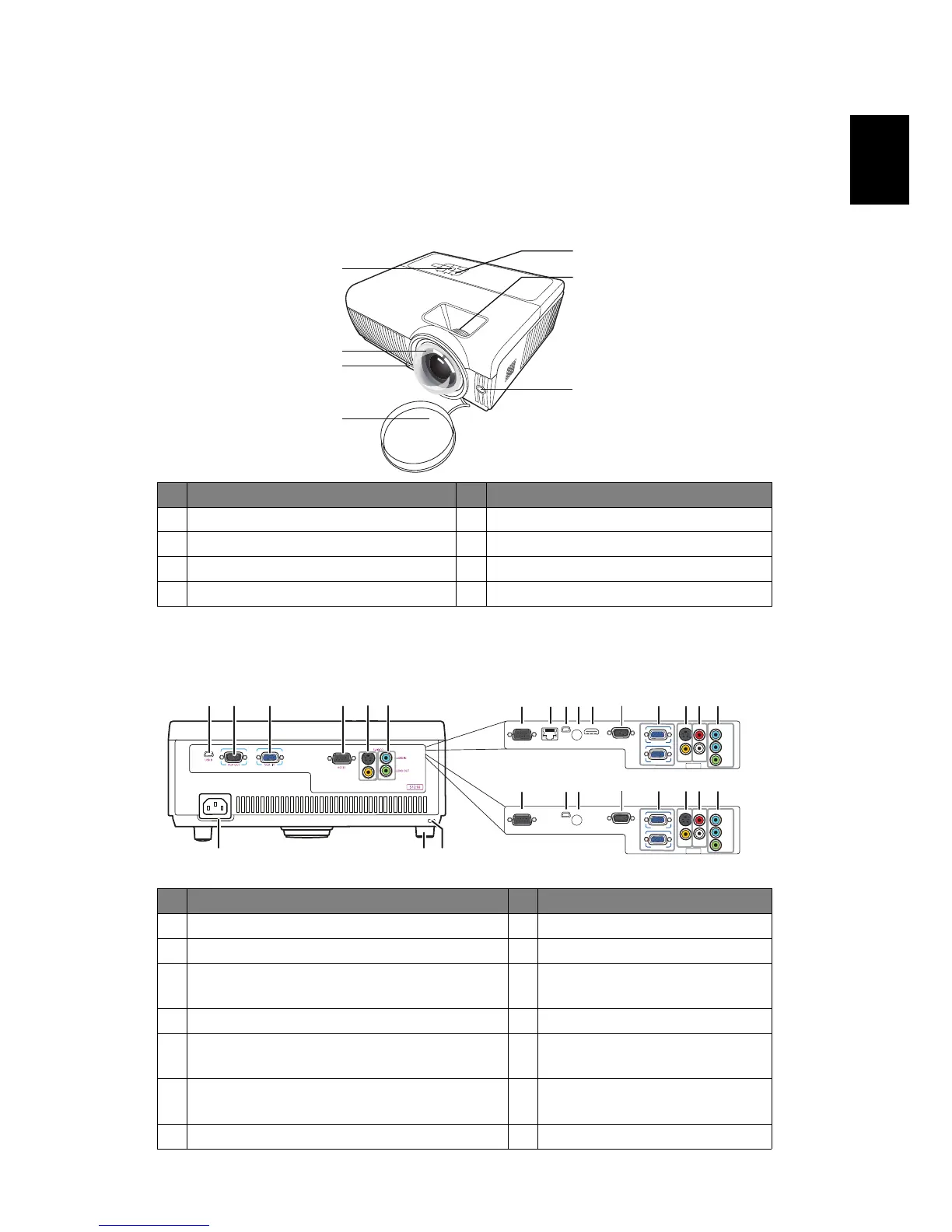

Projector Overview
Projector Outlook
Front / upper side
Rear side
# Description # Description
1 Control panel 5 Power key and Power indicator LED
2 Projection lens 6 Focus ring
3 Elevator button 7 Remote control receiver
4Lens cap
# Description # Description
1 USB connector 8 Tilt adjusting wheel
2 Monitor loop-through output connector 9 Kensingtonā„¢ lock port
3 PC analog signal/HDTV/component
video input connector
10 LAN (RJ45 port for 10/100M
Ethernet)
4 RS232 connector 11 Remote control receiver
5 S-Video input connector
Composite video input connector
12 HDMI input connector
6 Audio input connector
Audio output connector
13 Audio input connector (L/R)
7 Power socket
1
2
4
7
3
5
6
AUDIO-R
AUDIO-L
AUDIO
IN 1
AUDIO
IN 2
AUDIO
OUT
VGA IN 1
VGA IN 2
VGA OUT
HDMI
USB B
LAN
RS232
S-VIDEO
VIDEO
AUDIO-R
AUDIO-L
AUDIO
IN 1
AUDIO
IN 2
AUDIO
OUT
VGA IN 1
VGA IN 2
VGA OUT
USB BRS232
S-VIDEO
VIDEO
10 1 1211 2351364
S1213Hn
1 11 2351364
S1213
23 4 56
8
7
9
1
(S1110/T200/XS-S10/S1210/T210/XS-
X10/S1310W/T220/XS-W10)
(S1210Hn/S1213Hn/T212DT/XS-X13HG/
S1310WHn/S1313WHn)
(S1213/T212/XS-X13/
S1313W)
