Getting Started

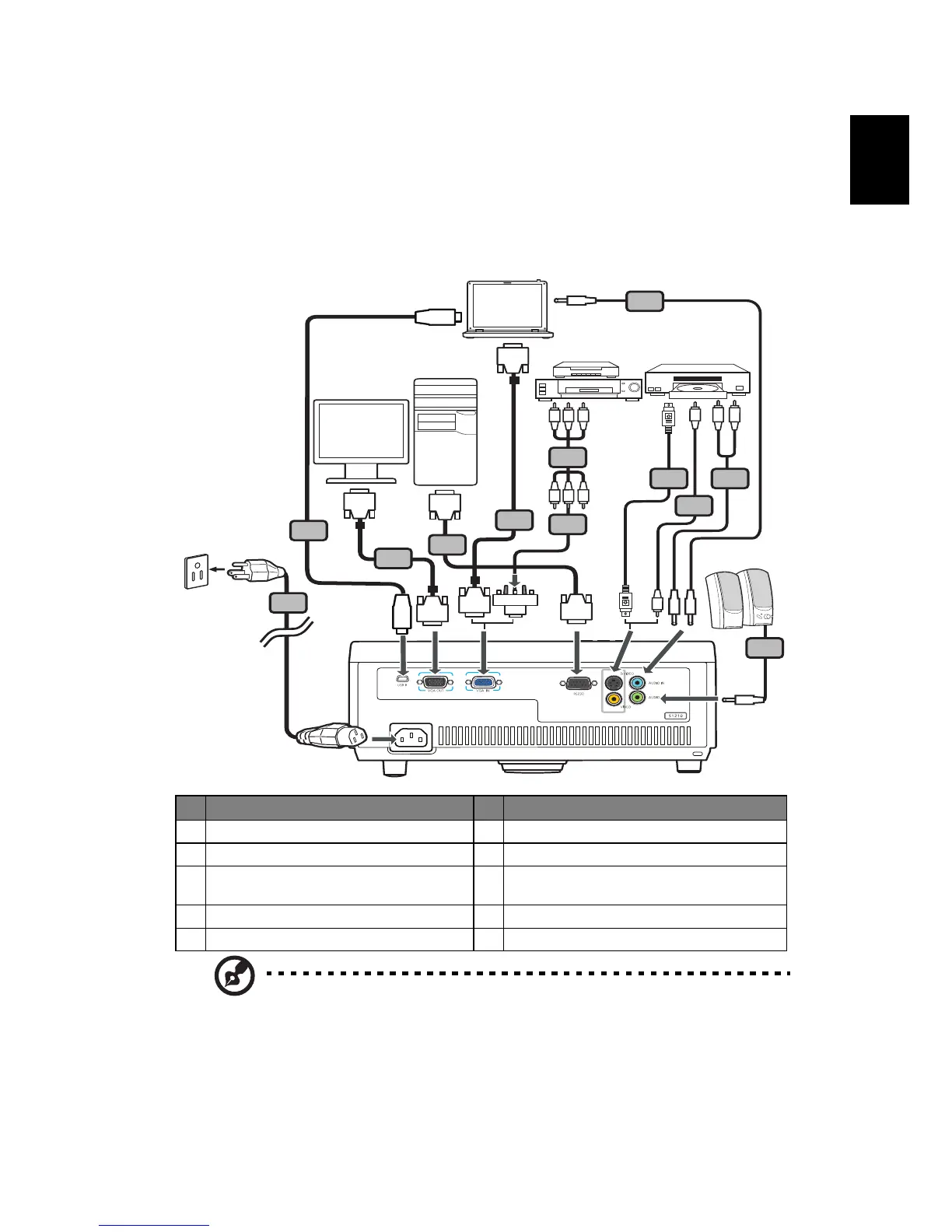

Connecting the Projector
• S1110/T200/XS-S10/S1210/T210/XS-X10/S1310W/T220/XS-W10
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
# Description # Description
1Power cord 6S-Video cable
2 VGA cable 7 RS232 cable
3 VGA to component video/HDTV
adapter
8 USB cable
4 Composite video cable 9 3 RCA component cable
5 Audio cable
RS232
RS232
RBG
RBG
HDTV adapter
D-Sub
D-Sub
7
8
D-Sub
D-Sub
2
5
5
6
4
5
2
USB
USB
1
R
W
9
3
Y
Y
DVD player,
Set-top box,
HDTV receiver
VGA
RS232
Video/S-Video
Output
Display
Speakers
To Next Page
