• S1210Hn/S1213/T212/XS-X13/S1213Hn/T212DT/XS-X13HG/S1313W/
S1310WHn/S1313WHn
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.

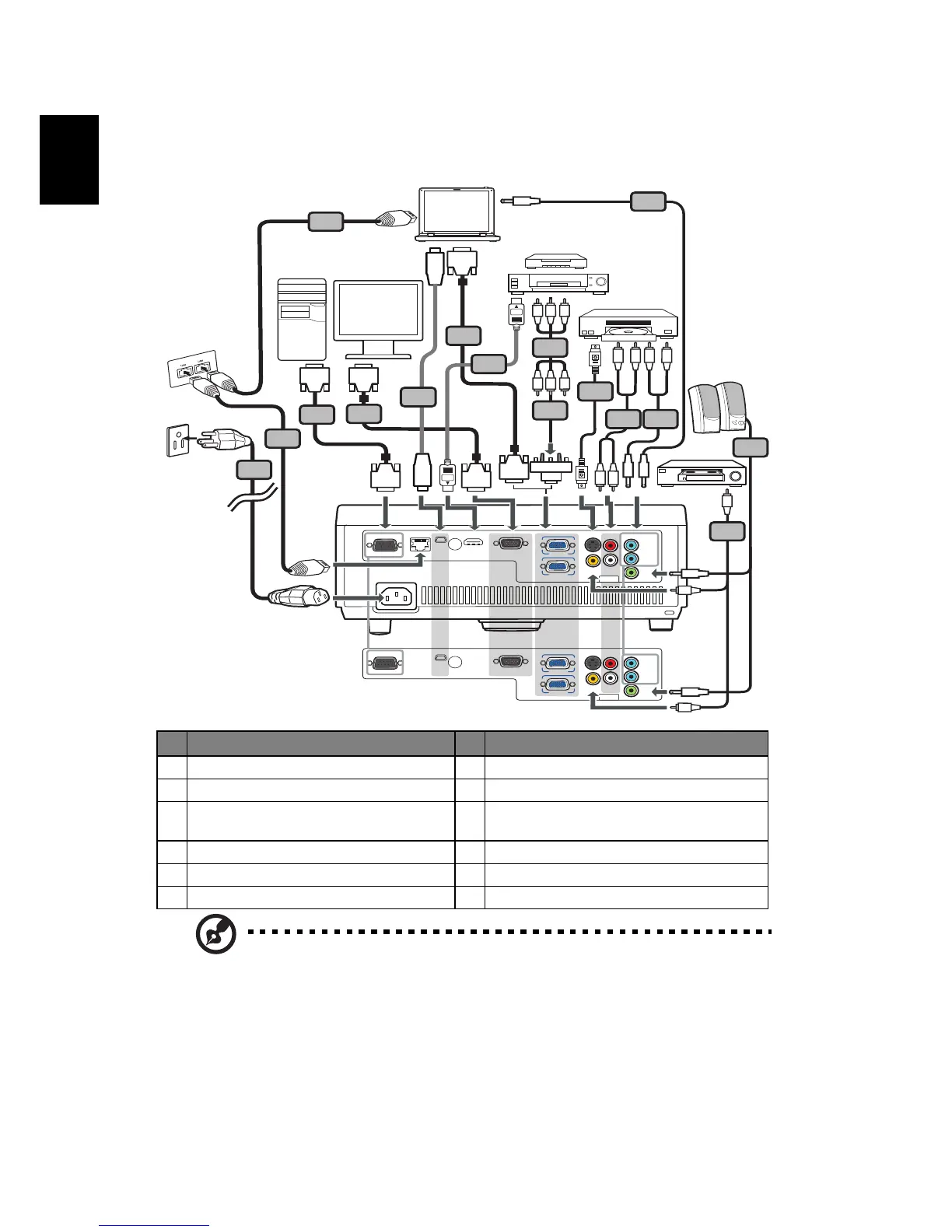

# Description # Description
1 Power cord 7 RS232 cable
2 VGA cable 8 USB cable
3 VGA to component video/HDTV
adapter
9 3 RCA component cable
4 Composite video cable 10 RJ45 cable
5 Audio cable 11 HDMI cable
6S-Video cable
AUDIO-R
AUDIO-L
AUDIO
IN 1
AUDIO
IN 2
AUDIO
OUT
VGA IN 1
VGA IN 2
VGA OUT
HDMI
USB B
LAN
RS232
S-VIDEO
VIDEO
AUDIO-R
AUDIO-L
AUDIO
IN 1
AUDIO
IN 2
AUDIO
OUT
VGA IN 1
VGA IN 2
VGA OUT
USB BRS232
S-VIDEO
VIDEO
USB
USB
S1213Hn
S1213
RS232
RBG
RBG
HDTV adapter
RS232
D-Sub
7
D-Sub
D-Sub
2
5 5
6
5
2
1
R W
R L
L
R
9
3
Y
10
10
11
8
D-Sub
4
Y
5
Y
DVD player,
Set-top box,
HDTV receiver
VGA
RS232
Video/S-
Video
Output
Display
Speakers
