Getting Started

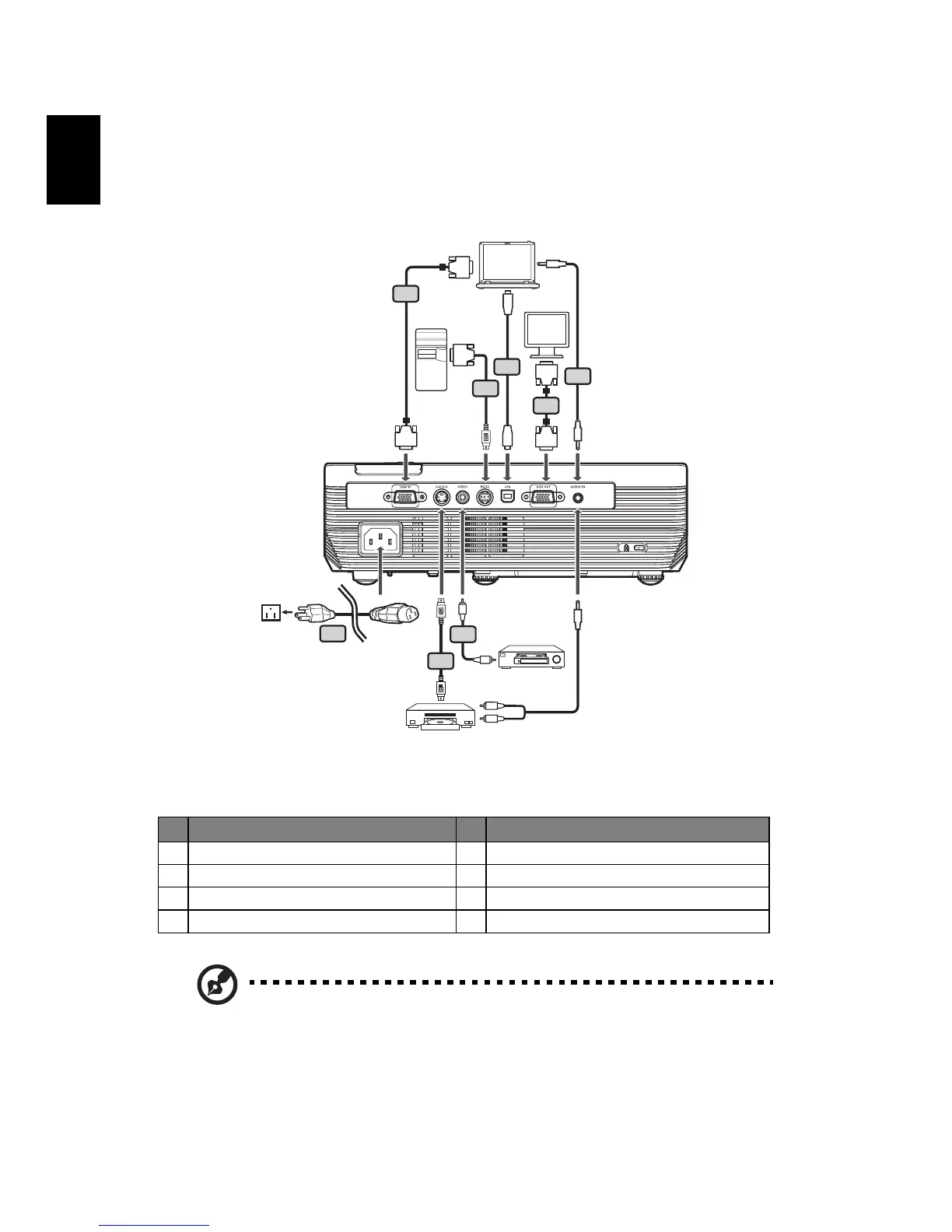

Connecting the Projector
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
# Description # Description
1 Power cord 5 S-Video cable
2 VGA cable 6 Audio cable jack/jack
3 Composite video cable 7 RS232 cable
4 USB cable
