The live conductors are fused within the mains filter of your unit. Their characteristics are:
Manufacturer Schurter AG
Model 5×20 mmSPTseries
Operating voltage 250 VAC
Ampere rating 4 A
Characteristic T
Breaking capacity 1.5 kA@250 VAC/10 kA@125 VAC

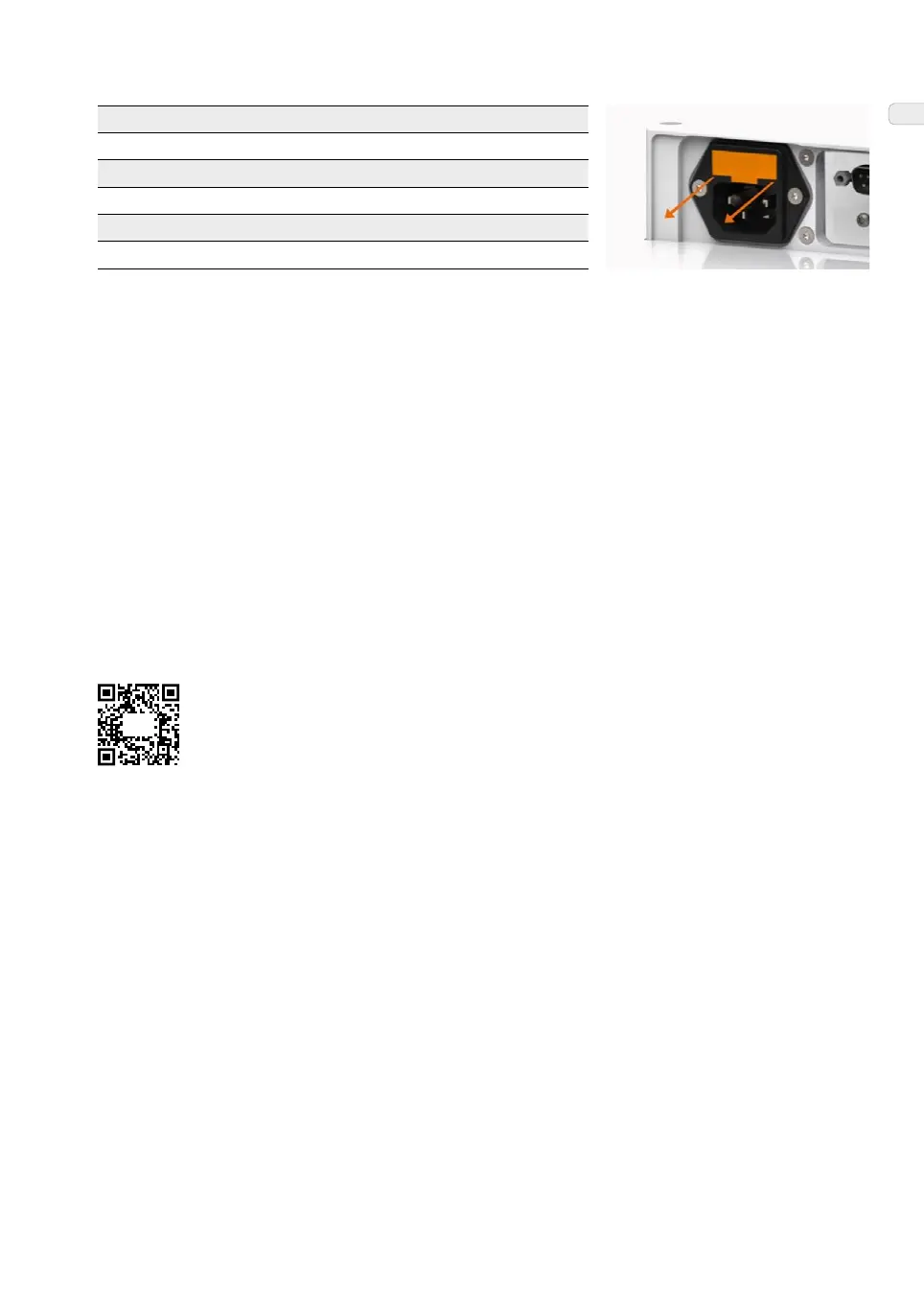

To change a fuse, remove the cover (orange) on your mains filter like indicated in the picture. The-
reafter, you can remove and replace your fuse.
Upon request, we will provide information to assist service personnel e.g. wiring diagrams, parts
lists, descriptions, calibration instructions or other information, if applicable.
5.5 Transport notes for ACL devices
Always use the original ACL transport packaging to avoid transport damage. If you don’t have
suitable packaging, we can send you the required materials for your unit.
Improper packaging can cause damage to individual components. Hence, ensure gentle hand-
ling during transport and loading. Ensure also that the transport conditions as described in the
devices‘ manual, section 3.2 and on the packaging label are met.
Detailed instructions on how to pack your unit, e.g. for return transport during a repair, can be
found on the ACL website at: https://www.acl.de/en/rma-request
