GB SPOT
SPOT - External central control unit for rolling shutter and awming
INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
ATTENTION
Read the instructions carefully before starting to install and programme the control unit.
Follow the instructions scrupulously. Incorrect installation may create serious risks. The
manufacturer declines all liability in the event of incorrect installation or improper use of
the product.
SUMMARY
1. DESCRIPTION OF THE PRODUCT
2. MOTHER RADIO CONTROL SWITCH MEMORISATION AND OPERATING LOGIC
3. ADDITION OF NEW RADIO CONTROL UNITS (TX2COLOR - TX4 - TXP - TX FLAT)
4. LOGIC OF FUNCTIONING OF THE CONTROL EXTERNAL PUSH BUTTON
5. PROGRAMMING OF A GLOBAL RADIO CONTROL SWITCH (
TX2COLOR - TX4 - TXP - TX FLAT)
6. CANCELLATION OF RADIO CONTROL CODES
7.
INSTALLATION OF THE ANEMOMETER WINDY
8. PROGRAMMING THE ANEMOMETER WINDY
9. INVERSION OF THE DIRECTION OF MOVEMENT
10. WARNINGS FOR INSTALLATION
11. TECHNICAL CHARACTERISTICS
12.
ELECTRICAL CONNECTION DIAGRAM
13. INDICATORS UNDER DEVELOPMENT

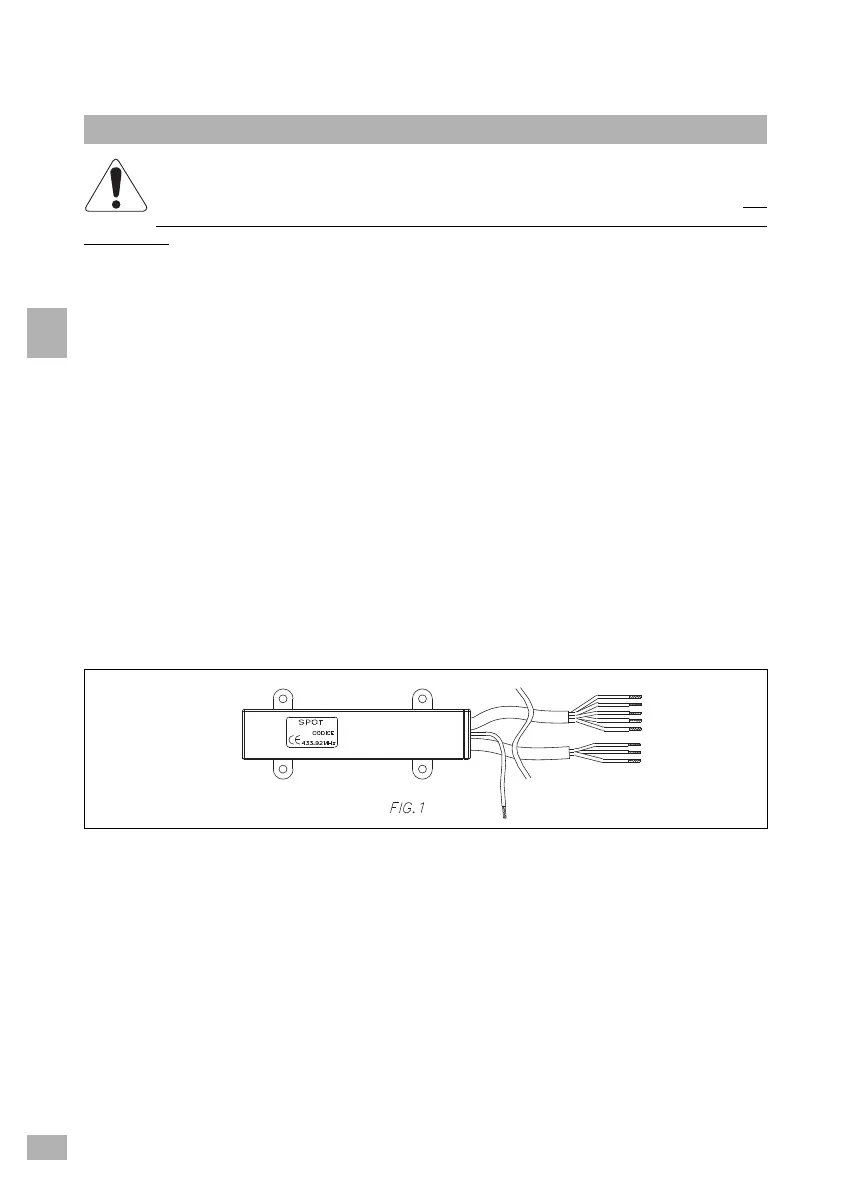

1. DESCRIPTION OF THE PRODUCT
The “SPOT” control unit is a system for automation of rolling shutter and awming with a radio receiver
super-heterodyne electronic card incorporated. The device is controlled by radio control code work-
ing in the 433,92 MHz frequency band.
2. MOTHER RADIO CONTROL SWITCH MEMORISATION AND OPERATING LOGIC
The first radio control switch to be memorised is known as the “MOTHER” and automatically acqui-
res the following characteristics:
- It establishes the roller window blind/awning direction of movement on the basis of the key used du-
ring the memorisation phase.
- It is the only radio control switch able to activate the programming phase.
If, memorising the mother radio control, are present other Spot central control on which no mother ra-
dio control is memorised, you should disconnect these central control from electrical alimentation to
avoid that several control units memorize the same mother radio control.
Follow the instructions provided on paragraph 9 if you wish to invert the operating logic of the “MO-
THER” radio control keys.
Proceed as follows to memorise the “MOTHER” radio control switch.
