If one wants to memorise additional radio control units, resume from point 2 above. If an attempt is
made to memorise more than seven radio control units (in addition to the “MOTHER”) the control unit

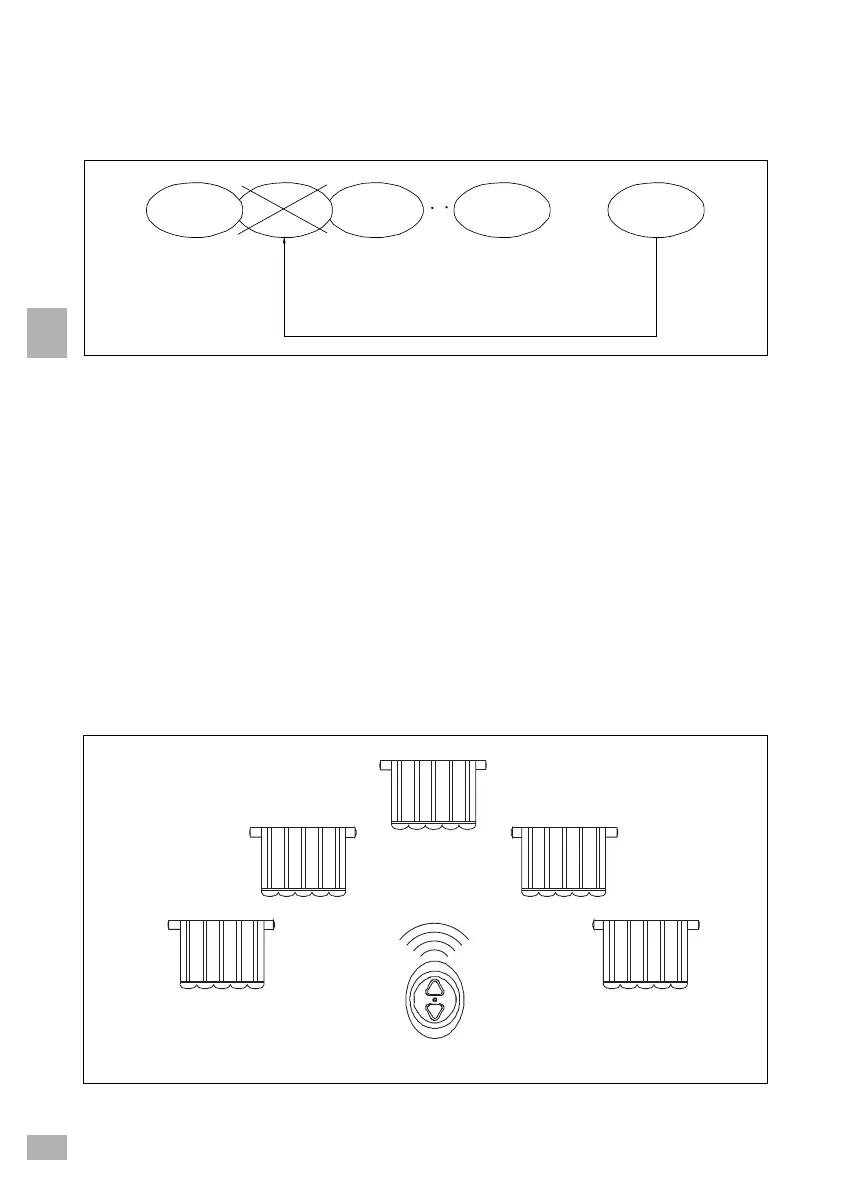

will cancel the first one memorised, and so on in sequence for further radio control units (see fig. 3).
4. LOGIC OF FUNCTIONING OF THE EXTERNAL CONTROL PUSH BUTTON
It is possible to install an optional external wall-mounted push button (low voltage 24 V d.c.) to move
the blind even without using the radio control unit. The logic of functioning is step by step. Every time
the push-button is pressed, the motor reducer executes the Up, Stop, Down, Stop actions sequential-
ly. The external push button must be connected to the red and black coloured wires. For its installa-
tion see the electrical connection diagram in paragraph 12.
5. PROGRAMMING OF A GLOBAL RADIO CONTROL SWITCH (TX2COLOR - TX4 - TXP - TX FLAT)
In an installation with a number of motorised blinds, there may be a need to have a single transmitter
mobile, denominated “GLOBAL”, see fig. 4, that can force opening or closure of all the group of blinds
simultaneously.
Before proceeding to memorise a “GLOBAL” RADIO CONTROL CODE on each control unit, all the
“MOTHER” RADIO CONTROL CODE must be coordinated for direction of movement of the blinds,
that is, they must all have the UP key for movement up and DOWN for movement down.
Proceed to memorise the “GLOBAL” RADIO CONTROL CODE in the way indicated in paragraph 3
for all the blinds to be moved.
