GB SPOT
13
1. Connect the control unit to the power supply;
2. Press and hold down both buttons of the radio control (“PROG” button for TXFLAT) until two brief
movements of the blind/awning (one up and one down) are observed. This indicates that Spot is in
programming mode.
3. Press a key on the “MOTHER” radio control switch to be memorised. At this point the Spot
memorises the “MOTHER” radio control switch and automatically exits from programming
mode.
Pressing the “UP” button of the radio control unit raises the blind, whereas pressing the “DOWN” but-
ton lowers it. When the blind is moving, pressing the “STOP” button will halt movement of the blind.
When the UP button is pressed in the resting position, the blind is raised. Pressing the same button
again will have no effect and the blind will continue its run. On the other hand, if the DOWN button
is pressed the blind stops. Vice versa for the down run.

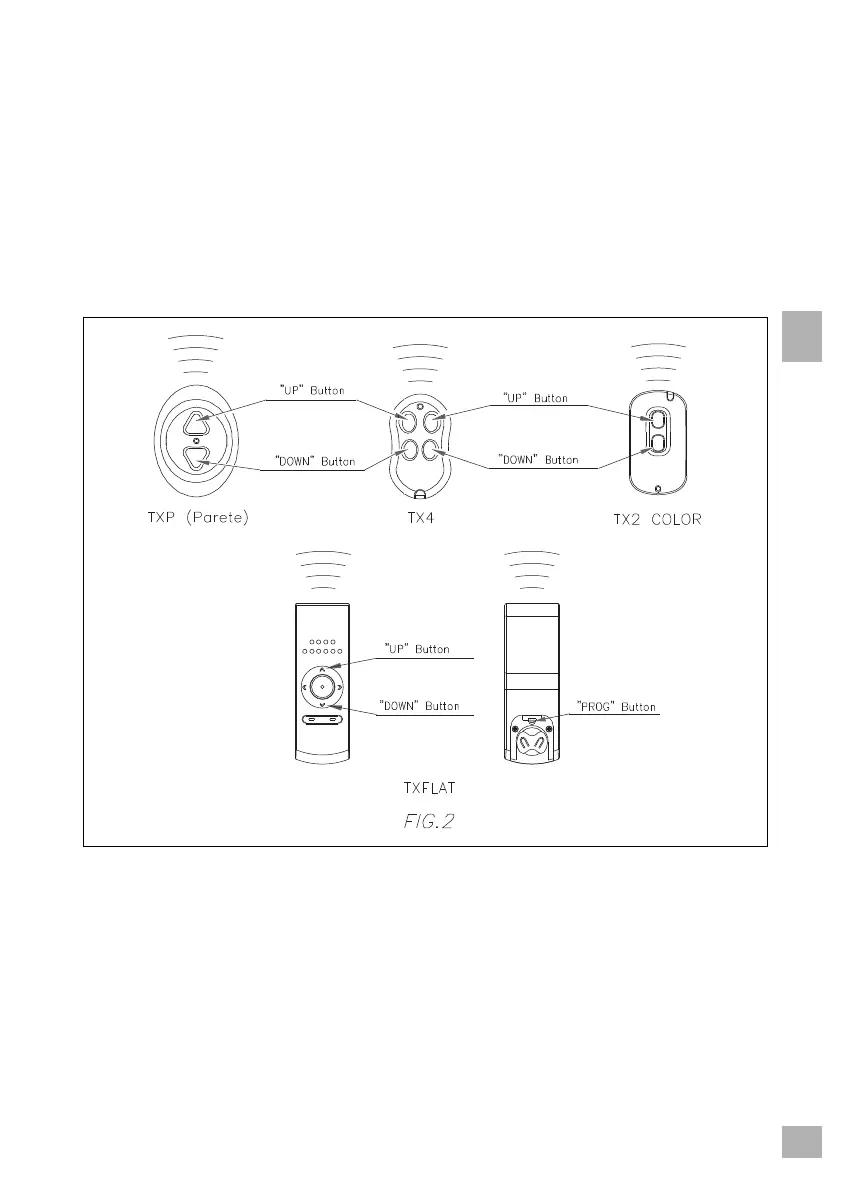

3. ADDITION OF NEW RADIO CONTROL UNITS (TX2COLOR - TX4 - TXP - TX FLAT)
The “SPOT” electronic control unit can memorise other twenty radio commands in addition to the
“MOTHER”. In case you wish to add new codes in the receiver, the following procedure must be
followed.
1. Connect the control unit to the power supply;
2. Press and hold down both buttons of the “MOTHER” radio control unit until the motor control unit
signals the start of programming
1
through two brief movements of the blind roller shutters, one up-
wards and the other downwards.
3. Press a key on the new radio control unit to be memorised. At this point the central control unit
memorises the new radio control unit and exits automatically from programming status.
1
Programming status can be entered only through the “MOTHER” radio control
