16
GB SPOT
The installer must provide for protection of the device by means of a differential magnetothermic
breaker (with at least 3 mm distance between the contacts) that ensures separation of all poles from
the mains in the event of a fault.
In the event of a fault, the wiring supplied with the device must be replaced by the manufacturer or
by qualified personnel.
11. TECHNICAL CHARACTERISTICS
Power supply: 230 V AC
Relay contact rating: 5 A
Receiver sensitivity – 105 dBm for S/N = 17 dB with carrier modulation 100%.
Power supply to external push button: 24 V DC
Motor working time: 120 s
The manufacuturer declares the SPOT conforms to Directive 99/05 and that the standards shown in
the table have been applied.
Electrical safety Electromagnetic compatibility
Efficacious use of the spectrum
EN 60335 I ETS 300 683 EN 300 220-3

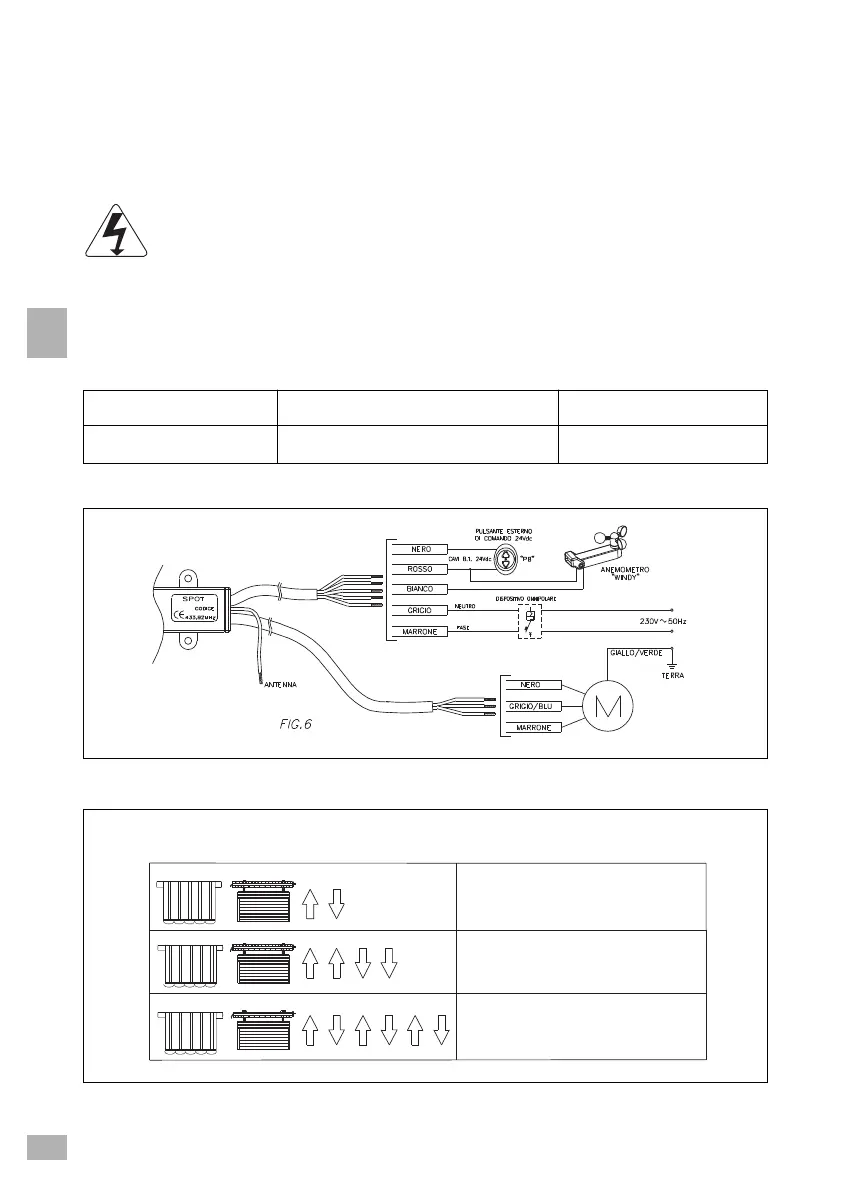

12. ELECTRICAL CONNECTION DIAGRAM
13. INDICATORS UNDER DEVELOPMENT
SPOT INDICATES THE PROGRAMMING STATUS THROUGH THE MOVEMENT OF THE BLIND
SPOT IS WAITING TO RECORD A NEW RA-
DIO COMMAND OR TO REVERSE THE DI-
RECTION
SPOT INDICATES THAT THE DIRECTION
HAS BEEN REVERSED (INSTALLED TO
THE LEFT)
SPOT INDICATES THAT ALL RADIO
COMMAND CODES HAVE BEEN
CANCELLED
