4. Description
4.1 Description of the fixture
For transportation protection, please set the tilt lock/unlock (2) and the pan lock/unlock
lever (3) in the lock position before any transportations. To unlock the head, move the tilt
lock/unlock (2) and the pan lock/unlock lever (3) to unlock position.
Caution: The head and arm must be unlocked before operation!

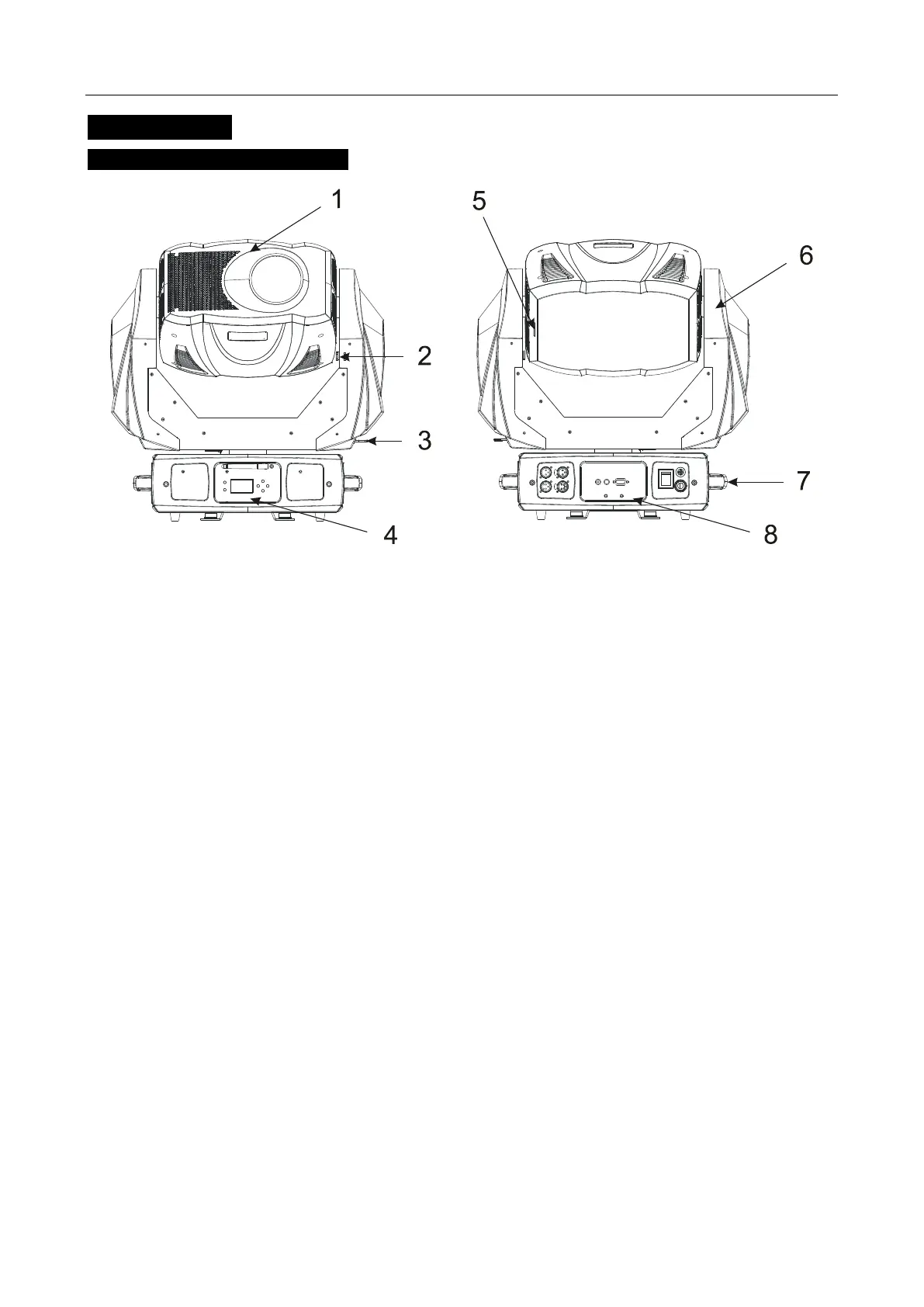

1. Head
2. Tilt lock
3. Pan lock
4. Front panel
5. Memory card slot
6. Arm
7. Handle
8. Back panel
