5. CONE
The collimator cone or Beam Limiting Device represents the applied part of the device. Made of transparent
polycarbonate, or alternatively of lead-coated polycarbonate, it ensures:
- the correct distance between focal spot and skin
- dimension, direction and centering of X-ray beam
- the realization of different radiographic technique (biting and parallel technique).
During X-ray exposition, the collimator cone comes in contact with the skin of the patient.
Before each exam, it is necessary to apply to the cone a disposable protective cover designed to cover the end
part of the X-ray generator.
Such protection is useful to avoid crosscontamination (from patient to patient).
2.2.1. OPTIONAL ACCESSORIES
►SECOND CONTROL BUTTON
►x-mind ac LIGHT
(Rx signalling lamp for external use)
►x-mind ac ECB
(remote control button)
2.3. IDENTIFICATION TAGS
The identication tags on the tubehead, on the timer and on the cone indicate the model number, the serial
number, the manufacturing date and the main technical characteristics.

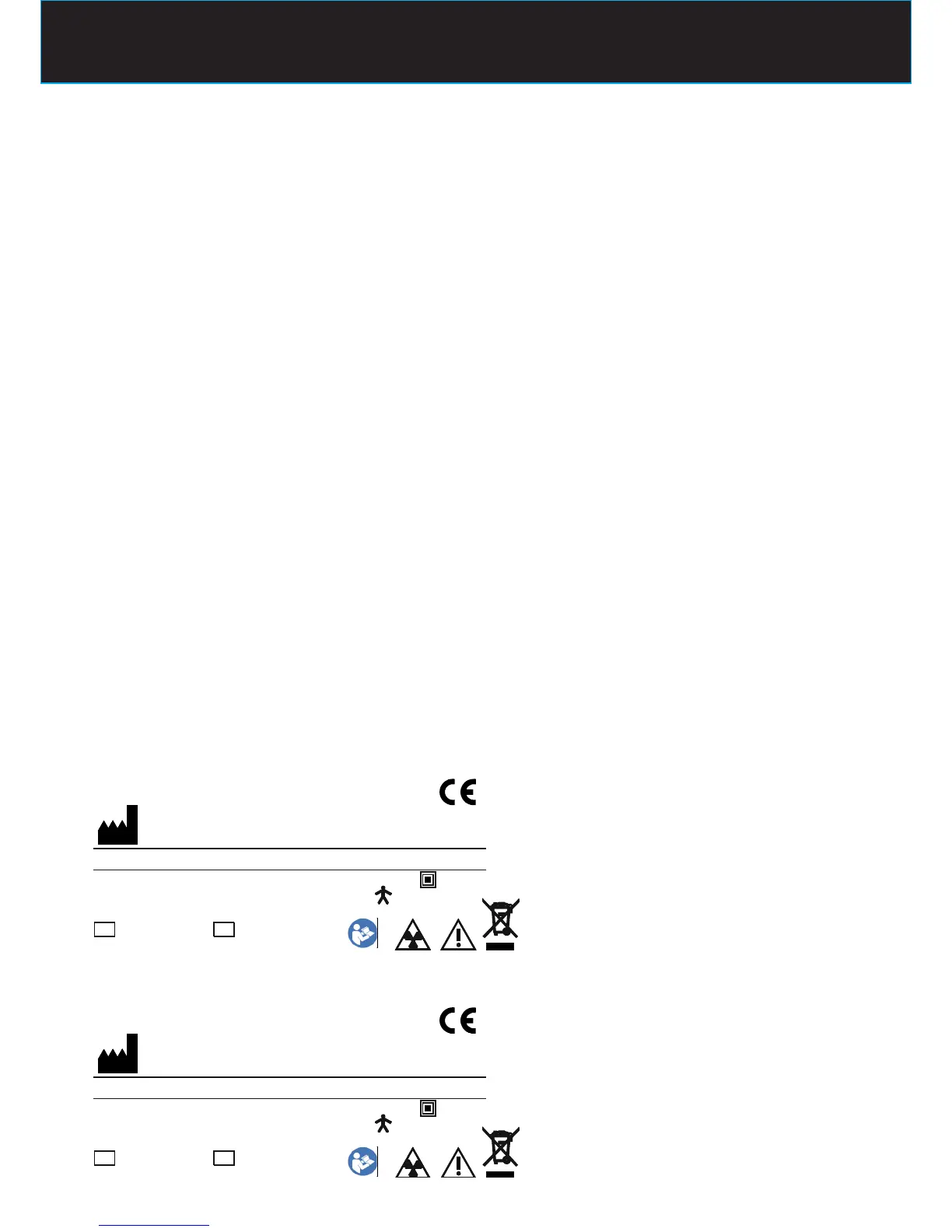

2.3.1. TUBEHEAD
Model 230 V
Model 220 V
Model 115 V
Model: x-mind ac
®
de Götzen S.r.l.
®
Via Roma 45 - 21057 Olgiate Olona (VA) - ITALY
70kVp 8mA
230V ~ 50/60Hz
TOSHIBA DG-073B-AC
Rated line voltage:
X-ray tube:
Total filtratio n: 2,3mm Al / 70kV 0.7mm
Class I
tube:
SN SN
0477
Model: x-mind ac
®
de Götzen S.r.l.
®
Via Roma 45 - 21057 Olgiate Olona (VA) - ITALY
70kVp 8mA
220V ~ 50/60Hz
TOSHIBA DG-073B-AC
Rated line voltage:
X-ray tube:
Total filtratio n: 2,3mm Al / 70kV 0.7mm
Class I
tube:
SN SN
0477
