CONFIGURATION
3.1. CONFIGURATION
The “x-mind ac” radiographic system is provided in the “standard mode” conguration.

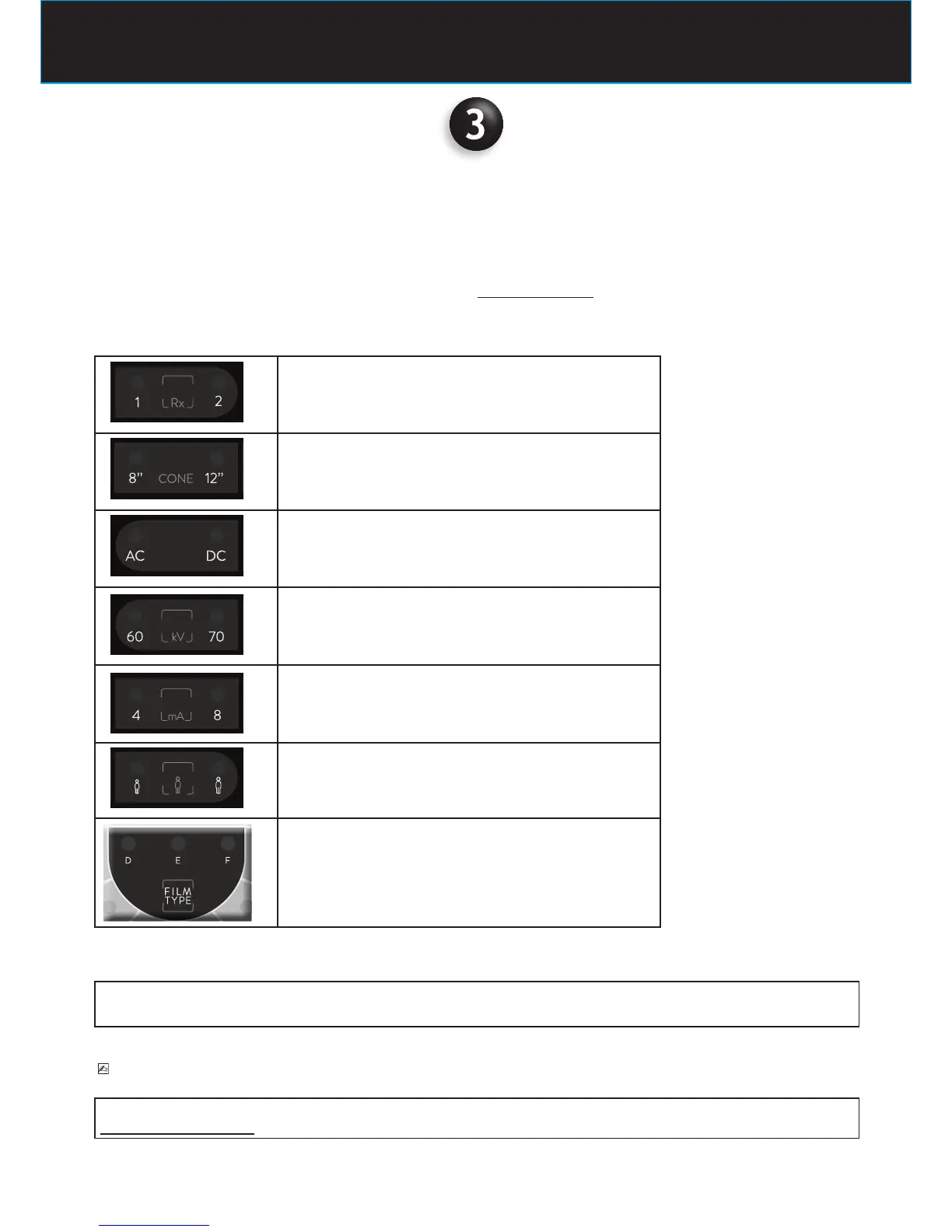

On the control panel the LED relevant to the following exposure parameters will light up:
No. of the selected tubehead
LED 1
supplied cone
LED 8” = SHORT CONE
LED 12” = LONG CONE
Type of tubehead
LED AC = ALTERNATE CURRENT
radiographic voltage
LED 70kV
radiographic current
LED 8mA
type of patient
LED ADULT
radiographic technique
CONVENTIONAL LED D
The following exposure times (s) have been stored:
0,080 – 0,100 –0,125 – 0,160 – 0,200 – 0,250 – 0,320 – 0,400 – 0,500 – 0,630 – 0,800 – 1,00 – 1,250 – 1,600 – 2,000
– 2,500 – 3,200
PLEASE NOTE
These times are in compliance with current CEI EN 60601-1: 2007 standard and with the ISO 497 series R’10 recommendations.
THEY CANNOT BE MODIFIED
