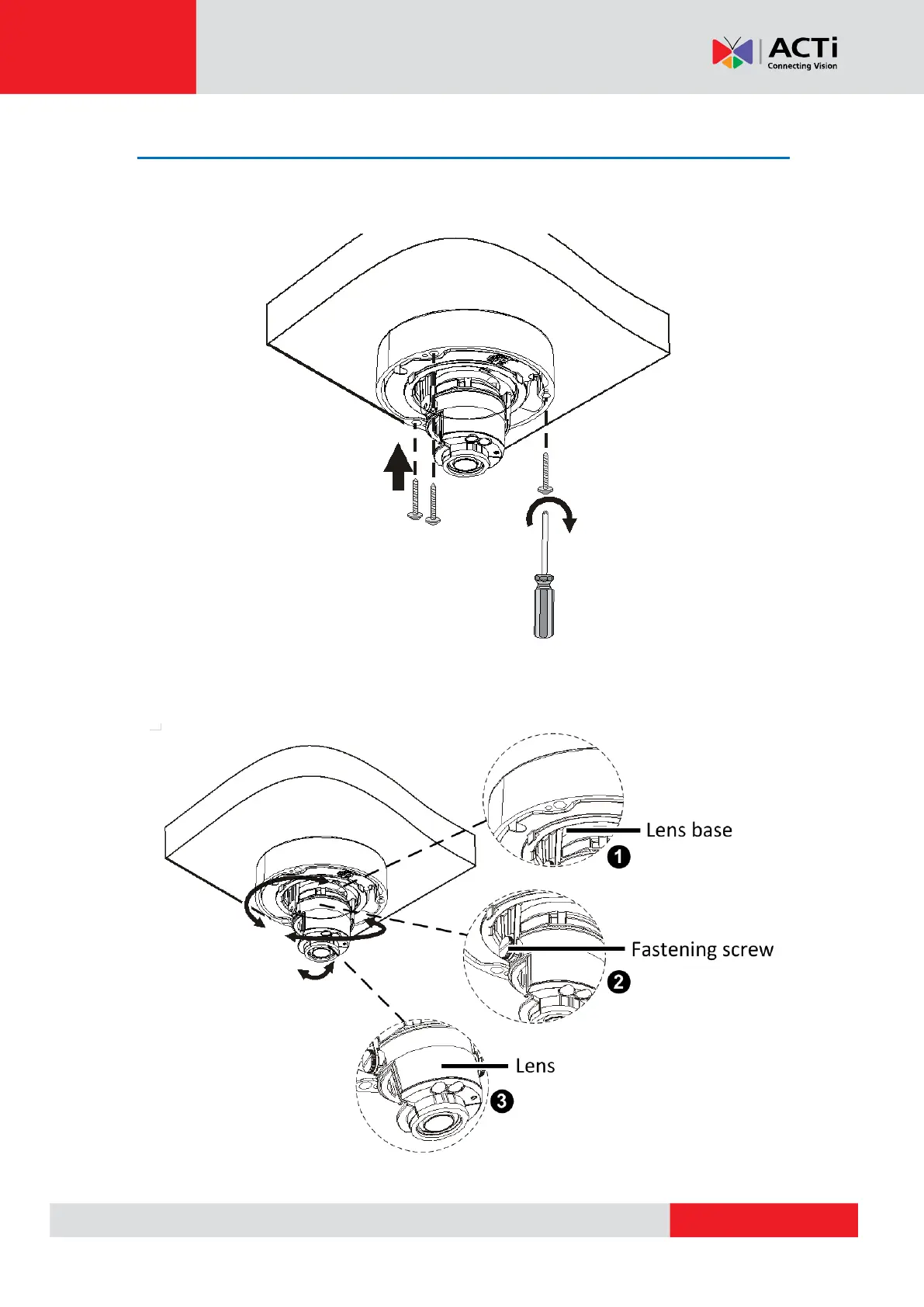

Step 3: Mount the Camera
1. Mount the camera to the surface using the three (2) bundled screws.
2. Pan and adjust the camera tilt angle, as needed.
Rotate horizontally to
pan the camera
Loosen the screw to tilt
the camera lens
Rotate horizontally to rotate
the lens viewing angle
