www.acti.com
Hardware Manual
20

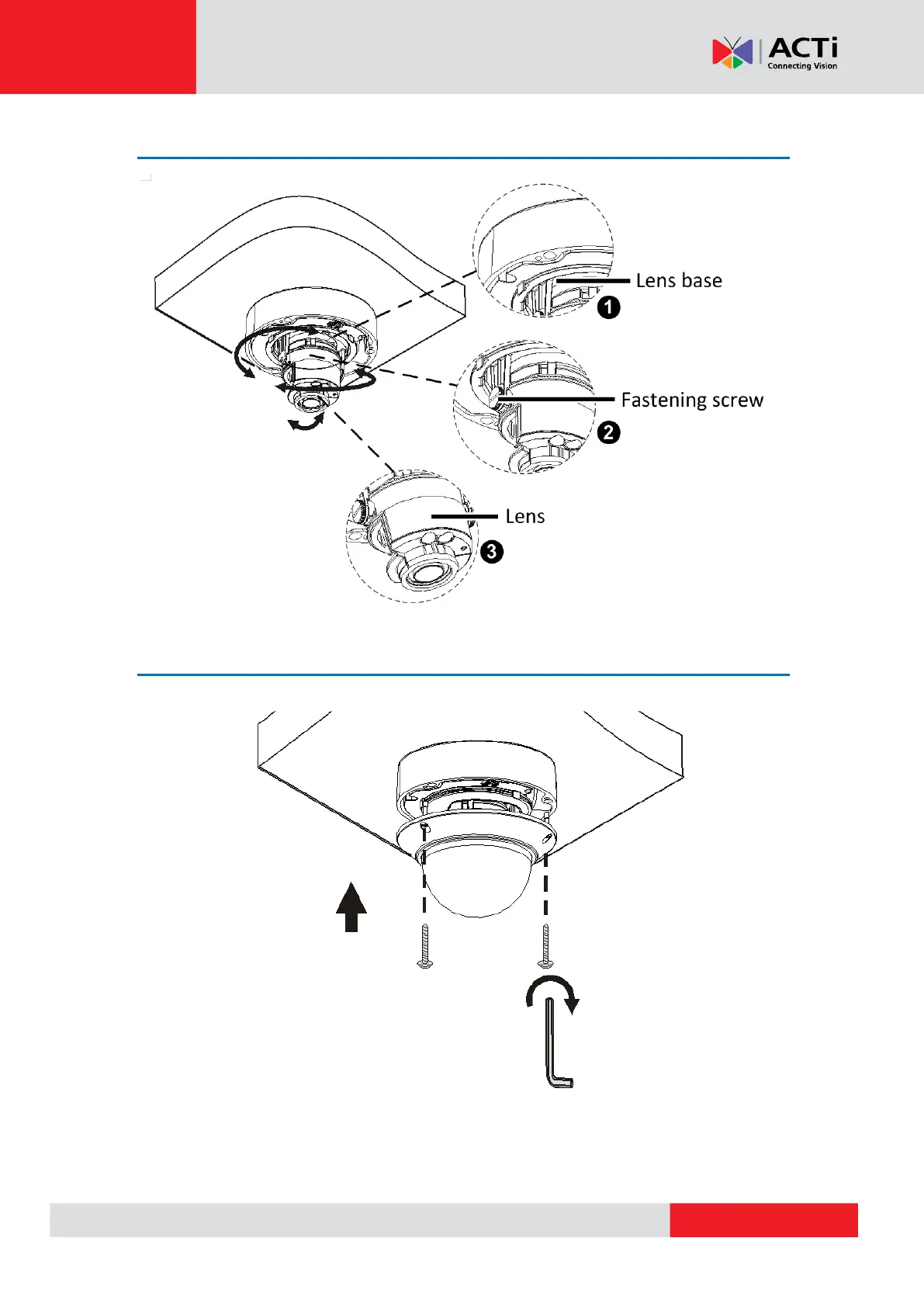

Step 7: Adjust the Viewing Angle and Orientation
Step 8: Close the Dome Cover
Rotate horizontally to
pan the camera
Loosen the screw to tilt
the camera lens
Rotate horizontally to rotate
the lens viewing angle
