100S Reference Manual

REFERENCE

100S uses positive and negative numbers to determine the position of

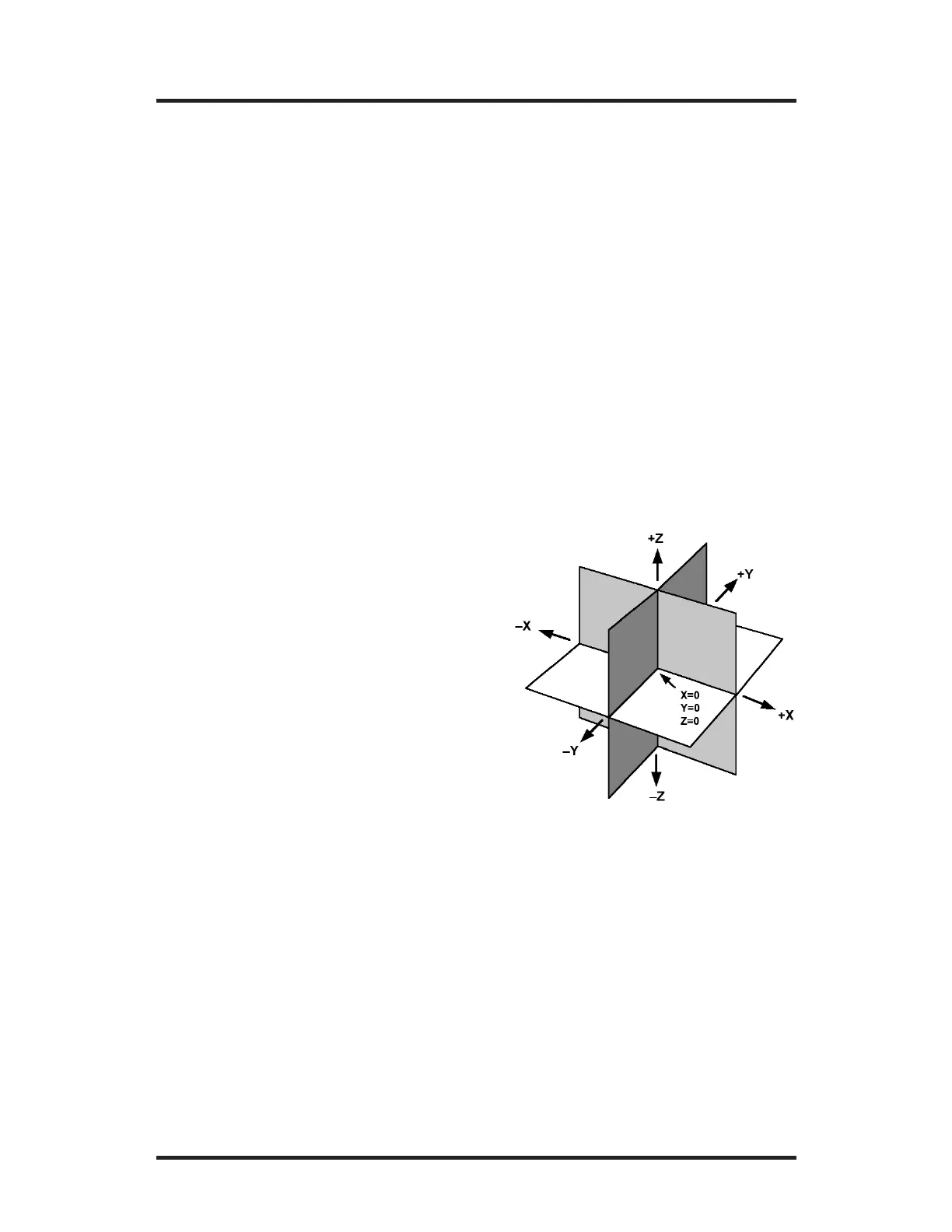

the table and tool on each axis. The graphic below shows a typical

setup for the positive and negative count directions for the X-, Y-, and

Z-axes on a vertical knee mill. All of the examples in this manual are

based upon this setup.

X-axis:

The table will move to the left and the

tool will move to the right for a posi-

tive count direction.

Y-axis:

The table will move toward you while

the tool moves away from you for a

positive count direction.

Z-axis:

The quill will move up (away from the

table surface) for a positive count

direction.

Count Direction

Conventions

This section identifies the standard conventions that apply to your 100S

system.
