I – 1 Introduction to VUE
VUE Hard Keys
Hard keys on the VUE readouts vary depending on the number of axis
the readout includes. A one axis readout will only have the first three
hard keys shown below. A two, or three axis readout will have all the
hard keys shown below.
The last two keys are specific to a VUE readout that is either for
milling, or turning. The first symbol applies to a milling readout, and the
second symbol applies to a turning readout.

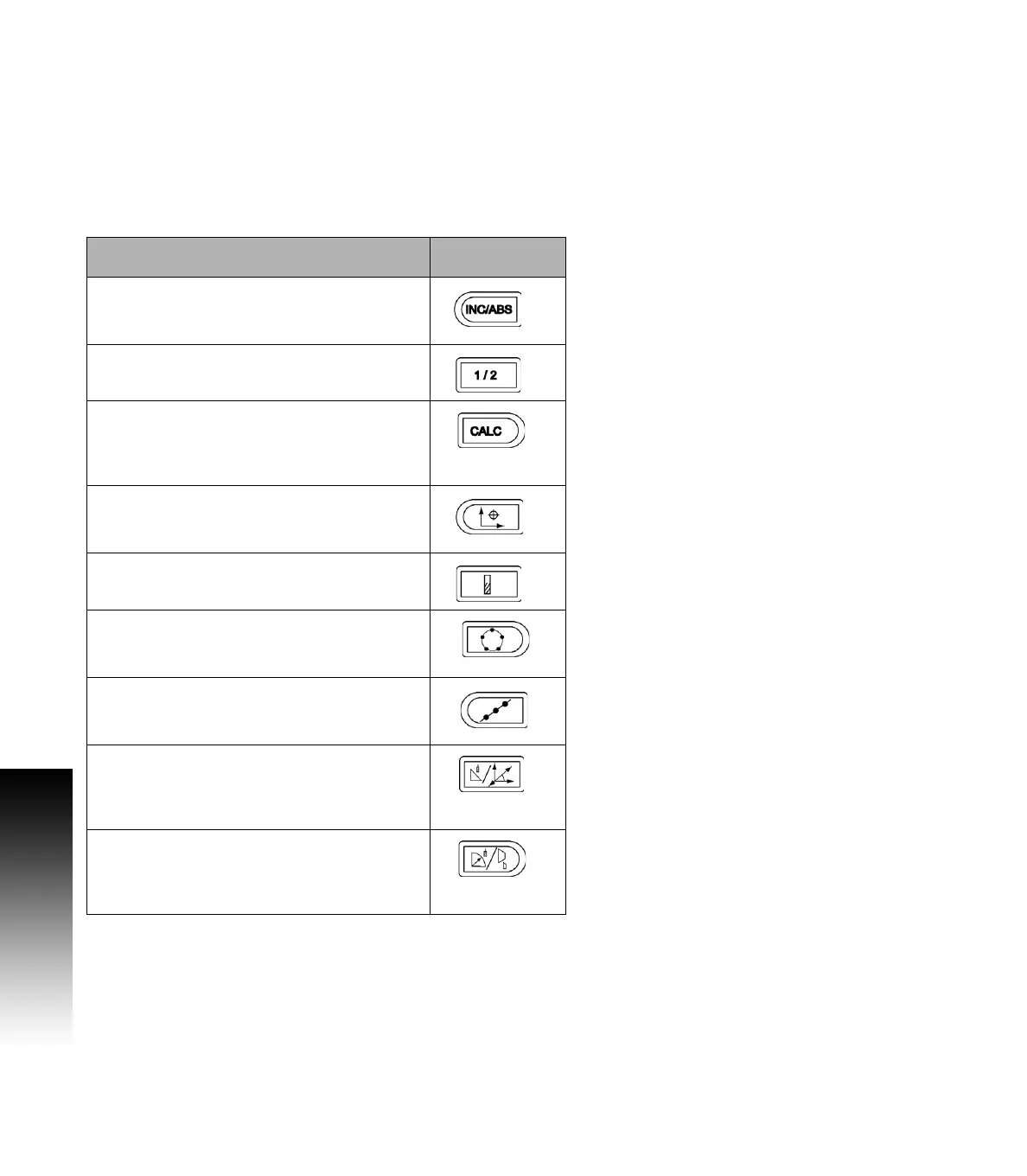

Hard Key function Hard Key
Symbol
Switches display between operating modes:
Distance-To-Go (Incremental) / Actual Value
(Absolute) (see page 3).
Used to divide the current position by two (see
page 15).
The CALC hard key opens the Calculator
functions for standard math, trigonometry,
RPM, and Taper (Turning only) functions (see
page 26).
The DATUM hard key opens the Datum form to
set the datum for each axis (for Milling see
page 10, for Turning see page 24).
The TOOL hard key opens the Tool Table (for
Milling see page 8, for Turning see page 22).
The CIRCLE PATTERN hard key (Mill only)
opens the Circle Pattern form. This calculates
the hole positions (see page 15).
The LINEAR PATTERN hard key (Mill only)
opens the Linear Pattern form. This calculates
the hole positions (see page 15).
The INCLINE MILLING hard key (Mill) /
VECTORING hard key (Turn) opens the Incline
milling forms (see page 18), or the Vectoring
form (see page 28).
The ARC MILLING hard key (Mill) / TAPER
CALC hard key (Turn) opens the Arc milling
forms (see page 17), or the Taper Calc form
(see page 26).
