II – 3 Dimensions

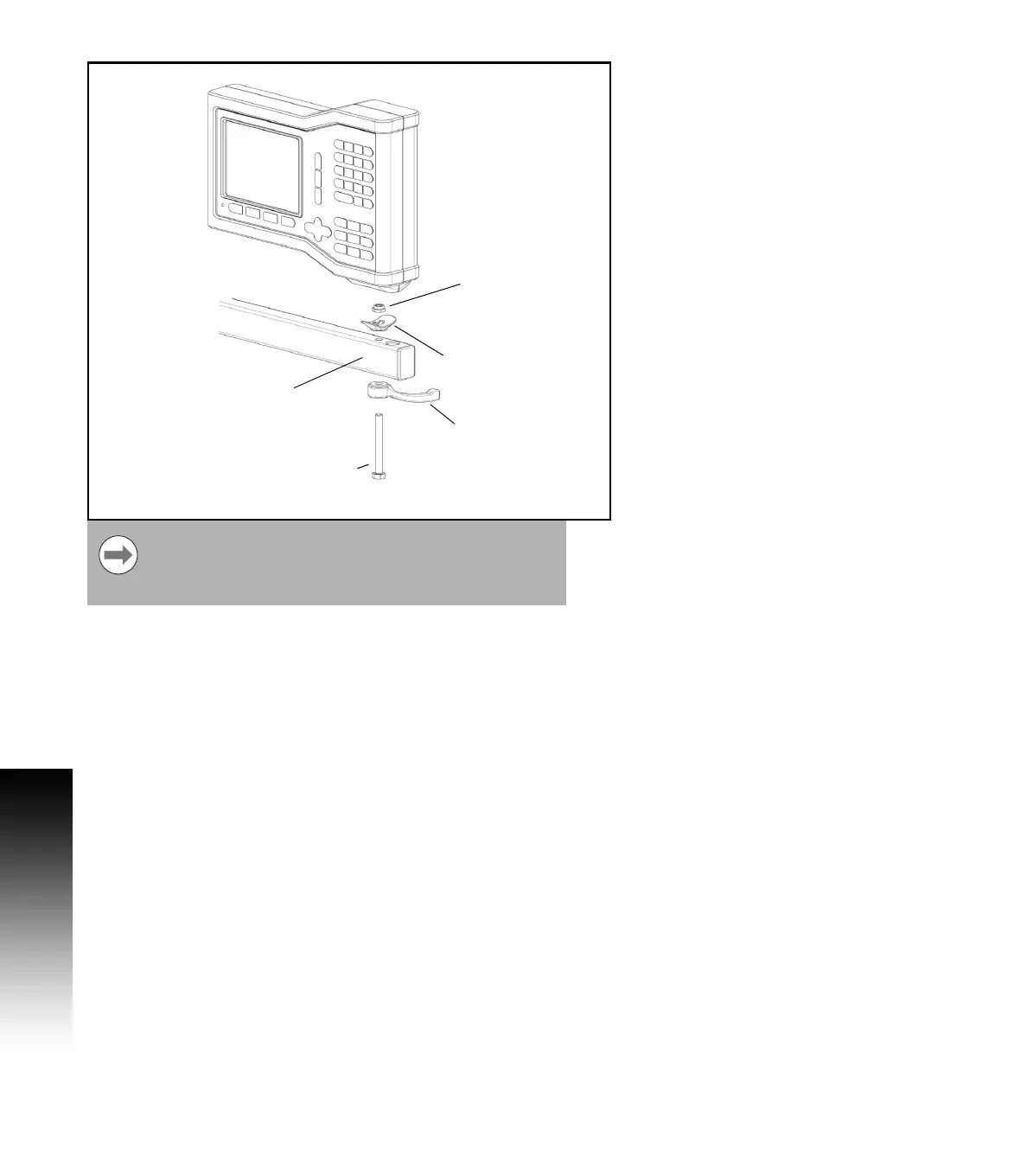

M8 x 70mm Mounting bolt
(included with DRO)
Handle
(included with DRO)
Read out mounting arm
options (not included)
M8 Lock nut
(included with DRO)
Tilt / Swivel Feature
(included with DRO)
The DRO mounting base incorporates a slot feature that
prevents the lock nut from turning. Pre-attach the
mounting bolt and slip it into the base. Secure the DRO by
tightening the handle.
