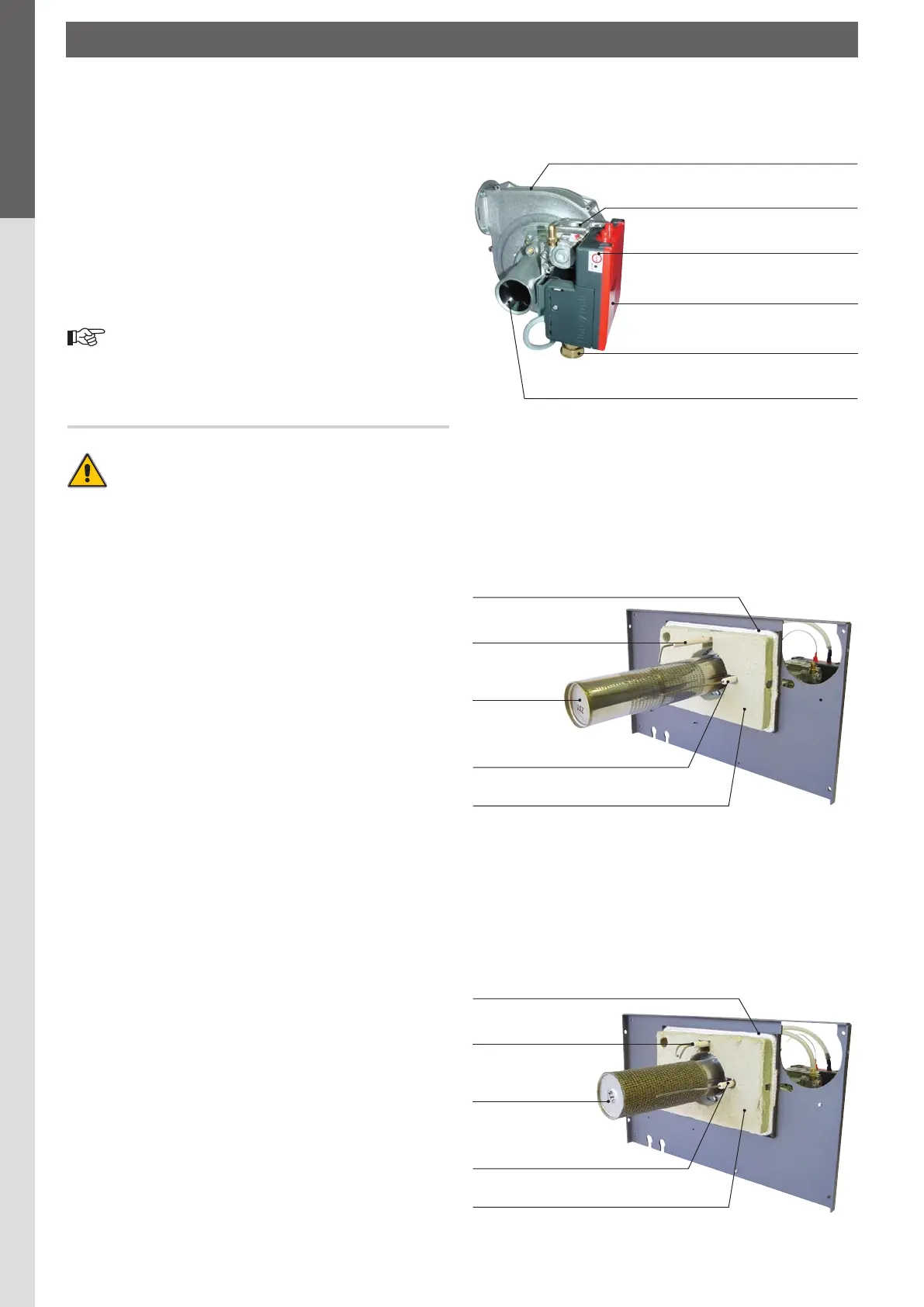

DESCRIPTION OF THE BURNER
GasburnerzACVBG2000-S/SV
ACV BG 2000 air/gas premix burners are equipped with a gas
valve, a venturi and a Honeywell electrical control relay. These
items have been specially developed for low NOx air/gas premix
burners with automatic ignition and flame detection.
GasburnerACVBG2000-M/MV
The ACV BG 2000-M/MV burner is based on the technology
of the ACV BG 2000-S/SV burner but offers the benefits of a
modulating burner.
The burner's output is constantly adjusted to suit the fluctuating
demand for heat, thus optimising operating efficiency.
 BG 2000-S/SV/M/MV burners are preset in our
factoryforusewithnaturalgas(equivalenttoG20).
CONVERSIONTOPROPANE:
(refertotheconversioninstrucions)
 ProhibitedinBelgium.
Conversion kit supplied with the boiler comprises:
- Orifice(s).
- Propane rating plate(s).
- Self-adhesive settings label.
- Conversion instructions.
Keytoburner:
1. Fan
2. Gas valve
3. Burner reset (also on the control panel)
4. Control / monitoring relay
5. Female gas connector 3/4”
6. Venturi
7. Burner chamber plate sealing cord
8. Ignition electrode
9. Burner tube
• stainless steel for S/SV models
• stainless steel + NIT for M/MV models
10. Ionisation electrode
11. Burner chamber plate insulation
BURNER BG 2000-S/SV/M/MV
BURNER BG 2000-M/MV
BURNER BG 2000-S/SV
9
10
11
8
7
9
10
11
8
7
BuRNER CHARACTERISTICS
1
2
3
4
5
6
