23
CONNECT YOUR PRODUCT
EXPERT TIPS. Disconnect the mains power before connecting any of the inputs below.

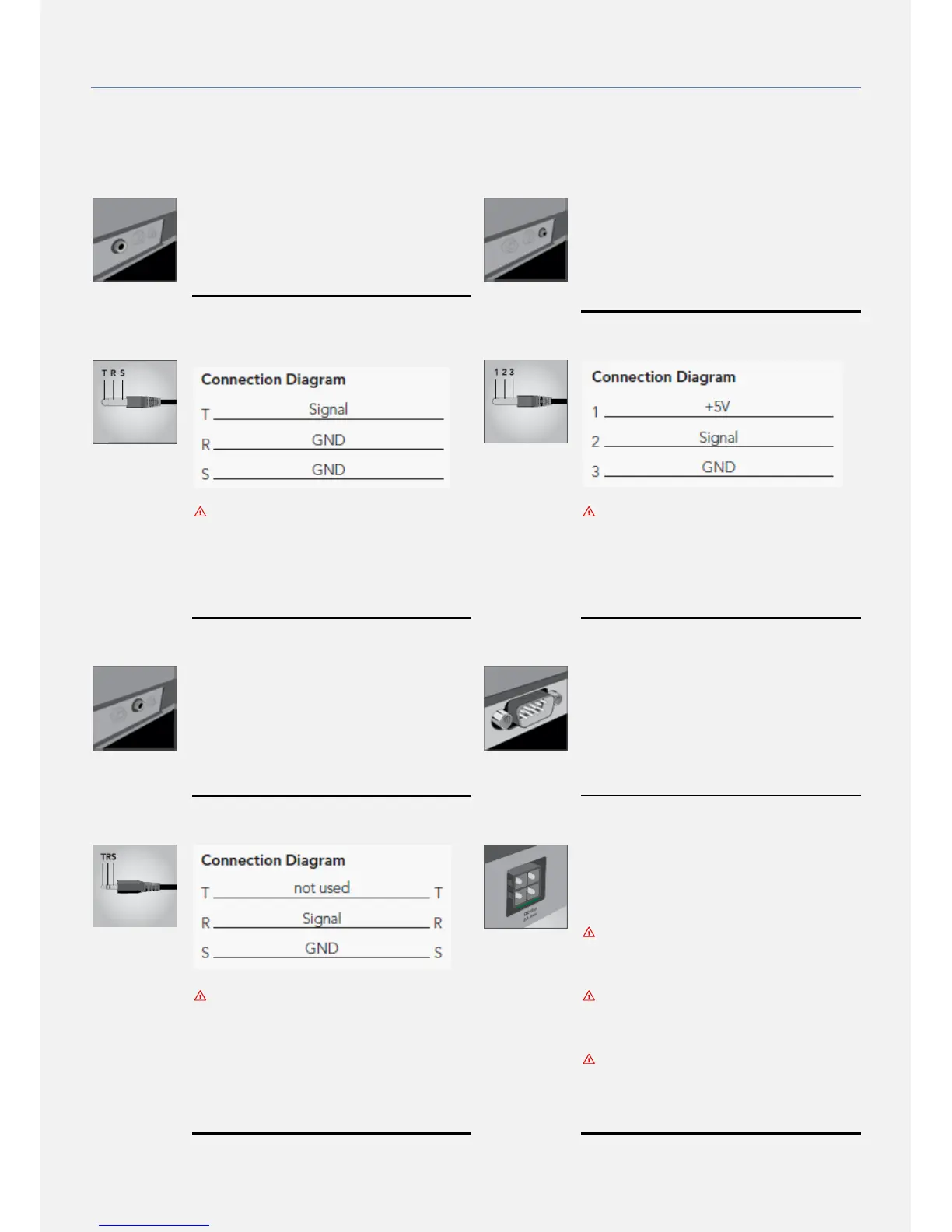

EXTERNAL CONTROL
IR IN
An external IR receiver might be needed in
some applications. Once needed please
connect it to the IR In port.
IR OUT2 (LED)
An external IR emitter might be needed in
some applications. This output will loop-
through all IR signal received by the built-in IR
receiver and will allow controlling external
devices. Once needed please connect it to the
IR out (LED) port.
When an external IR Receiver is
connected to the IR In port, the screen's
built in IR receiver is disabled. Use only
the IR receiver supplied with your
product. Using other IR receiver may
damage your product.
Use this port once the external device is
equipped with an IR Input socket. Due to
lack of standard for IR cable connection
please consult with your external device
provider for compatibility before making
any connection.
IR OUT 1 (CABLE)
An external IR emitter might be needed in
some applications. This output will loop-
through all IR signal received by the built-in IR
receiver and will allow controlling external
devices. Once needed please connect it to the
IR out (CABLE) port.
RS232
The RS232 port can be used by external
devices (eg. home automation). IR commands
received by in-built IR receiver generate a
feedback string for RS 232. RS232
default baud rate is 34800. For more info visit
our website at: www.ad-notam.com
DC OUT (5V/12V) (not available in all models)
Use this output to feed DC power to SINGLE
external playout devices (DTB, IPTV, etc.)
Use on screen display (OSD) menu
(SERVICE SETTINGS) in order to (de)
activate this port.
Use this port once the external device is
equipped with an IR receiver. Locate its
position and attach the IR emitter in front
of it. Use only the IR emitter supplied
with your product. Using other IR emitter
may damage your product.
The DC OUT port is designed to be used
with SINGLE playout device. Never
connect more than one device.
The DC OUT port will feed 5VDC or
12VDC device with 2A MAX. Never
connect a device whose power input
differs from the above specifications.
