3.4.3 X-ray generator
The X-ray generator (see Figure 3.8) is intended for generating the X-ray beam with the
specified field geometry and given exposure parameters for full height person scanning.

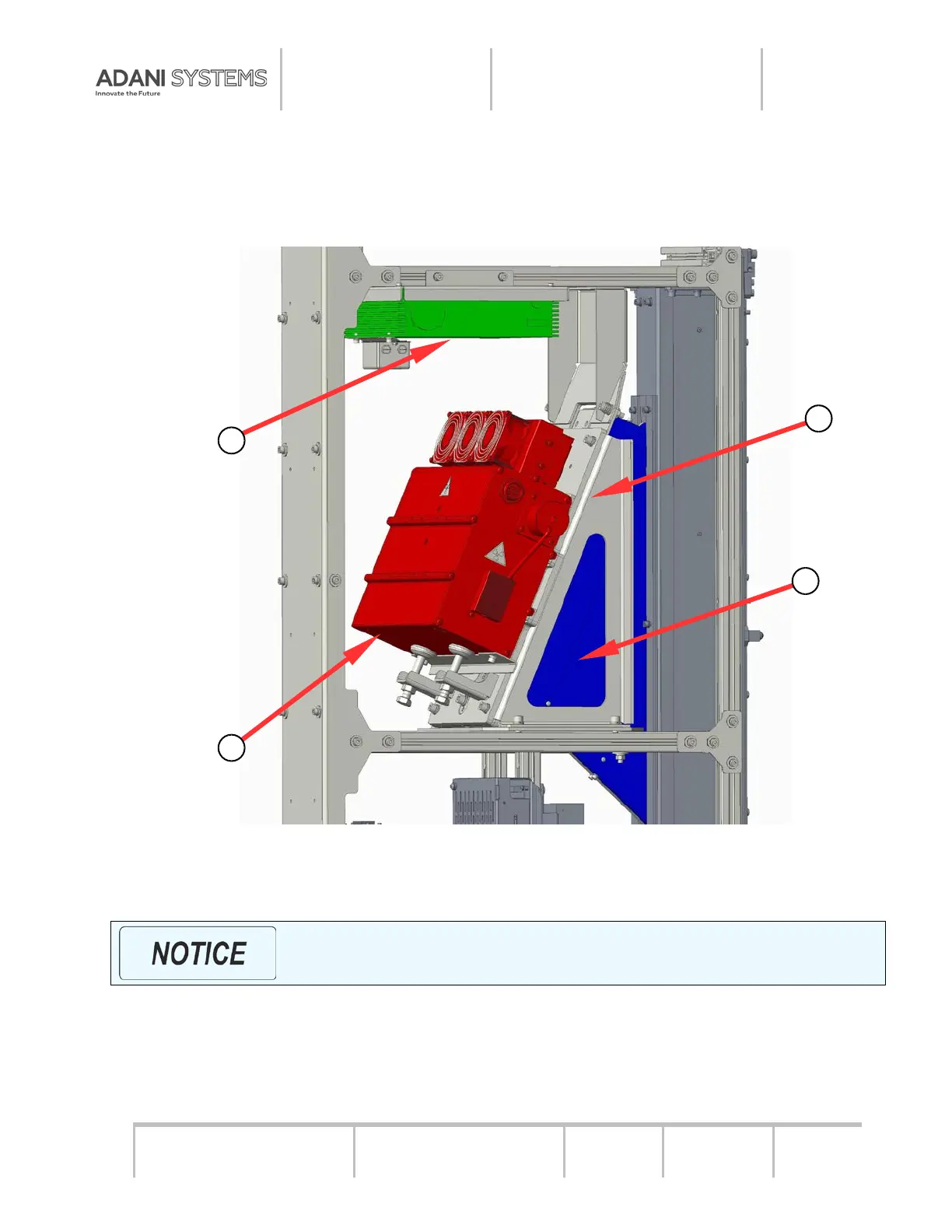

1 – X-ray Generator; 2 – Generator Control Unit; 3 – X-ray Generator Mounting Mechanism;
4 – Beam Limiting Unit
Figure 3.8 – X-ray Generator
The X-ray generators are inherently protected, disabling the X-ray radiation emission
outside the generator housing. The X-ray generators have an output slit for the X-rays. From
that slit the radiation is collimated with the required geometry by a beam limiting unit specially
designated for that.
1
2
3
4
The System may be equipped with different types of X-ray generators.
