Adastra A22 - Page 2

953.422UK User Manual
Introduction
Thank you for choosing the A22 to power your sound system. This compact digital amplifier
has been designed to provide a flexible background music and public address solution in a
discreet and easy-to-use format. Please read and keep this user manual to achieve the best
results from your equipment and avoid damage through misuse.

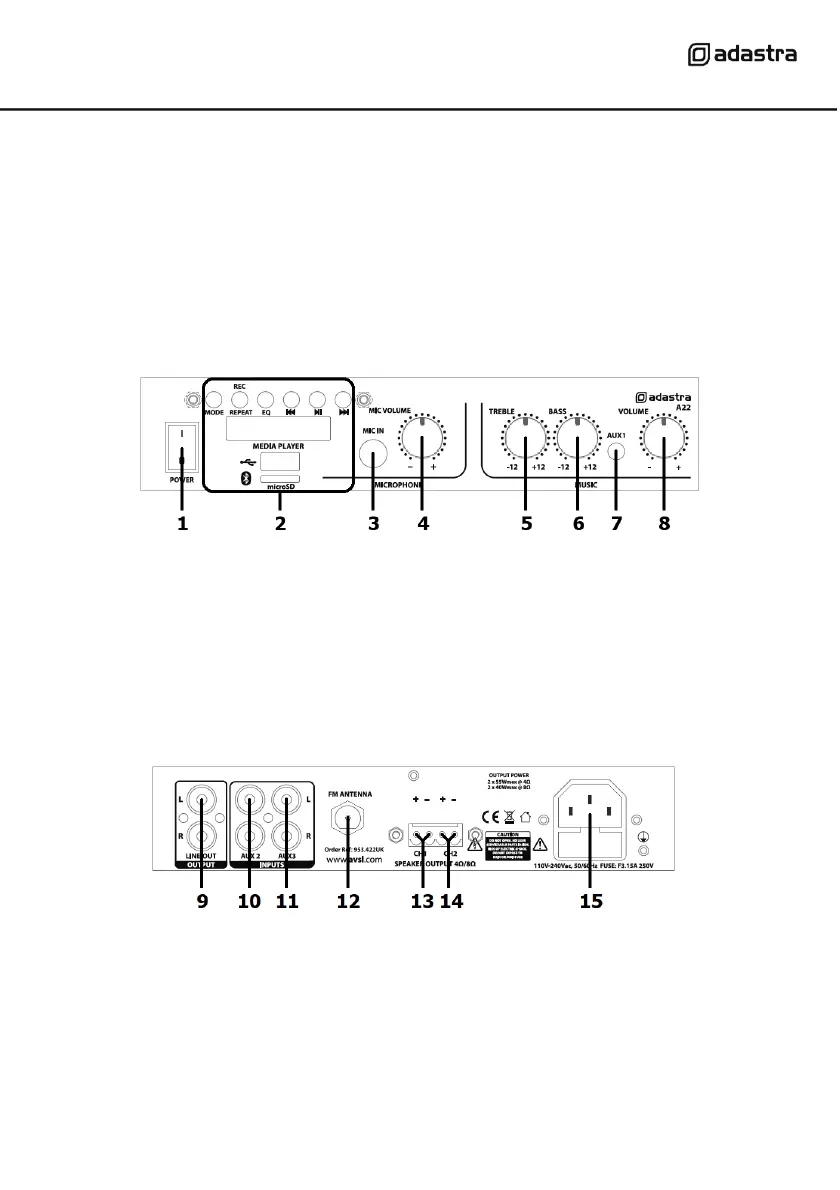

Front panel
1
Power on/off switch
5
Music TREBLE EQ control
2
Media player
6
Music BASS EQ control
3
Microphone input 6.3mm mono jack
7
AUX 1 input 3.5mm stereo jack
4
MIC VOLUME control
8
Music VOLUME control
Rear Panel
9
LINE OUT output L+R RCA
13
CH 1 speaker out +/- screw terminals
10
AUX 2 input L+R RCA
14
CH 2 speaker out +/- screw terminals
11
AUX 3 input L+R RCA
15
IEC mains power inlet and fuse holder
12
FM antenna connection F-type
