12704A Resistivity Chamber Operation Manual
A.2 Internal Connections for Volume/Surface Resistivity Measurements
A.2 Internal Connections for Volume/Surface Resistivity Measurements
The following figures show the internal connections for volume and surface resistivity meas-
urements.

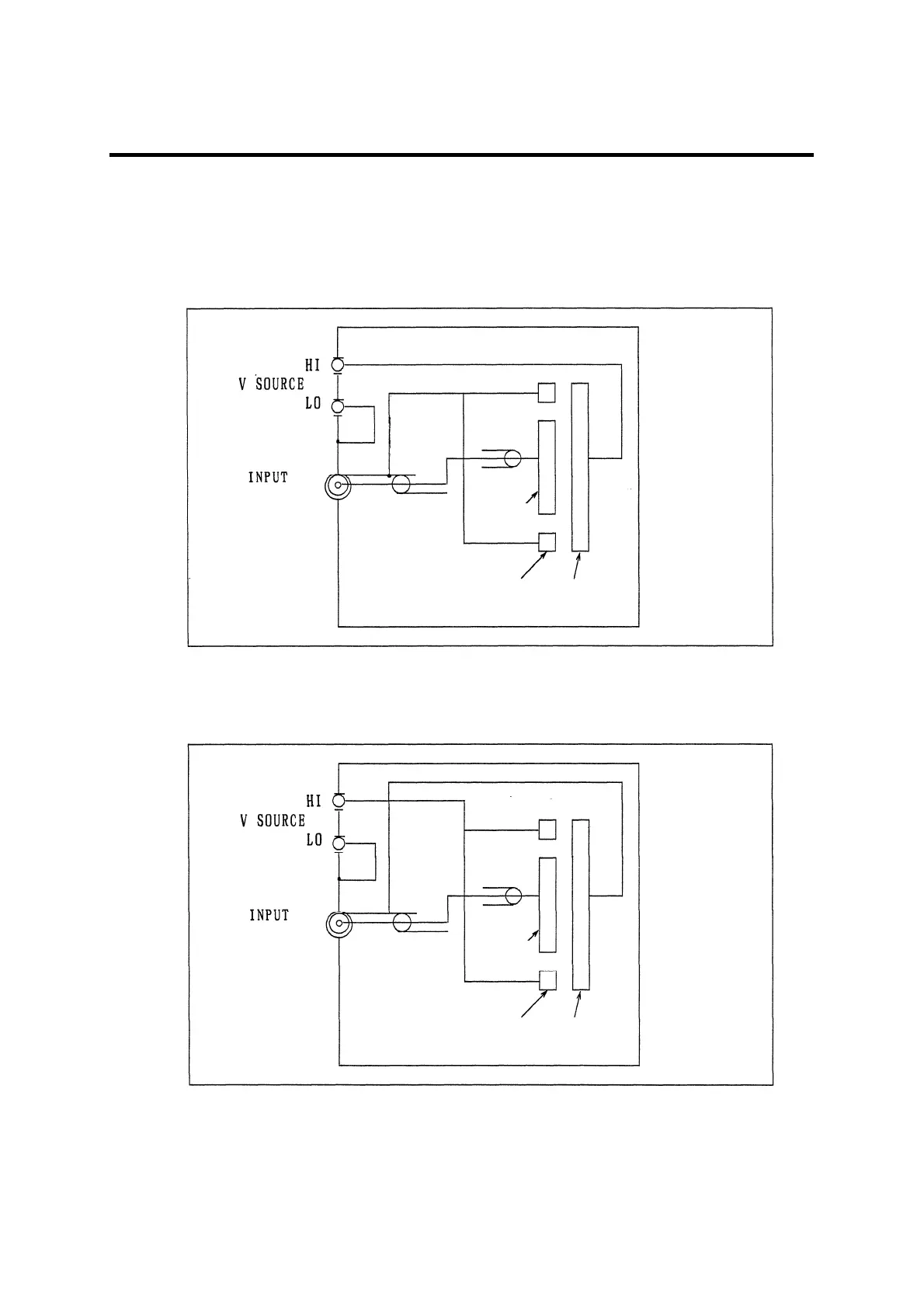

Figure A-2 Internal Connection for Volume Resistivity Measurement
Figure A-3 Internal Connection for Surface Resistivity Measurement
Main
electrode
Guar
electrode
Opposed
electrode
Main
electrode
Guar
electrode
Opposed
electrode
