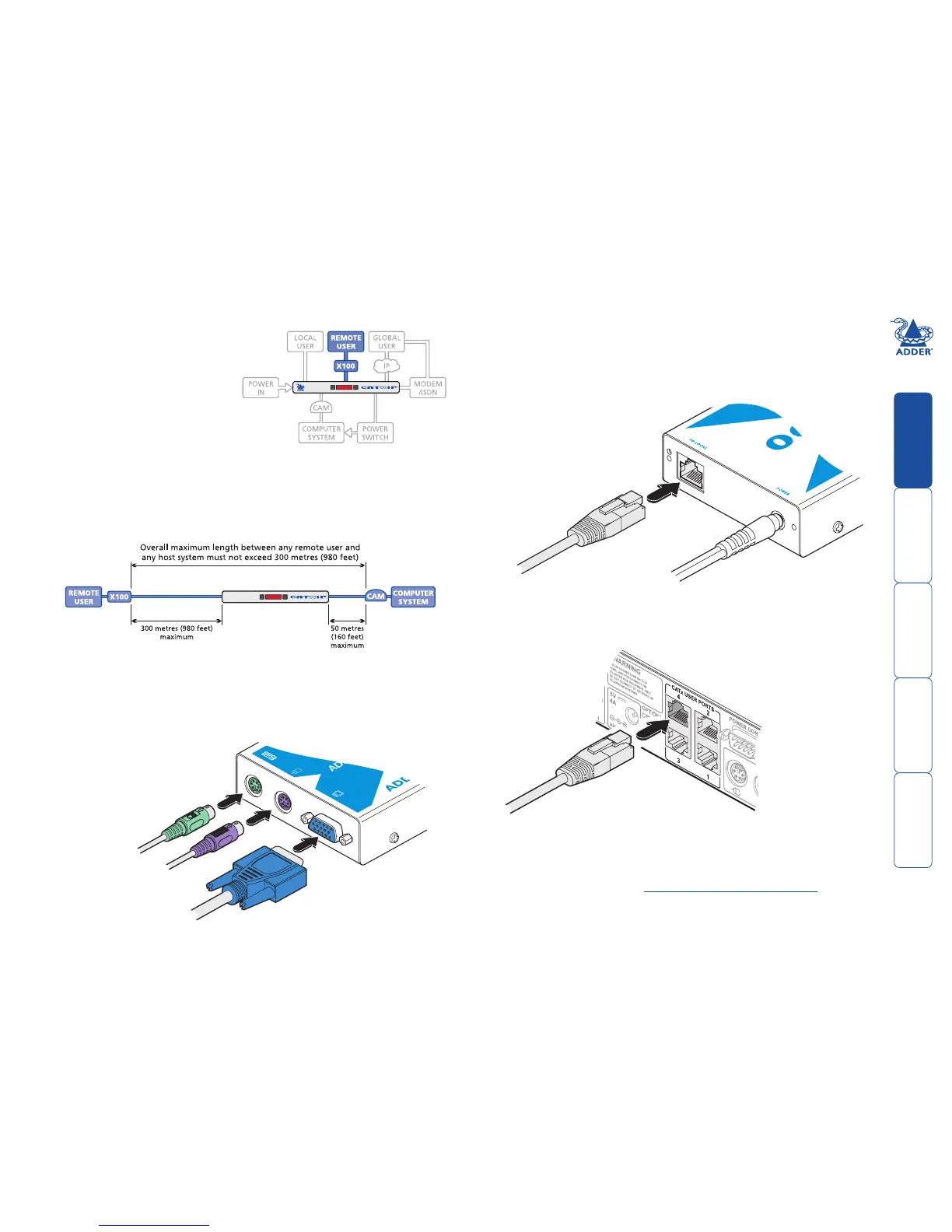

Remote user (via X100 extender)
Up to four users can be placed a
maximum of 300 metres (980 feet)
from the AdderView CATx unit.
Remote users are connected via an
Adder X100 extender module and
suitable category 5, 5e or 6 cabling
(with no crossover). The AdderView
CATx IP models provide two remote
user ports.
Cable lengths for remote user locations
The maximum length of cable between a remote user and the AdderView CATx
unit can be up to 300 metres (980 feet). However, bear in mind that the overall
distance between any remote user and any computer system must not exceed
300 metres (980 feet).
In situations where any computer system will be placed a signicant distance
from the AdderView CATx unit, ensure that the distance to any remote user is
similary less than 300 metres (980 feet).
To connect a remote user
1 Place an Adder X100 extender unit adjacent to the remote user location.
2 Attach the video monitor,
keyboard, mouse, power
adapter (and speaker)
connectors to the sockets
of the Adder X100
module.
3 Lay a suitable length of category 5, 5e or 6 cabling between the Adder X100
module and the AdderView CATx unit. Please refer to the section Cable
lengths for remote user locations opposite.
4 Attach the connector of the cable run to the socket of the Adder X100.
5 At the other end of the cable run, attach the cable connector to one of the
sockets labelled CATx USER PORTS on the rear panel of the AdderView CATx
unit.
From mouse
From keyboard
From video monitor
From power adapter
Category 5, 5e or
6 cable leading to
AdderView CATx unit
Category 5, 5e or 6 cable
from Adder X100 module
6 Where necessary, use the in-built video compensation feature of the Adder
X100 module to eliminate any effects caused by the cable run. However,
ensure that the links between the computers and the AdderView CATx have
been compensated rst. See remote user video compensation for details.
Adder X100
module
Adder X100
module
AdderView CATx
rear panel
Note: The AdderView
CATx model shown here
is a non-IP version. The
IP-version provides only
remote user ports 3
and 4.
