ADJ Products, LLC - www.adj.com - Focus Spot 6Z User Manual Page 8
Focus Spot 6Z Installation

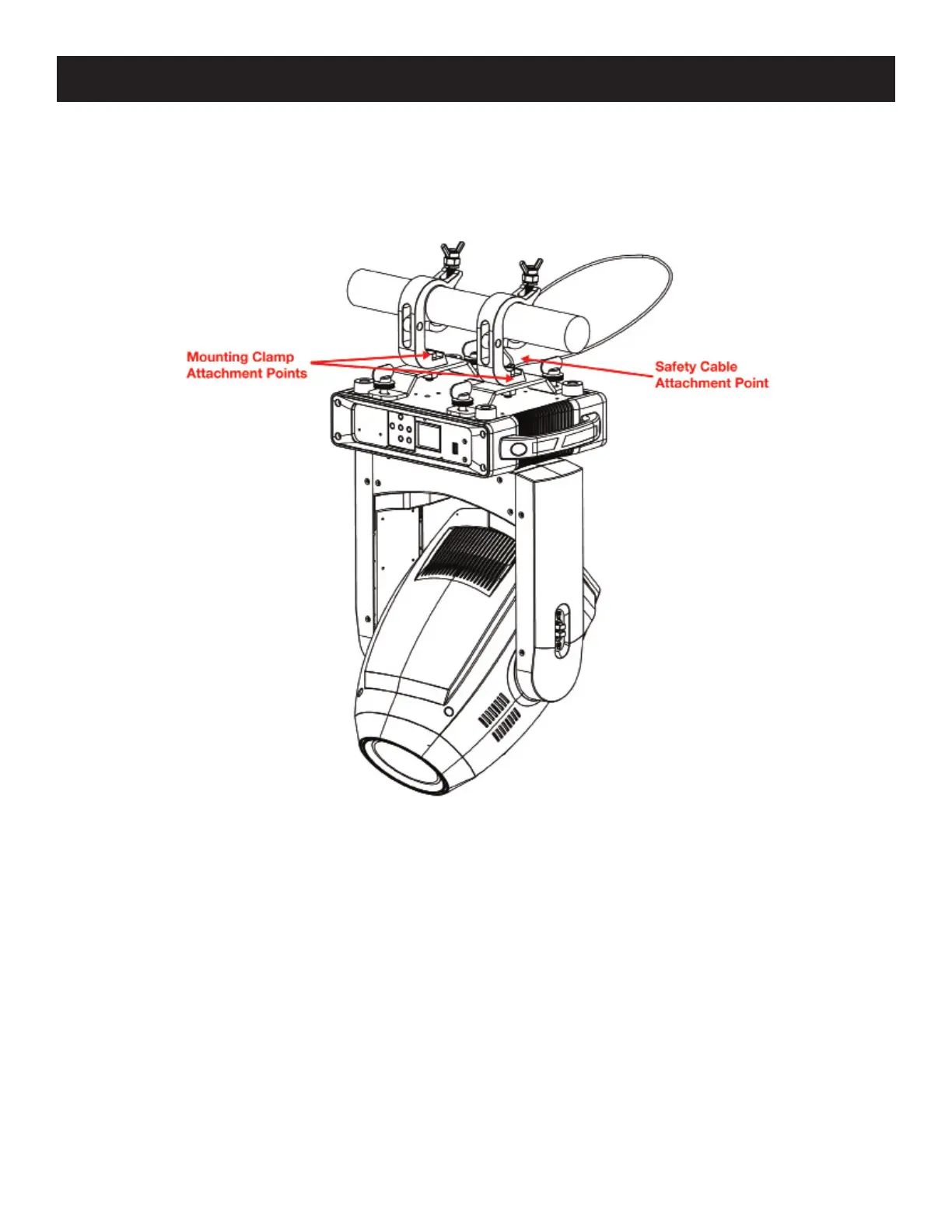

Screw one clamp each via a M12 screw and nut into the Omega bracket. Insert the quick-lock fasteners of
the Omega holder’s into the respective holes on the bottom of the Focus Spot 6Z. Tighten the quick-lock
fasteners fully clockwise. Pull the safety cable through the openings located on the base plate and
over the trussing system or a safe xation spot. Insert the end in the carabine and tighten the safety
screw.
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight
without any deformation. When installing the unit must be secured with a secondary safety attachment,
e.g. and appropriate safety cable. Never stand directly below the unit when mounting, removing, or
servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installation
material being used, and perodic safety inspection of all installation material and unit. If you lack
these qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
