Focus Spot 6Z Gobo Replacement
The gobo’s featured in this unit are interchangable. Remember when changing these gobos that they
are easily bent or damaged. Please perform this procedure with caution in order to avoid damaging
the gobos.
Caution! Never open the unit when in use. Always disconnect the main power before attempting to
change the gobos.

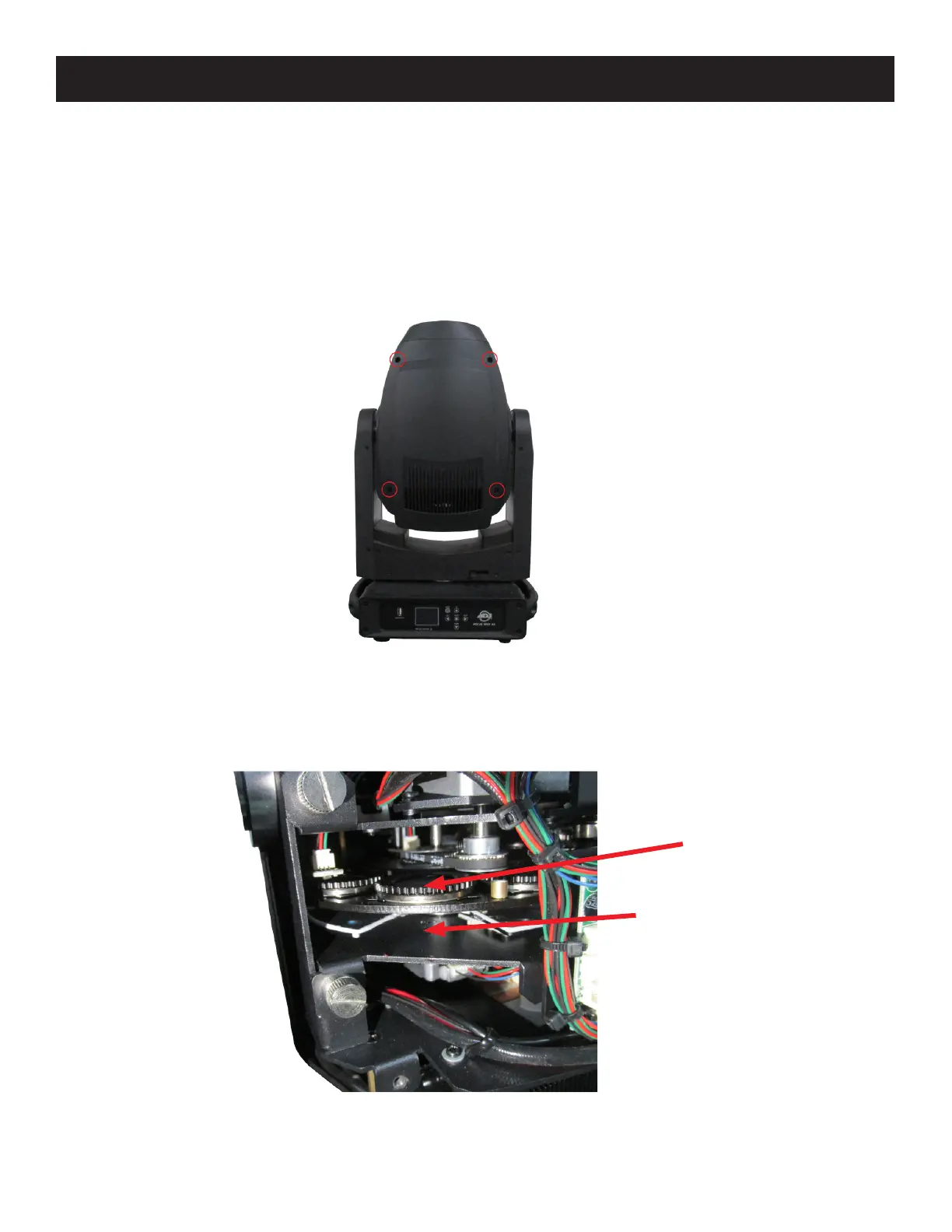

1. Engage both the pan and tilt locks. Unscrew the four (4) screws that secure the cover to the head,
then remove the safety clip that attaches near the bottom of the head and remove the cover.
2. Locate the gobo wheels and color wheels. They are positioned near the second large silver thumb
screw on each side of the head. Turn the color wheel to that the open slot is facing towards you,
and then turn the gobo wheel until the gobo you wish to replace is aligned with the open slot of
the color wheel.
ADJ Products, LLC - www.adj.com - Focus Spot 6Z User Manual Page 32
Gobo being
changed is aligned
to open slot in
color wheel
Open slot in color
wheel pointing
towards user
To Next Page
