Focus Spot 6Z Gobo Replacement
ADJ Products, LLC - www.adj.com - Focus Spot 6Z User Manual Page 33

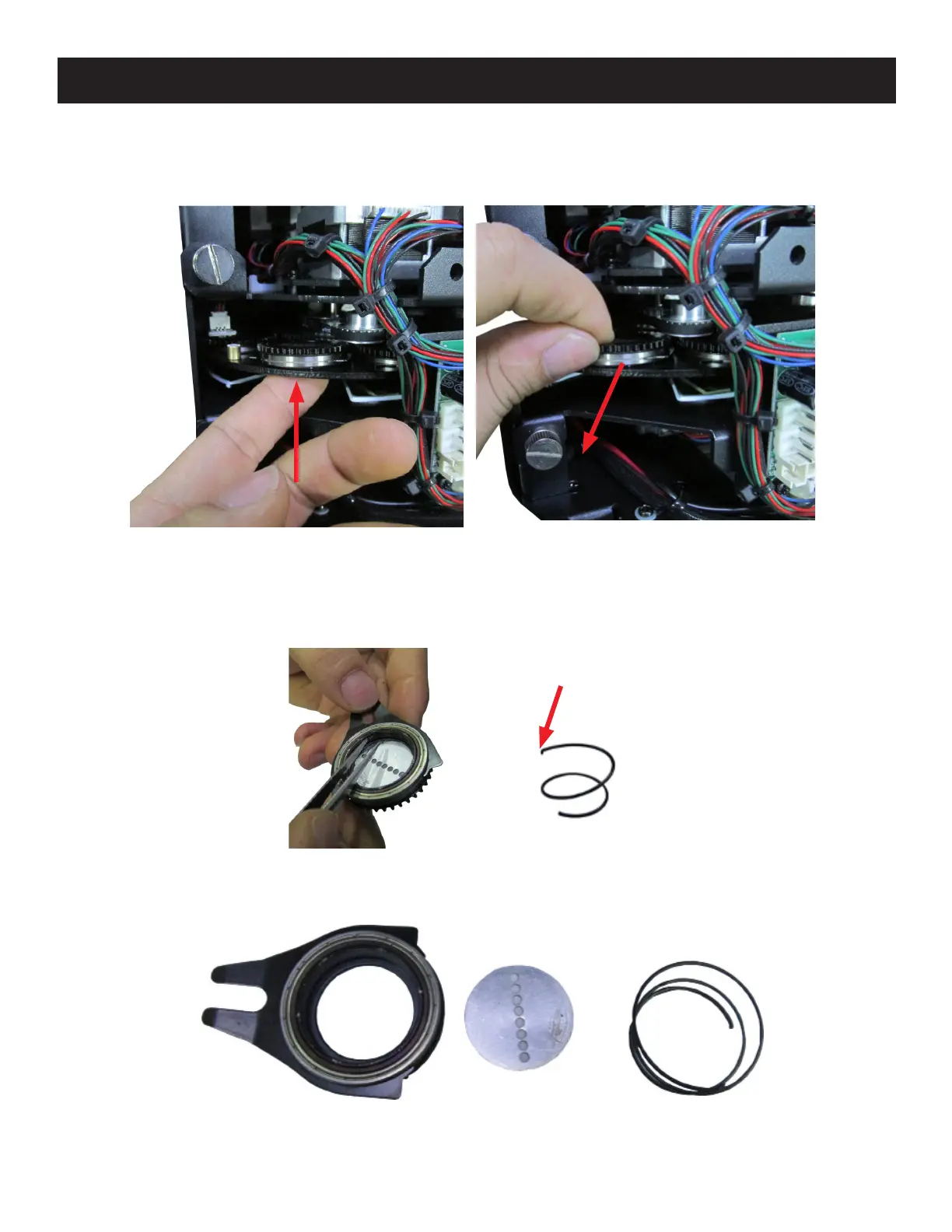

3. Gently push the gobo holder upwards from below (left). When the silver part of the gobo holder
clears the face of the gobo wheel, gently grasp the black geared portion of the gobo holder with
your fingers and pull the gobo holder away from the gobo wheel (right). The gobo holder should
come away easily. DO NOT USE EXCESSIVE FORCE WHEN PERFORMING THIS STEP!
4. Place the gobo holder with the black gear side down. Using a set of tweezers, remove the
retaining spring by grasping the end of the spring with the bent tip (right).
BENT TIP OF SPRING
5. Remove both the retaining spring and the gobo from the gobo holder.
