Focus Spot 6Z Gobo Replacement
ADJ Products, LLC - www.adj.com - Focus Spot 6Z User Manual Page 34

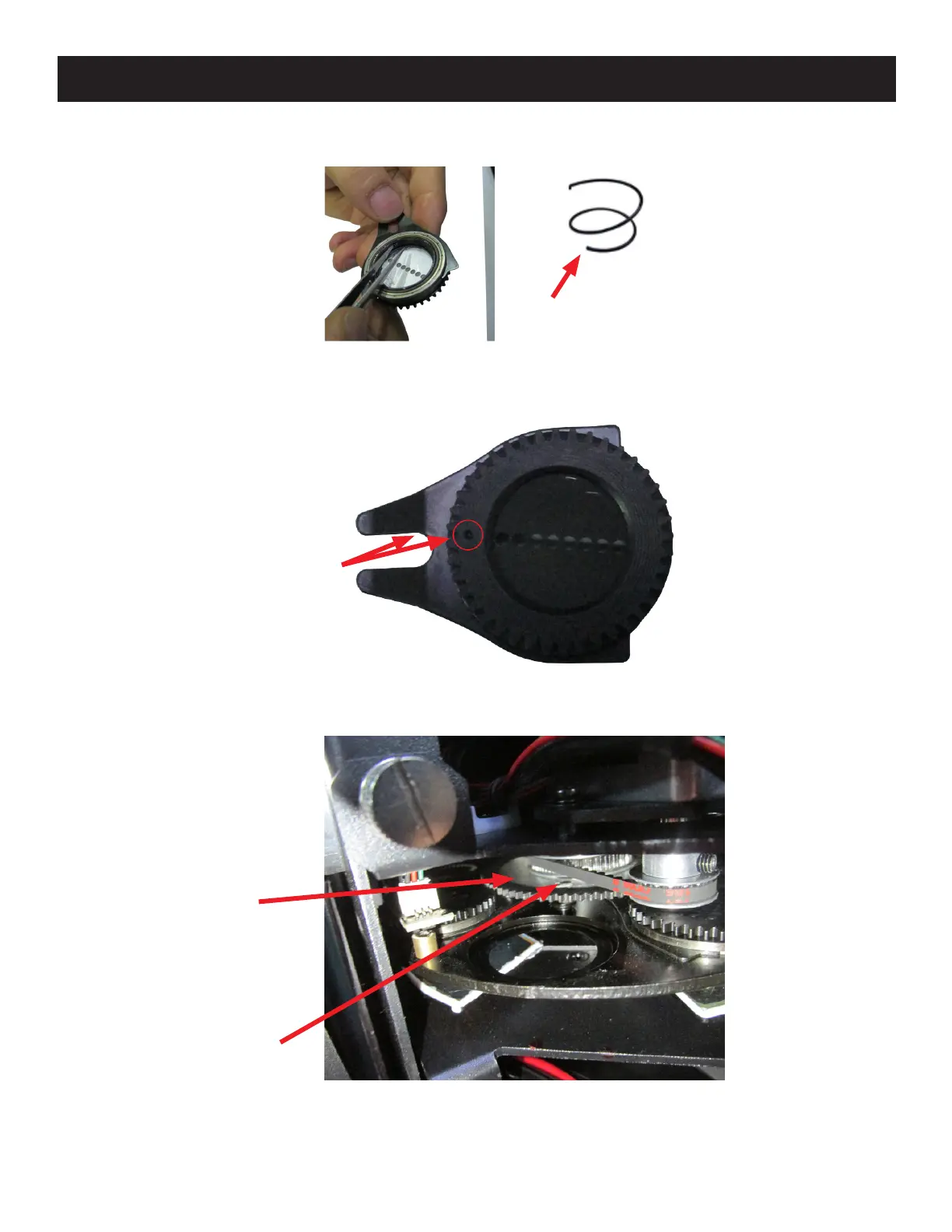

6. Place the new gobo in the gobo holder with the black side facing downward. Re-install the
retaining spring with the un-bent end of the spring in contact with the gobo.
UN-BENT TIP OF SPRING
7. Turn the gobo holder over so that the black geared side is facing you. Rotate the geared portion of
the gobo holder until the mark on the face of the geared portion is aligned with the clip of the
gobo holder.
MARK ON GEARED
PORTION ALIGNED
WITH CLIP
8. Locate the large gear on the gobo wheel that meshes with the geared parts of the gobo holders.
Rotate the gobo wheel to turn this large gear until the small, circular magnet on this large gear in
pointing outwards.
LARGE GOBO
WHEEL GEAR
MAGNET
