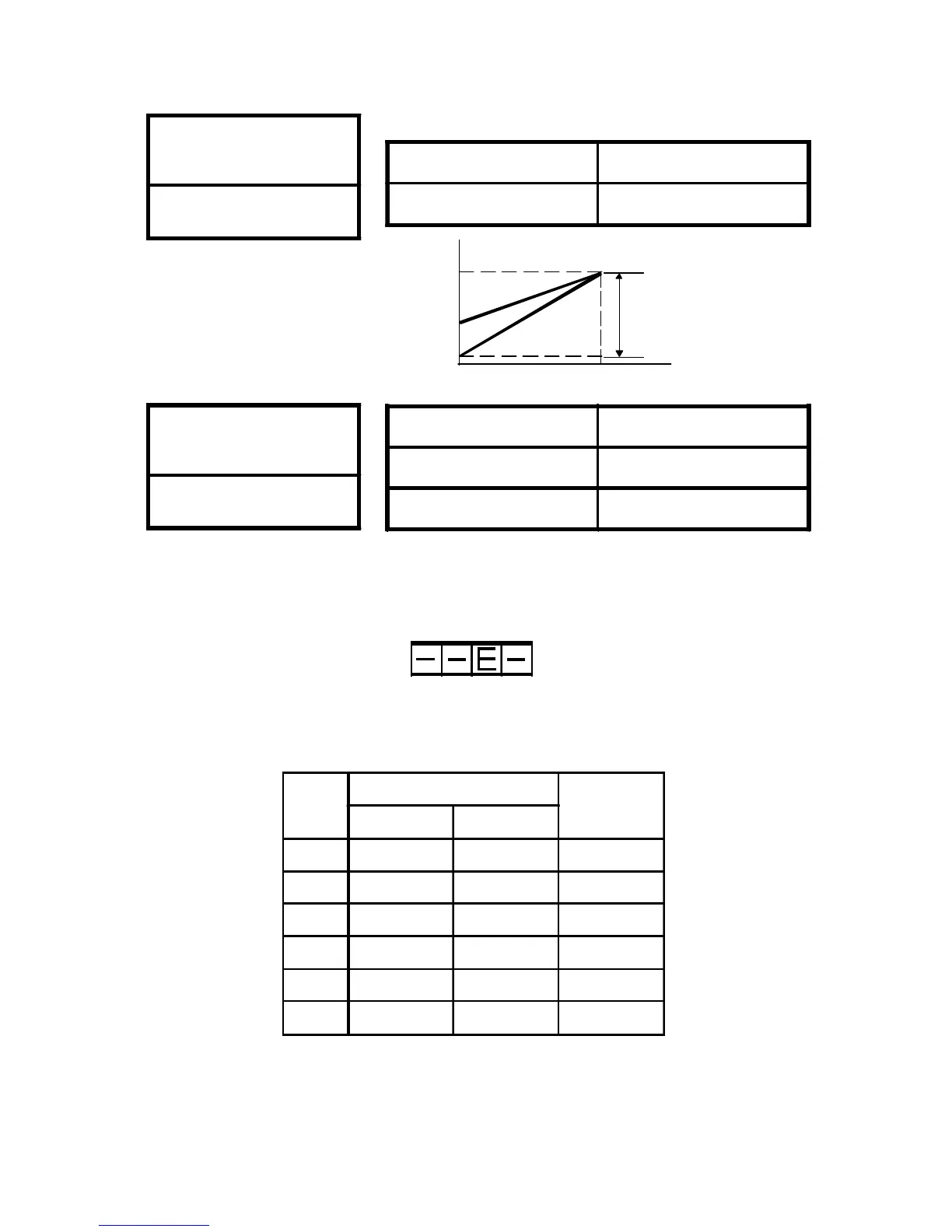

Minimum frequency
limit
CD15
Max
F
400HZ
Speed command
0HZ
Frequency display
scale
CD16
Use the following equation to calculate the mechanical shaft speed in
rpm.
RPM = HZ Scale setting
When RPM > 9999 display for over range warning. On
this condition.
Setting CD41=1 for display shown RPM.
Scale for various motors
30
Setting Range 0.00 ~ 400.00HZ
Default Value 0.00HZ
Setting Range 0.01 ~ 500
60HZ region 1.00
50HZ region 30.00
×
Pole
Synchronous speed
Scale
setting
50HZ 60HZ
2 3000 3600 60
4 1500 1800 30
6 1000 1200 20
8 750 900 15
10 600 720 12
12 500 600 10
