IRF2000 series - standard Doc v2.7 28

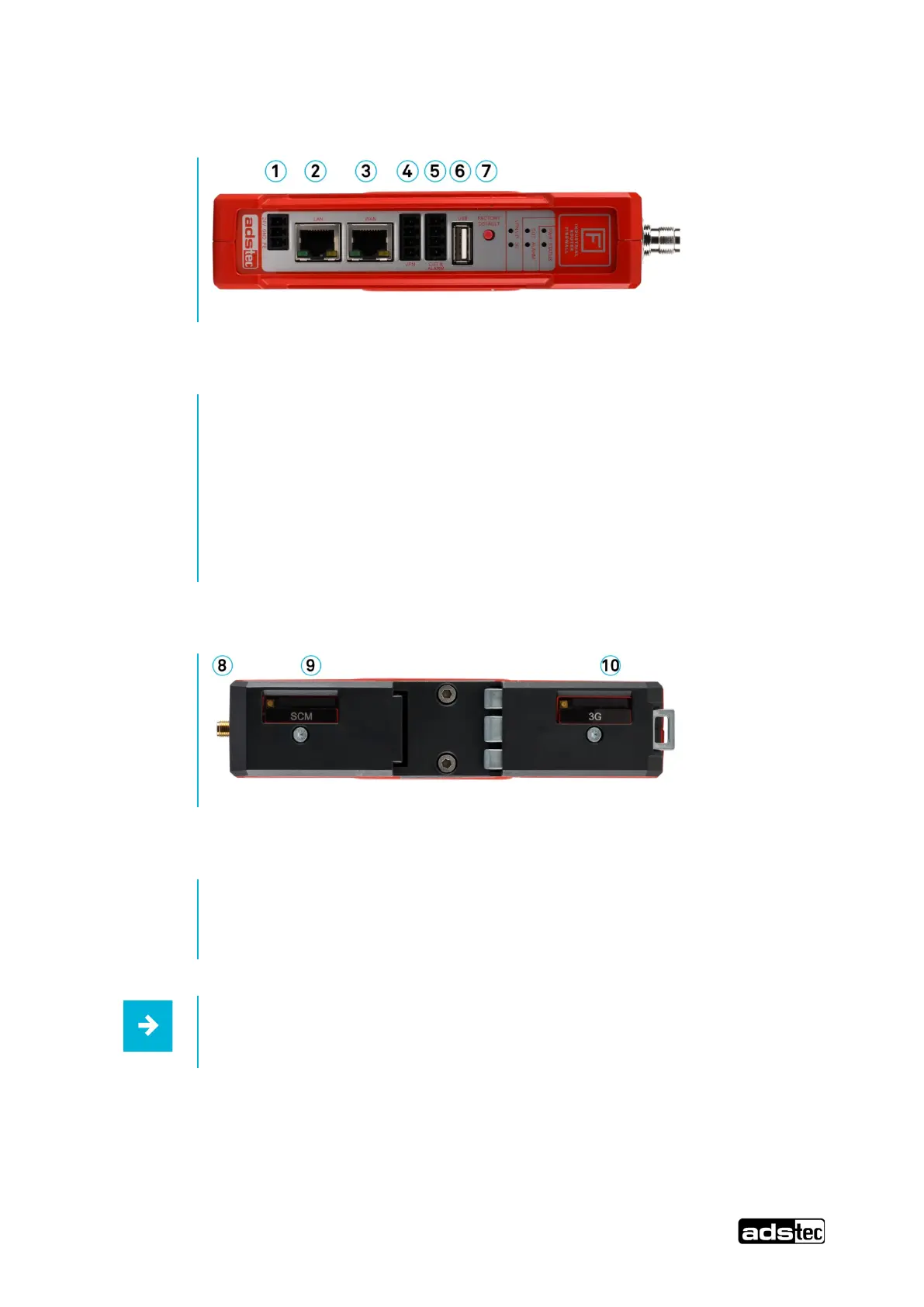

6.3 Interface overview IRF22xx

Fig. 7

The device is equipped with the following interfaces (front):

1. Power (24 VDC power supply (3-pin plug))

2. LAN RJ45

3. WAN RJ45

4. VPN (4-pin plug)

5. CUT & ALARM (4-pin plug)

6. USB 2.0

7. Factory Default push button

The device is equipped with the following interfaces (rear):

Fig. 8

8. Antenna(s)

9. SCM card reader (read in/out the ADS-TEC memory cards)

10. 3G/4G card reader (mobile phone)

Recommendation for use:

All input voltages can be connected redundantly
