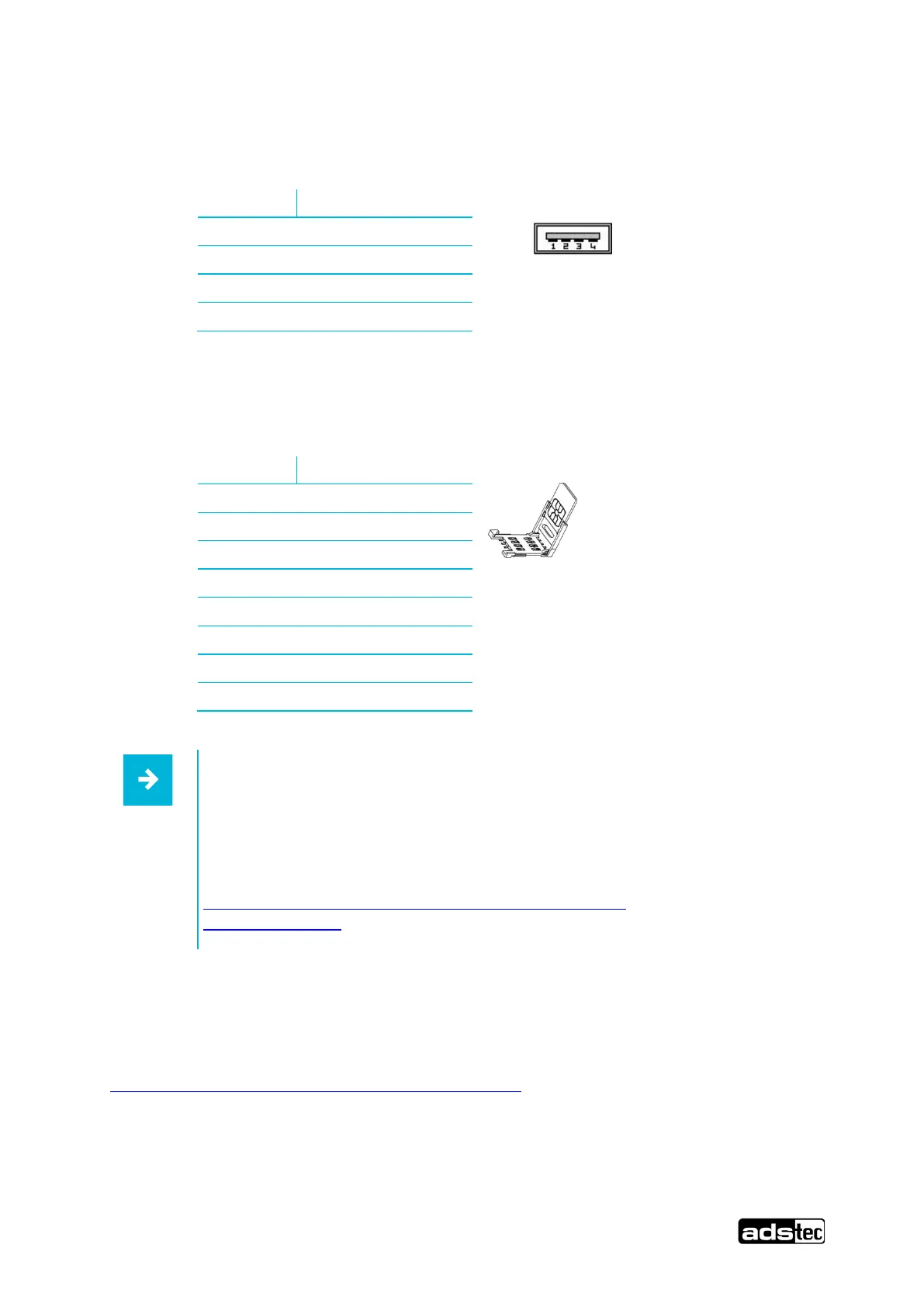

IRF2000 series - standard Doc v2.7 34

6.4.7 USB connections

The USB interfaces comply with the USB 2.0 standard.

Pin Signal

1 VDC

2 D -

3 D +

4 GND

6.4.8 Smartcard reader in accordance with ISO 7816

The smartcard reader is used to store configuration data.

Pin Signal

1 VCC 5 volt

2 RESET

3 CLOCK

4 NC

5 GND

6 NC

7 I/O

8 NC

Recommendation for use:

Configurations of a device can be saved using the Smartcard. If service is

required, the saved configuration can be transferred to the new device. The

setup procedure does not need to be repeated.

Further information can be found at:

http://www.ads-tec.de/industrial-it/firewalls-und-router/irf2000-

serie/download.html

Complex IT infrastructures with a large number of devices can be managed, monitored and controlled

easily and conveniently using Big-LinX. The Smartcard is available in the package with Big-LinX or as

an individual accessory part. Further information on Big-LinX can be found at:

http://www.ads-tec.de/industrial-it/cloud-big-linx/big-linx.html
