ADT 3000EN User Manual

– 31 –
CLASS 2 PLUG-IN TRANSFORMER
16.5VAC, 25VA
(e.g. ADEMCO No. 1321).
(USE No. 1321CN IN CANADA)
TO 110VAC 
UNSWITCHED
OUTLET (24HR) 
THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE NATIONAL FIRE PROTEC TION ASSOC IATIO N 'S STANDARD 72, CHAPTER 11 (NATIONAL FIRE PROTECTION ASSOCIATION, BATTERY-MA R CH PA R K, QUI NCY,MA 0216 9 ). PRIN T ED I N FORM ATION DESC R IBIN G  PROPER INSTALLATION, OPERATION,TESTING, MAINTENANCE, EVACUATION PLANNING AND REPAIR SERVICE IS TO BE PROVIDED WITH THIS EQUIPMENT.
24-HR BATTERY STANDBY REQUIRED FOR FIRE INSTALLATIONS. USE 12V, 17.2AH BATTERY FOR 600mA AUX POWER. SEE INSTRUCTIONS. BATTERY CAPACITY FOR EMERGENCY BURGLARY STANDBY USE AT LEAST 4 HRS
USE UL LISTED LIMITED ENERGY CABLE FOR ALL CONNECTIONS
USE 1361X10 TRANSFORMER  INTERFACE IN PLACE OF 1321 OR
1321CN WHEN POWER LINE CARRIER DEVICES ARE BEING USED. (SEE INSTRUCTIONS FOR CONNECTIONS)
**FOR COMPLETE INFORMATION,
SEE INSTRUCTIONS K5305V3
OR LATER. 
ALARM OUTPUT
10.5–13.8VDC, 2A MAX.
(600mA MAX. FOR UL
USAGE, INCLUDING
AUX POWER) STEADY
FOR BURGLARY/PANIC,
TEMPORAL PULSE
SOUNDING FOR FIRE.
CAN USE ADEMCO
No. 702 SIREN, OR
12V BELL. SEE
INSTRUCTIONS**.
CHARGING VOLTAGE 13.8VDC. MAXIMUM CHARGING CURRENT 650mA.
BATTERY
12V, 4AH

+

+
BLACK
RED
SEALED LEAD-ACID TYPE. BATTERY NORMALLY NEED NOT BE REPLACED FOR AT LEAST 3 YRS.
TO DETERMINE TOTAL STANDBY LOAD ON BATTERY, ADD 100mA TO TOTAL OF AUX. POWER OUTPUT AND REMOTE TOUCHPAD CURRENTS. 
CONNECTION OF THE FIRE ALARM SIGNAL TO A FIRE ALARM HEADQUARTERS OR A CENTRAL STATION SHALL BE PERMITTED ONLY WITH THE PERMISSION OF THE LOCAL AUTHORITY HAVING JURISDICTION. THE BURGLAR ALARM SIGNAL SHALL NOT BE CONNECTED TO A POLICE EMERGENCY NUMBER.
OPTIONAL
FOR UP TO 40 ADDITIONAL ZONES
( FROM EITHER OR BOTH GROUPS) 
BLK RED GRN YEL
7
21 22 23 24 25
EARTH  GROUND SEE  INSTRUCTIONS** FOR PROPER GROUNDING 
TELEPHONE WIRING
(VIA RJ31X* JACK AND DIRECT CONNECT CORD) *CA38A IN CANADA
DOC LOAD NO.: 3
RED: TOUCHPAD PWR ( + )
GREEN: DATA IN FROM TOUCHPAD
YELLOW: TOUCHPAD DATA OUT
BLK
RED
GRN
YEL
TO TERM 4 TO TERM 5 TO TERM 6 TO TERM 7
BLK RED GRN YEL
RING
(GRAY)
TIP
(GREEN)
RING
(RED)
INCOMING
PHONE LINE
HANDSET
ZONE 1
ZONE 2
HI
LO
HI
LO
ZONE 4
HI
LO
HI
LO
ZONE 5
ZONE 6
ZONE 7
ZONE 8
• 
MAX. LOOP RESISTANCE: (EACH ZONE) 300 OHMS (PLUS EOLR)
• 
• 
RESPONSE, ZONES 1-8: 10, 350, OR 700 MSEC (PROGRAMMABLE)
8-PIN CONNECTOR
USED FOR 1361X10
TRANSFORMER
CONNECTIONS AND FOR
ON-BOARD TRIGGERS
SEE INSTRUCTIONS.
7 8
(USE SA4120XM-1
CABLE)
TIP
(BROWN)
}
}
COMPLIES WITH FCC RULES, PART 68. FCC REGISTRATION NO. 5GBUSA-44003-AL-E RINGER EQUIVALENCE: 0.1B.
WEEKLY TESTING IS REQUIRED TO ENSURE PROPER
OPERATION OF THIS SYSTEM. IN ADDITION, THIS
SYSTEM MUST BE CHECKED BY A QUALIFIED
TECHNICIAN AT LEAST ONCE EVERY
THREE (3) YEARS.
CAN BE USED FOR 2-WIRE SMOKE DETECTORS
RED JUMPER CUT FOR BELL SUPERVISION. ALSO, CONNECT 2000 OHM RESISTOR DIRECTLY ACROSS SOUNDER.
FOR CONNECTION OF OPTIONAL
4286 VIP MODULE TO PHONE
TERMINALS, SEE INSTRUCTIONS.**
REMOTE TOUCHPADS EACH PARTITION CAN USE 6150ADT OR 6160ADT TOUCHPADS. SEE INSTRUCTIONS PROVIDED WITH TOUCHPAD. LOCAL  PROGRAMMING MUST BE DONE WITH A 6160ADT BUT NEED NOT REMAIN IN THE SYSTEM (SET TO ADDRESS 16).
2000 
OHMS
EOLR
SAFEWATCH PRO 3000EN
ENTREPRENEUR 3000EN
SECURITY MANAGER 3000EN
SUMMARY OF CONNECTIONS
SYNC
COM
DATA
TO TRANS.
GND
+12 AUX
10
9
6
1 2 3 4 5 6
OUTPUT 18
(TRIG. 2)
OUTPUT 17
(TRIG. 1)
ALL DEVICES AND
ACCESSORIES
USED IN A CANADIAN
INSTALLATION MUST BE
LISTED FOR USE IN
CANADA
3A
SET RECEIVER’S DIP SWITCH FOR DEVICE ADDRESS OF “0”. SEE INSTRUCTIONS.
SET UNIT’S DIP SWITCH FOR DEVICE ADDRESSES 7 - 15. SEE INSTRUCTIONS. 
MAXIMUM NUMBER OF 2-WIRE SMOKE DETECTORS ON ZONE 1 IS 16; DETECTORS MUST HAVE COMPATIBILITY IDENTIFIER AS "A".
POWER SHUTDOWN NOTE: SYSTEM SHUTS DOWN SENSOR DETECTION PROCESSING IF CONTROL'S VOLTAGE DROPS BELOW 9.6V.
4-WIRE SMOKE DETECTOR CONNECTIONS
+
+
2000 OHMS EOLR
HEAT
DETECTOR
RED
EOL POWER SUPERVISION RELAY MODULE A77-716B. USE N.O. CONTACT, WHICH CLOSES WHEN POWER IS APPLIED.
VIOLET
AUX PWR
OUTPUT
TERMINALS
5
4
_
_
+
BLK 
_
TO ZONE TERM. ( )
TO ZONE TERM. ( )
RELAY
CONTACT OPENS MOMENTARILY UPON FIRE ALARM RESET
PROGRAM RELAY
AS ZONE TYPE 54
(FIRE ZONE RESET)
_
+
4-WIRE SMOKE
OR COMBUSTION
DETECTOR
N.C.
N.O.
TO OUTPUT 17
PROGRAM OUTPUT 17 FOR
"OUT NORM LOW" = YES IN
79 MENU MODE AND AS ZONE
TYPE 54 IN 80 MENU MODE
MAX. CURRENT = 100 mA
OR
ADEMCO 5881* Type
RF RECEIVER
WIRELESS ZONES
*5882 IN CANADA
ADEMCO No. 4219
WIRED EXPANSION MODULE
(8 ADD'L EOLR WIRED ZONES)
-OR-
ADEMCO No. 4229
WIRED EXPANSION/RELAY MODULE
(8 ADD'L EOLR WIRED ZONES PLUS 2
OUTPUT RELAYS)
-OR-
ADEMCO No. 4204 RELAY MODULE
(4 OUTPUT RELAYS)
AND/OR
5881L: UP TO 8 5881M: UP TO 16 5881H: UP TO 64 (48+16 BUTTONS)
BLACK: TOUCHPAD GROUND (- ) RETURN
NOTE: TOUCHPADS (S) CURRENT (IN BOTH PARTITIONS) AND ALL OTHER DEVICES DRAWING POWER FROM TERMS 4 & 5 MUST BE INCLUDED IN  AUX CURRENT DRAIN CALCULATIONS.
AUX. POWER
OUTPUT
10.5-13.8VDC
600mA MAX.
(500mA MAX.
FOR UL
INSTALLATIONS)
ALL OUTPUTS
ARE POWER
LIMITED.

+
}
BLK
5
REMOTE
TOUCHPADS
AND OTHER
ADDRESSABLE
DEVICES
(e.g. 5800TM,
4285/4286, LRR,
4219, 4229,
4204, 5881)
(USE EOLR PART NUMBER P4100,
PART OF KIT SAHDWR1)
**
** **
**
CIRCUIT
(ZONE)
CONTROL UNIT
DELAY-SEC
SMOKE DETECTOR
MODEL DELAY-SEC
USE THE DELAY TIME MARKED ON THE INSTALLED DETECTOR(S).
WARNING: ALARM VERIFICATION, IF USED, DELAYS ALARM SIGNALS FROM THE INDICATED FIRE CIRCUITS. DO NOT EXCEED 60 SECONDS OF TOTAL DELAY (CONTROL UNIT PLUS SMOKE DETECTORS). DO NOT CONNECT OTHER INITIATING DEVICES TO THESE CIRCUITS UNLESS APPROVED BY THE LOCAL AUTHORITY HAVING JURISDICTION.
1 2
3
4
ZONE 3
HI
LO
HI
LO
2000 
OHMS
EOLR
2000 
OHMS
EOLR
2000 
OHMS
EOLR
2000 
OHMS
EOLR
2000 
OHMS
EOLR
2000 
OHMS
EOLR
2000 
OHMS
EOLR
8
11
12
14
13
HI
LO
HI
LO
17
16
15
20
18
19
FLYING LEADS FOR BATTERY CONNECTION
Zn 1 Output 17
7 secs 3 secs
WARNING:
TO PREVENT RI SK OF SHOCK ,
DISCO NN ECT TELEPHONE L INE AT TE LC O JACK BEFO RE SERVICING THIS UNIT.
BATTERY FUSE (IF IN STALLE D) FOR RE PLAC EMENT, USE SAME VALUE (e.g. ADEMCO No. 90-12)
FUSE NOTE MAY HAVE P TC IN PLACE OF FUSE.
SW3000EN-SOC-V0

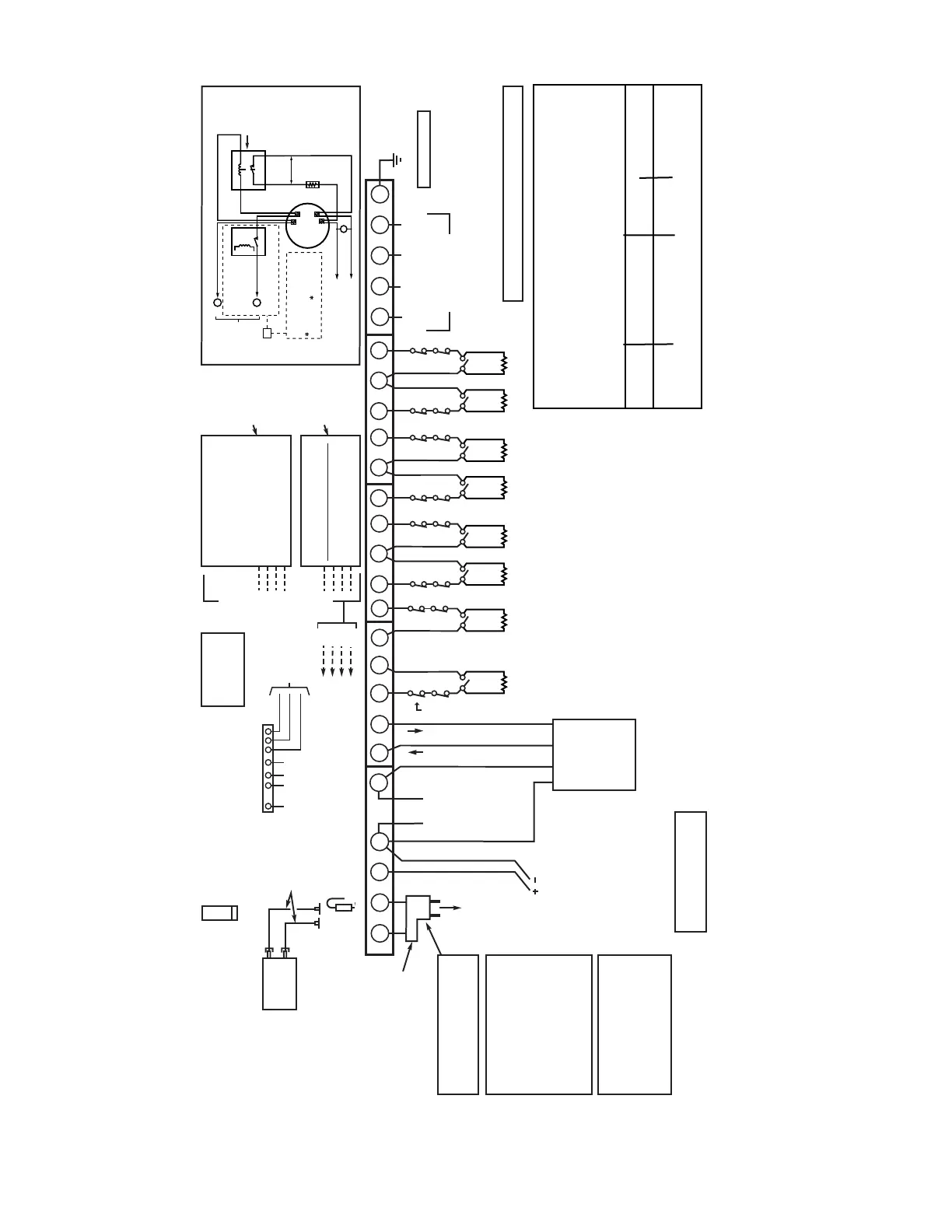

Summary of Connections
