Option Modules NetVanta 5305 Hardware Installation Guide
22 Copyright © 2010 ADTRAN, Inc. 61200990L1-34N
NetVanta T3 Wide Module (P/N 1200832L1)
The NetVanta T3 Wide Module (shown in Figure 5) provides a T3 interface with a dual BNC for the
NetVanta 5305. The T3 connection provides a full unchannelized T3 interface that provides a connection to
the wide area network (WAN). Up to two T3 Wide Modules may be used simultaneously in the
NetVanta 5305 chassis. The T3 Wide Module may be installed in any slot (1 through 6). Table A-3 on page 34
gives the pinouts for this module.

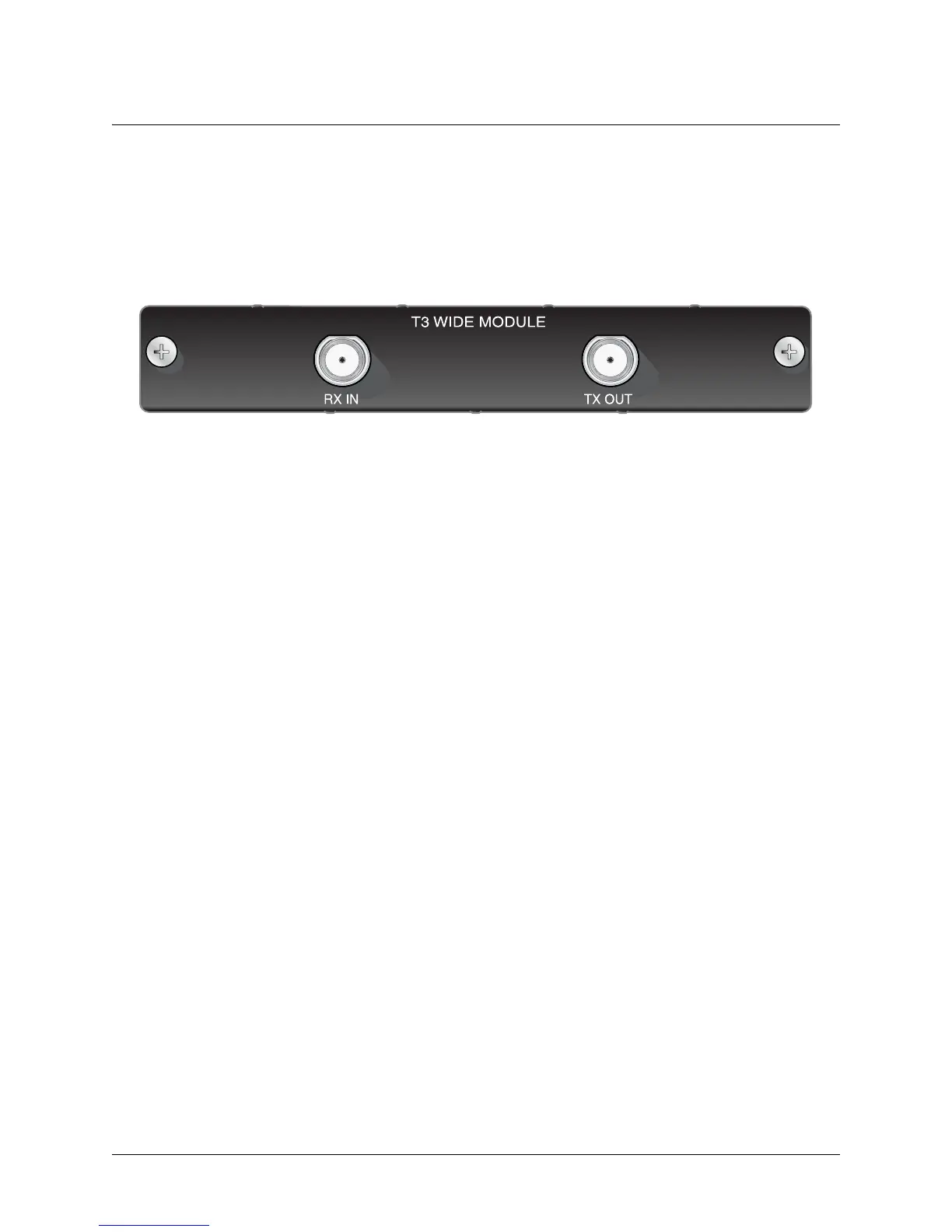

Figure 5. NetVanta T3 Wide Module
Features and Specifications
Interface
• DS3 electrical (coax) interface
• Line Rate: 44.736 Mbps
• Line Code: Bipolar three zero substitution (B3ZS)
• Framing: M13 or C-bit
• Connector: Dual BNC (1 receive, 1 transmit)
Compliance
• EMC - see Electromagnetic Compatibility (EMC) Table on page 6.
• UL/CUL 60950
• EN 60950
• IEC 60950
• AS/NZS 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent, noncondensing
Physical
• Dimensions: 5.63-inch W x 8.63-inch D
